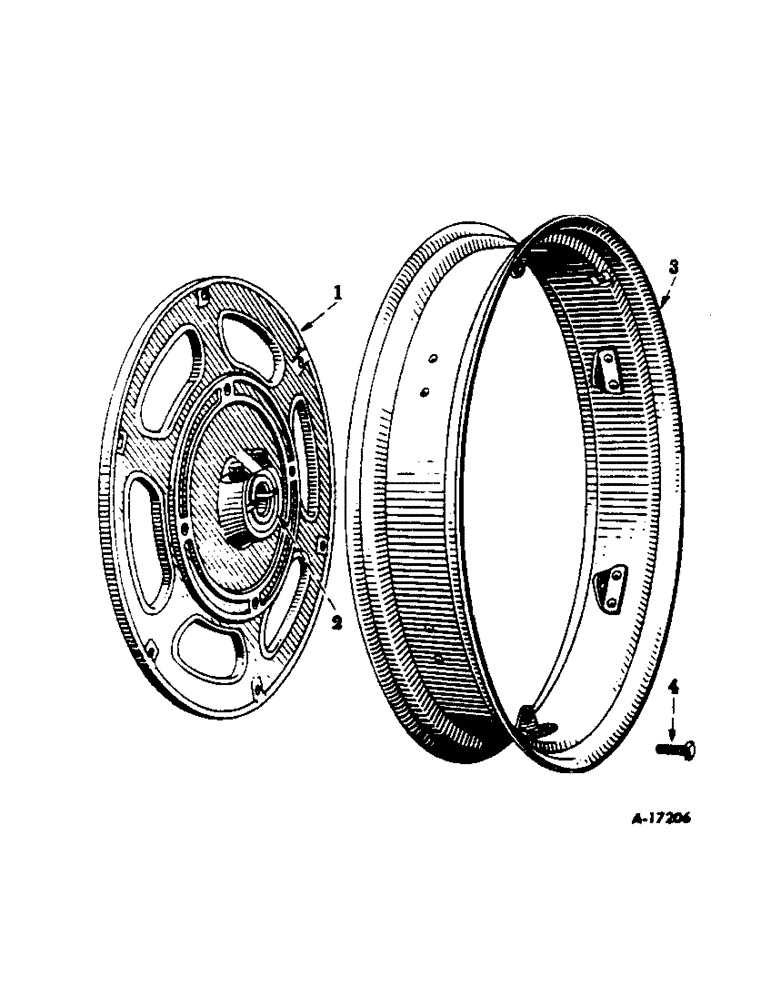

Запчасти Case IH FARMALL C (134) - CHASSIS, REAR WHEEL (12) - CHASSIS

1

351244R2

WHEEL, rear

2шт.

2

351246R1

COLLAR CLAMP

CLAMP, rear wheel hub

2шт.

362618R1

CAPSCREW

SCREW, cap, hex-hd., 3/4-10 NC x 3-3/4"

8шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

8шт.

575813R1

WASHER

plain, 25/32 I.D. x 1-1/4" O.D. x 11 ga.

8шт.

3

351243R91

RIM, rear wheel, w/clamps (Standard) (W6-36 rim for 7-36 tire)

2шт.

3

351664R91

RIM, rear wheel, w/clamps (Special) (W7-36 rim for 8-36 tire)

2шт.

3

351665R91

RIM, rear wheel, w/clamps (Special) (W8-36 rim for 8-36 or 9-36 tire)

2шт.

3

352806R92

RIM, rear wheel, w/clamps (Special) (W9-36 rim for 10-36 or 11-36 or 11.2-36 tire)

2шт.

4

351245R1

BOLT (MACHINE),Wheel, 5/8" - 18 x 2"

BOLT, rear wheel rim

12шт.

357099R2

NUT

rear wheel rim

12шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

356175R92

WHEEL, rear, w/W6-36 rim, assembly, Composed of

1шт.

351245R1

BOLT (MACHINE),Wheel, 5/8" - 18 x 2"

BOLT

6шт.

351246R1

COLLAR CLAMP

CLAMP

1шт.

357099R2

NUT

6шт.

351243R91

RIM

1шт.

362618R1

CAPSCREW

SCREW

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

575813R1

WASHER

4шт.

351244R2

WHEEL

1шт.

356176R92

WHEEL, rear, w/W7-36 rim, assembly, Composed of

2шт.

351245R1

BOLT (MACHINE),Wheel, 5/8" - 18 x 2"

BOLT

6шт.

351246R1

COLLAR CLAMP

CLAMP

1шт.

357099R2

NUT

6шт.

351664R91

RIM

1шт.

362618R1

CAPSCREW

SCREW

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

575813R1

WASHER

4шт.

351244R2

WHEEL

1шт.

356177R92

WHEEL, rear, w/W8-36 rim, assembly, Composed of

3шт.

351245R1

BOLT (MACHINE),Wheel, 5/8" - 18 x 2"

BOLT

6шт.

351246R1

COLLAR CLAMP

CLAMP

1шт.

357099R2

NUT

6шт.

351665R91

RIM

1шт.

362618R1

CAPSCREW

SCREW

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

575813R1

WASHER

4шт.

351244R2

WHEEL

1шт.

356178R93

WHEEL, rear, w/W9-36 rim, assembly, Composed of

2шт.

351245R1

BOLT (MACHINE),Wheel, 5/8" - 18 x 2"

BOLT

6шт.

351246R1

COLLAR CLAMP

CLAMP

1шт.

357099R2

NUT

6шт.

352806R92

RIM

1шт.

362618R1

CAPSCREW

SCREW

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

575813R1

WASHER

4шт.

351244R2

WHEEL

1шт.
