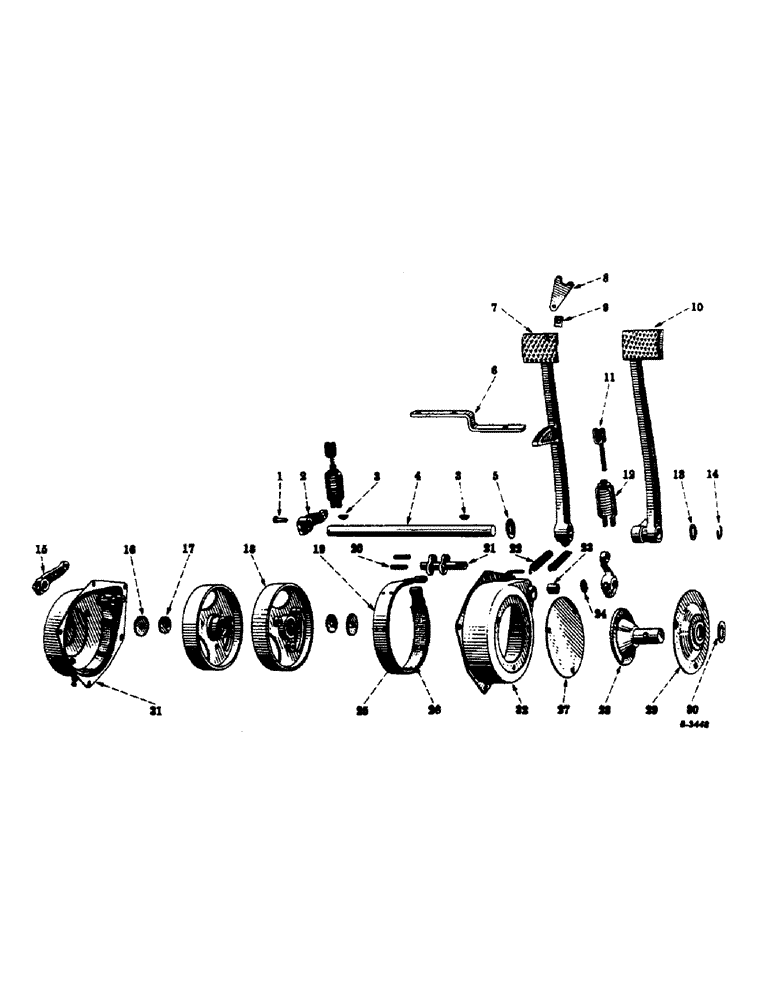

Запчасти Case IH FARMALL C (131) - CHASSIS, BRAKES AND CONNECTIONS (12) - CHASSIS

1

Q819

HEADED PIN,7/16" x 1 3/8"

PIN, brake rod yoke

4шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

4шт.

Q1510

WASHER

steel, plain, 7/16"

4шт.

2

351216R1

LEVER, brake shaft

1шт.

425-117

NUT,7/16"-20, G5

hex., 7/16-20 NF

1шт.

181406

BOLT,Hex, 7/16" - 20 x 2", Gr 5

SCREW, cap, hex-hd., 7/16-20 NF x 2"

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

3

126-122

WOODRUFF KEY,#13, 3/16" x 1", HT

KEY, Woodruff, hi-stl., no. 13

2шт.

4

351212R1

SHAFT, brake pedal

1шт.

5

48983D

THRUST WASHER

thrust, brake pedal shaft

2шт.

6

351792R1

STOP, brake pedal

1шт.

NLS

NO LONGER SERVICED

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

7

351213R11

PEDAL, brake, L.H., Composed of

1шт.

351213R1

PEDAL (NSS)

1шт.

43751DB

LATCH, PEDALS

PLATE

1шт.

104087

RIVET,But Hd, 1/4" x 1 1/4"

1шт.

51293D

SPRING

1шт.

271500

SOCKET

hex., 7/16-14 NC

1шт.

179867

BOLT,Hex, 7/16" - 14 x 2 1/4", Gr 5

SCREW, cap, hex-hd., 7/16-14 NC x 2-1/4"

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

8

43751DB

LATCH, PEDALS

PLATE, lock, brake pedal

1шт.

104087

RIVET,But Hd, 1/4" x 1 1/4"

rd-hd., 1/4 x 1-1/4"

1шт.

9

51293D

SPRING

tension, brake pedal lock plate

1шт.

10

351214R1

PEDAL, brake, R.H.

1шт.

11

48619DX

ROD

brake, w/yoke

2шт.

NUT, jam, hex., 7/16-20 NF

2шт.

12

49610D

VALVE SPRING

SPRING AND RETAINER, brake compression

2шт.

13

40435D

WASHER, brake pedal shaft

1шт.

14

351215R1

RING, snap, brake shaft

1шт.

15

351205R1

ARM, brake band lever

2шт.

103026

NUT,3/8"-24, G5

2шт.

181376

BOLT,Hex, 3/8" - 24 x 1 5/8", Gr 5

SCREW, cap, hex-hd., 3/8-24 NF x 1-5/8"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

16

351107R1

WASHER

brake drum retainer

2шт.

181429

BOLT,Hex, 1/2" - 20 x 1 1/4", Gr 5

SCREW, cap, hex-hd., 1/2-20 NF x 1-1/4"

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

17

63090D

WASHER,13.1mm ID x 41.27mm OD x 3.97mm Thk

SEAL, brake drum shaft

2шт.

18

351106R1

DRUM, brake

2шт.

19

351200R12

BAND

brake, w/moulded lining and sixteen rivets, 355775R1 (Optional with 351624R92)

2шт.

19

351624R92

BRAKE LINING

BAND, brake, w/woven lining and fourteen rivets, 355775R1 (Optional with 351200R12)

2шт.

20

351204R1

PIN, brake band connection

4шт.

21

351203R2

LEVER, brake band

2шт.

22

351210R1

SPRING

brake pedal return

2шт.

23

48594DA

BUSHING,19.19mm ID x 20.55mm OD x 19.84mm L

brake band lever shaft

2шт.

24

20567H

WASHER, felt, brake band lever

2шт.

25

355775R1

RIVET

brake band (Bands with woven lining) (Will work for 59469D)

28шт.

26

352610R93

PACKAGE, service, brake band lining (Woven) (Consists of one lining and fourteen rivets, 355775R1)

2шт.

27

351211R1

PLATE, brake housing cover

2шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

6шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

28

351511R11

SHAFT, seed plate drive

2шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, cap, hex-hd., 3/8-16 NC x 1-1/8"

6шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

29

351514R11

COVER, seed plate drive, w/seal, 351512R1

2шт.

30

351512R1

SEAL, dust, seed plate drive

2шт.

31

351206R21

HOUSING, brake, L.H., assembly, Composed of

1шт.

351209R1

ANCHOR (NSS)

1шт.

48591D

BEARING (NSS)

1шт.

48594DA

BUSHING,19.19mm ID x 20.55mm OD x 19.84mm L

1шт.

351206R2

HOUSING (NSS)

1шт.

218437

NUT

1шт.

350517R1

NUT

(NSS)

3шт.

550827R1

NUT (NSS)

1шт.

102445

SCREW

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

5шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

32

35107R21

HOUSING, brake, R.H., assembly, Composed of

1шт.

351208R1

ANCHOR (NSS)

1шт.

48591D

BEARING (NSS)

1шт.

48594DA

BUSHING,19.19mm ID x 20.55mm OD x 19.84mm L

1шт.

351207R2

HOUSING (NSS)

1шт.

218437

NUT

1шт.

350517R1

NUT

(NSS)

3шт.

550827R1

NUT (NSS)

1шт.

102445

SCREW

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

5шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

102445

SCREW, set, adjusting, rd-pt., sq-hd., 5/16-18 NC x 1" (Brake housing)

1шт.

351515R91

PACKAGE, seed plate drive, Composed of

1шт.

351514R1

COVER (NSS)

2шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW

6шт.

351512R1

SEAL

2шт.

351511R11

SHAFT

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6,шт.
