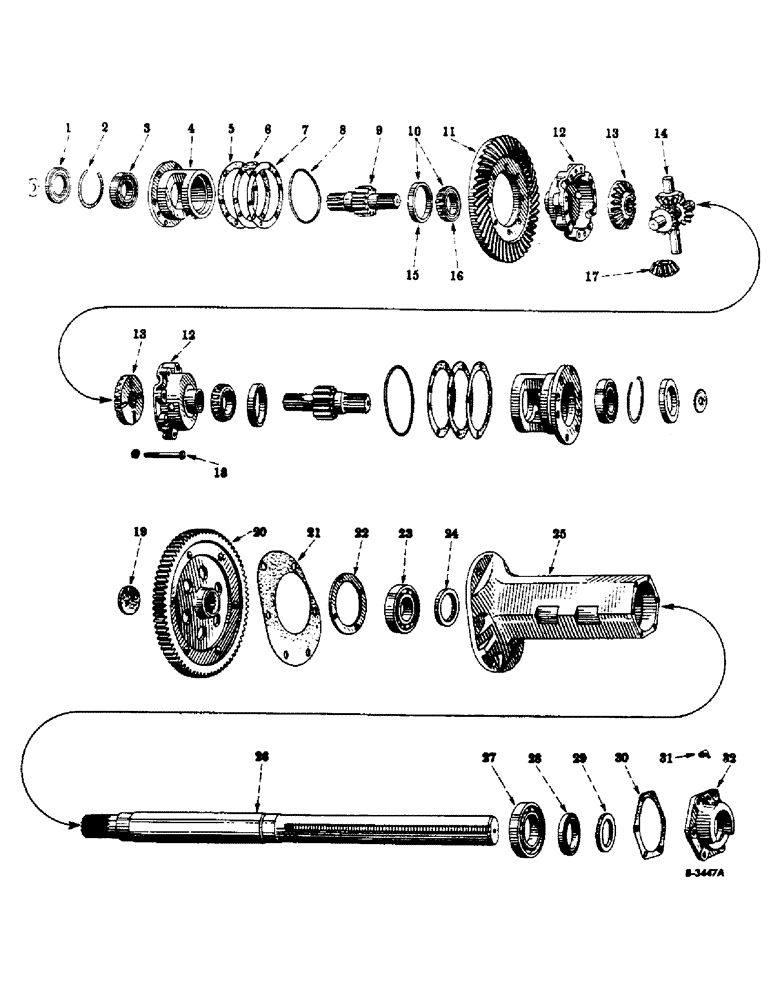

Запчасти Case IH FARMALL C (128) - CHASSIS, REAR AXLE AND DIFFERENTIAL (12) - CHASSIS

1

351108R91

BUSHING

OIL SEAL, brake drum

3шт.

2

27071H

RING, snap, bull pinion ball bearing

2шт.

3

ST201

BEARING, BALL,45mm ID x 85mm OD x 19mm W

bull pinion and brake shaft

2шт.

4

351100R11

CAGE

bull pinion shaft bearing, w/oil seal, 351109R91 and cup, ST874A or 29008H

2шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, cap, hex-hd., 3/8-16 NC x 1-1/8"

12шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

5

351105R1

SHIMS, bull pinion shaft bearing cage, extra light

1шт.

6

351103R1

SHIMS, bull pinion shaft bearing cage, medium

2шт.

7

351104R1

SHIMS, bull pinion shaft bearing cage, heavy

2шт.

8

59385D

RING

sealing, bull pinion shaft bearing case

2шт.

9

351101R2

PINION, bull (12 teeth), and brake shaft (Optional with 354982R1)

2шт.

9

354982R1

PINION, bull (12 teeth), and brake shaft (Optional with 351101R2) (Will work for 351101R1)

2шт.

10

ST774B

BEARING

differential case (Cone, ST775 and cup, ST874A)

2шт.

11

351096R1

GEAR, differential drive (47 teeth)

1шт.

12

351445R91

CASE, differential (2 halves) L.H. and R.H. (Will work for 351093R1 and 351094R1)

1шт.

13

351631R2

PINION

GEAR, differential bevel (24 teeth)

2шт.

14

351098R1

SHAFT, differential spider

2шт.

15

ST874A

TAPERED BEARING,90.03mm OD x 16mm W

CUP, differential case bearing

2шт.

16

ST775B

CONE, differential case bearing

2шт.

17

351630R2

GEAR

PINION, differential (13 teeth)

4шт.

18

351095R1

BOLT

differential case

8шт.

353790R1

NUT

hex., lock, 7/16" N.F.

8шт.

19

351110R1

RETAINER, bull gear

2шт.

221595

SCREW

cap, self-locking, hex-hd., 3/8-24 NF x 7/8"

4шт.

20

351109R31

GEAR AND HUB, bull

2шт.

104117

RIVET, rd-hd., 3/8 x 1-1/2"

6шт.

21

351113R1

GASKET

rear axle carrier

2шт.

22

351114R2

RETAINER, rear axle bearing (Two piece type)

4шт.

22

351114R1

RETAINER, rear axle bearing

2шт.

192278

BOLT, self-locking, hex-hd., 3/8-16 NC x 3/4"

8шт.

23

ST295

BEARING, BALL,50mm ID x 110mm OD x 27mm W

rear axle, inner

2шт.

24

46983D

OIL SEAL

OIL SEAL, rear axle carrier, inner

2шт.

25

351111R31

CARRIER

rear axle, L.H., w/oil seal, 46983D

1шт.

25

351112R31

CARRIER

rear axle, R.H., w/oil seal, 46983D

1шт.

425-1110

NUT,5/8"-18, G5

6шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

25

351496R41

CARRIER, rear axle, L.H., w/oil seal, 46983D (For tractors equipped with 100" wide tread rear axle)

1шт.

25

351497R41

CARRIER, rear axle R.H., w/oil seal, 46983D (For tractors equipped with 100" wide tread rear axle)

1шт.

26

351115R2

AXLE

rear (80" tread) (Standard)

2шт.

26

351479R2

SHAFT

AXLE, rear (88" tread) (Special)

2шт.

26

351493R2

SHAFT

AXLE, rear (100" tread) (Special)

2шт.

27

ST269A

BALL BEARING,60mm ID x 110mm OD x 22mm W

BEARING, ball, rear axle, outer

2шт.

28

60254D

SEAL

OIL SEAL, rear axle, outer

2шт.

29

351118R1

SEALING WASHER

WASHER, felt, rear axle

2шт.

30

351117R1

GASKET

rear axle carrier cap

2шт.

31

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, lubrication, 90 degree angle (Alemite 1613) (Will work for 109354)

2шт.

32

351116R11

CAP, rear axle carrier, w/washer, 351118R1 and oil seal, 60254D

2шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

cap, hex-hd., 3/8-16NC x 1-1/4"

8шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

351495R95

ATTACHMENT, 100" wide tread rear axle (Special), Composed of

1шт.

351493R2

SHAFT

AXLE

2шт.

ST269A

BALL BEARING,60mm ID x 110mm OD x 22mm W

BEARING

2шт.

ST295

BEARING, BALL,50mm ID x 110mm OD x 27mm W

BEARING

2шт.

351116R11

CAP

2шт.

351496R31

CARRIER

1шт.

351497R31

CARRIER

1шт.

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING

2шт.

351113R1

GASKET

2шт.

351117R1

GASKET

2шт.

351114R2

RETAINER

4шт.

192278

SCREW

8шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

cap, hex-hd., 3/8-16NC x 1-1/4"

8шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

351498R92

AXLE

ATTACHMENT, 88" wide tread rear axle (Special) (Consists of two rear axles, 351479R2)

1шт.
