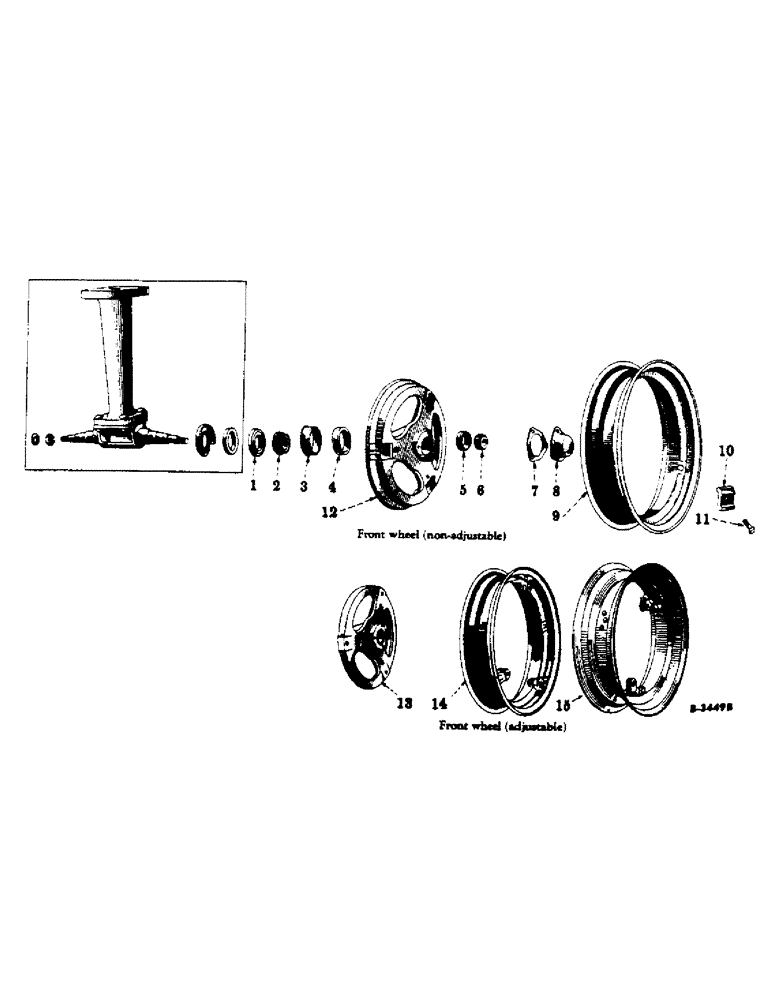

Запчасти Case IH FARMALL C (125) - CHASSIS, FRONT WHEELS (12) - CHASSIS
№
Артикул
Название
Примечание
Количество
1
43463D
OIL SEAL
OIL SEAL, front wheel
2шт.
2
54631H
BEARING
CONE, front wheel inner bearing tapered roller bearing
2шт.
3
49117D
CUP ASSY.
RING, wear front wheel oil seal
2шт.
4
54630H
BEARING ASSY,1.25" ID x 2.5" OD x 0.8125"
CUP, tapered roller bearing, front wheel inner bearing
2шт.
5
43440D
CUP ASSY.
CUP, front wheel outer bearing
2шт.
6
13823V
CONE
front wheel outer bearing
2шт.
7
49116D
GASKET,0.79mm Thk
front wheel hub
2шт.
8
49115D
CYLINDER END CAP
CAP, front, wheel hub
2шт.
179814
SPACER
6шт.
9
351556R92
RIM
front wheel (Rim size - 3.00D x 15 D.C.) (Tire size - 4.00 x 15 or 5.00 x 15) (For non-adjustable wheel)
2шт.
10
48976DA
CLAMP
front wheel rim
6шт.
11
351555R2
BOLT,Wheel, 1/2" - 20 x 2 5/8"
front wheel rim, cd-pltd.
6шт.
125653
NUT,1/2"-20, G5, Thk
hex., cd-pltd., 1/2-20 NF
6шт.
12
6787DEX
WHEEL, front, assembly (Non-adjustable), Composed of
2шт.
43440D
CUP ASSY.
CUP
1шт.
54630H
BEARING ASSY,1.25" ID x 2.5" OD x 0.8125"
CUP
1шт.
49117D
CUP ASSY.
RING
1шт.
6787DE
WHEEL (NSS)
1шт.
13
8734DX
WHEEL, front, assembly (Adjustable) (Used with rim 57882D), Composed of
2шт.
54630H
BEARING ASSY,1.25" ID x 2.5" OD x 0.8125"
CUP
1шт.
43440D
CUP ASSY.
CUP
1шт.
49117D
CUP ASSY.
RING
1шт.
8734D
WHEEL (NSS)
1шт.
13
9350DX
WHEEL, front, assembly (Adjustable), Composed of
2шт.
43440D
CUP ASSY.
CUP
1шт.
54630H
BEARING ASSY,1.25" ID x 2.5" OD x 0.8125"
CUP
1шт.
49117D
CUP ASSY.
RING
1шт.
9350D
WHEEL (NSS)
1шт.
14
57095D
DISC, WHEEL
RIM, front wheel, w/clamps (Rim size-3.00 x 15) (Tire size-4.00 x 15 or 5.00 x 15) (Optional with 350327R91) (For adjustable wheel, 9350DX)
2шт.
14
350327R91
RIM
front wheel, w/clamps (Rim size 3.00 x 15) (Tire size-4.00 x 15 or 5.00 x 15) (Optional with 57095D) (For adjustable wheel, 9350DX)
2шт.
120371
NUT,1/2"-20, G5
6шт.
181707
BOLT,Hex, 1/2" - 20 x 2 1/4", Gr 5
SCREW, cap, hex-hd., cd-pltd., 1/2-20 NF x 2-1/4"
6шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
6шт.
15
57882D
RIM, front wheel, w/clamps (Rim size 3.00D x 19 DC) (Tire size 4.00 x 19) (For adjustable wheel, 8734DX)
2шт.
15
352760R91
RIM, front wheel, w/clamps (Rim size-4.50E x 16) (Tire size-6.50 x 16) (For adjustable wheel, 9350DX)
2шт.
120371
NUT,1/2"-20, G5
6шт.
181707
BOLT,Hex, 1/2" - 20 x 2 1/4", Gr 5
SCREW, cap, hex-hd., cd-pltd., 1/2-20 NF x 2-1/4"
6шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
6шт.
356148R91
WHEEL AND RIM, front, assembly (Non-adjustable) (3.00 x 15 DC), Composed of
2шт.
351555R2
BOLT,Wheel, 1/2" - 20 x 2 5/8"
3шт.
49115D
CYLINDER END CAP
CAP
1шт.
48976DA
CLAMP
3шт.
49116D
GASKET,0.79mm Thk
1шт.
125653
NUT,1/2"-20, G5, Thk
3шт.
351556R93
RIM
1шт.
179814
SPACER
1шт.
6787DEX
WHEEL
1шт.
356149R91
WHEEL AND RIM, front, assembly (Rim size 3.00 x 15) (Tire size 4.00 x 15) (Adjustable), Composed of
2шт.
49115D
CYLINDER END CAP
CAP
1шт.
49116D
GASKET,0.79mm Thk
1шт.
120371
NUT,1/2"-20, G5
3шт.
350327R91
RIM
1шт.
179814
SPACER
3шт.
181707
BOLT,Hex, 1/2" - 20 x 2 1/4", Gr 5
SCREW
3шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
3шт.
9350DX
WHEEL
1шт.
356151R91
WHEEL AND RIM, front, assembly (Rim size 4.50 x 16) (Tire size 6.50 x 16) (Adjustable), Composed of
2шт.
49115D
CYLINDER END CAP
CAP
1шт.
49116D
GASKET,0.79mm Thk
1шт.
120371
NUT,1/2"-20, G5
3шт.
352760R91
RIM
1шт.
179814
SPACER
3шт.
181707
BOLT,Hex, 1/2" - 20 x 2 1/4", Gr 5
SCREW
3шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
3шт.
9350DX
WHEEL
1шт.
356153R91
WHEEL AND RIM, front, assembly (Rim size 3.00D x 19 DC) (Tire size 4.00 x 19) (Adjustable), Composed of
2шт.
49115D
CYLINDER END CAP
CAP
1шт.
49116D
GASKET,0.79mm Thk
1шт.
120371D
NUT
3шт.
57882D
RIM
1шт.
179814
SPACER
3шт.
181707
BOLT,Hex, 1/2" - 20 x 2 1/4", Gr 5
SCREW
3шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
3шт.
8734DX
WHEEL
1шт.
360119R92
PACKAGE
overhaul, front wheel bearing (For wheels, 6787DEX, 8734DX and 9350DX), Consists of
1шт.
13823V
CONE
1шт.
54631H
BEARING
CONE
1шт.
54630H
BEARING ASSY,1.25" ID x 2.5" OD x 0.8125"
CUP
1шт.
43440D
CUP ASSY.
CUP
1шт.
49116D
GASKET,0.79mm Thk
1шт.
43463D
OIL SEAL
OIL SEAL
1шт.
49117D
CUP ASSY.
RING
1шт.
49118DA
WASHER,46.02mm ID x 64.29mm OD x 4.78mm Thk
1шт.
55453D
WASHER
1шт.
Выбрано товаров: 89
