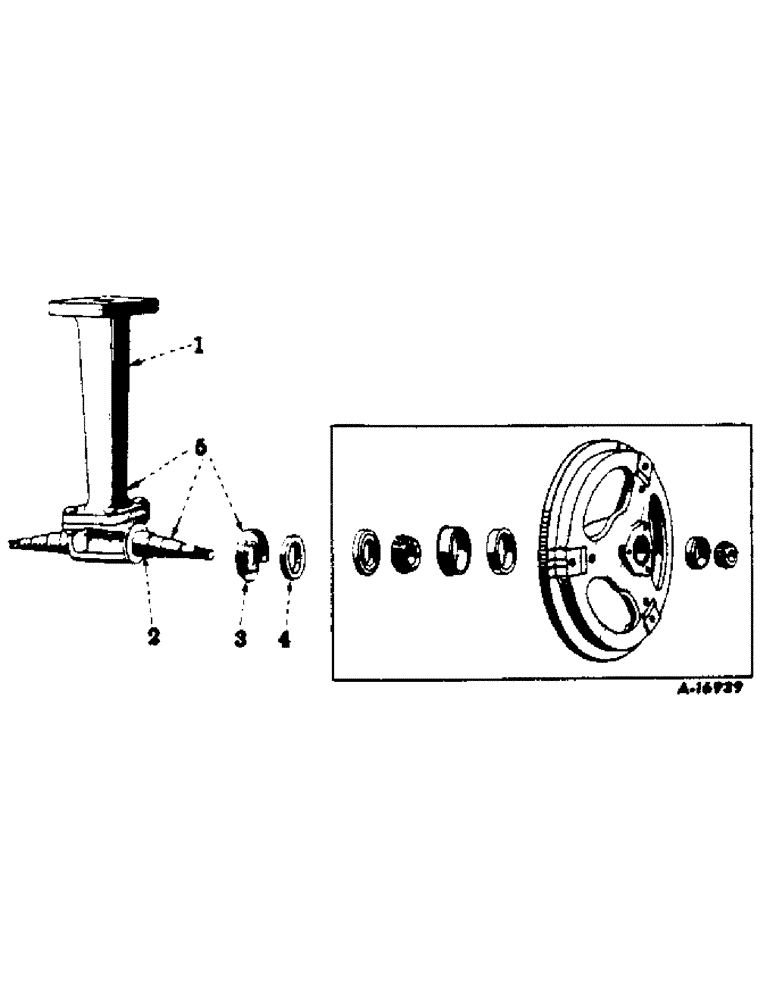

Запчасти Case IH FARMALL C (124) - CHASSIS, FRONT AXLE AND BOLSTER (12) - CHASSIS

1

8624DCX

BOLSTER, front wheel, w/four rivets, 357126R1

1шт.

2

55452DBX

AXLE

front, w/four rivets, 357126R1

1шт.

102649

SLOTTED NUT,5/8"-18, G5

NUT, 5/8"-18, G5

2шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

2шт.

Q1538

WASHER

steel, plain, 5/8"

2шт.

3

55454D

SHIELD

DEFLECTOR, dust, front axle

2шт.

4

55453D

WASHER

felt, front axle

2шт.

5

55461DE

AXLE, front, w/bolster, assembly, Composed of

1шт.

55452DB

AXLE (NSS)

1шт.

8624DC

BOLSTER (NSS)

1шт.

55454D

SHIELD

DEFLECTOR

2шт.

357126R1

RIVET

4шт.

357126R1

RIVET, front axle and bolster

4шт.
