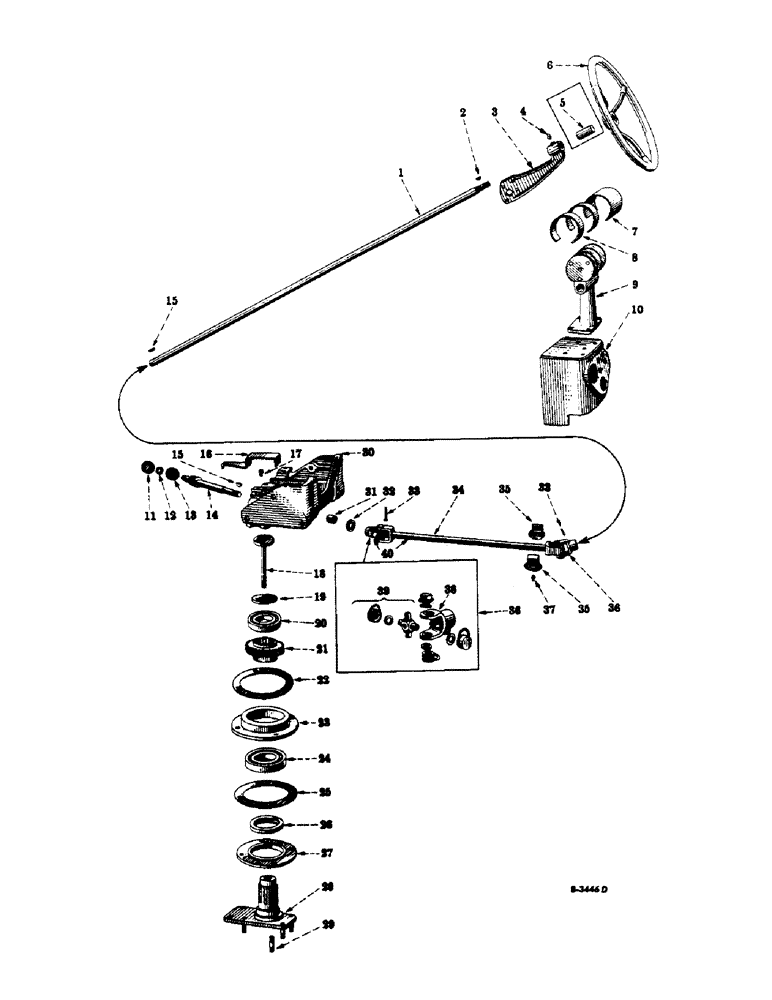

Запчасти Case IH FARMALL C (120) - CHASSIS, STEERING MECHANISM (12) - CHASSIS
№
Артикул
Название
Примечание
Количество
1
351127R2
SHAFT, steering
1шт.
219753
BACK-UP RING
jam, hex., 3/4-16 NF
1шт.
2
112139
WOODRUFF KEY,#A, 1/4" x 7/8"
KEY, Woodruff, no. A
1шт.
3
360363R11
BEARING, steering shaft, rear, w/bushing, 23858D (Will work for 351313R92)
1шт.
179839
BOLT,Hex, 3/8" - 16 x 1", Gr 5
3шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
3шт.
4
219-36
LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF
FITTING, lubrication, straight, 1/8" (Optional with 109461)
1шт.
4
109461
LUBE NIPPLE,1/8"-27 x .66 lg
NIPPLE, LUBE, (Optional with 119512) 1/8"-27 x .66 lg
1шт.
4
66584D
FITTING
lubrication, straight, drive type, 3/16"
1шт.
5
23858D
BUSHING, steering shaft rear bearing (Used only with 351313R92)
1шт.
6
46512DA
WHEEL
steering, 15" (Optional with 60069D) (S/N, Serial Range: 501-75097)
1шт.
6
60069D
HANDWHEEL
WHEEL, steering, 15" (Optional with 46512DA) (S/N, Serial Range: 501-75097)
1шт.
6
29118DC
WHEEL
steering, 18" (Optional with 60070D) (S/N 75098 up)
1шт.
6
60070D
STEERING WHEEL
WHEEL, steering, 18" (Optional with 29118DC) (S/N 75098 up)
1шт.
7
351364R1
COVER, steering shaft support bracket (For tractors not equipped with touch-control)
1шт.
8
351403R1
COVER, hydraulic lift control and steering bracket support (Tractors equipped with touch-control)
1шт.
9
351363R1
BRACKET, steering shaft support (Tractors equipped with touch- control, order package, 355634R91) (Tractors not equipped with touch-control, order 354741R1) (S/N, Serial Range: 501-58663)
1шт.
181361
BOLT,Hex, 3/8" - 24 x 7/8", Gr 5
SCREW, cap, hex-hd. 3/8-24NF x 7/8"
4шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
4шт.
9
354741R1
BRACKET, steering shaft support (Will work for 351363R1 on tractors not equipped with touch-control) (S/N 58664 up)
1шт.
181361
BOLT,Hex, 3/8" - 24 x 7/8", Gr 5
SCREW, cap, hex-hd., 3/8-24 NF x 7/8"
4шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
4шт.
10
355479R92
SUPPORT, steering shaft and instrument panel (Will work for 351362R91)
1шт.
179837
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5
3шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
3шт.
11
6660DA
BEARING CAP
steering worm bearing
1шт.
12
69442D
NUT
steering worm
1шт.
13
ST225BT
BALL BEARING
BEARING, ball, steering worm shaft
1шт.
14
351123R2
CAPSCREW
WORM, steering
1шт.
108635
PIN,1/8" x 1 1/8"
Split (Cotter), 1/8" x 1 1/8"
1шт.
15
103462
KEY
Woodruff, no. 13, 3/16 x 1"
2шт.
16
351121R21
BRACKET, starting crank
1шт.
179814
SPACER
4шт.
17
356568R1
PLUG, steering gear housing vent, (Will work for 53218DX)
1шт.
18
52953DX
SHAFT
WASHER, steering work wheel shaft upper bearing, and stud
1шт.
25-118
NUT,1/2"-20, G5
hex., 1/2-20 NF
1шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
1шт.
19
352417R1
WASHER
SEAL, steering worm wheel shaft
1шт.
20
ST278
BEARING, BALL,49.99mm ID x 90mm OD x 20mm W
BEARING, upper, steering worm wheel shaft
1шт.
21
351122R1
GEAR
WHEEL, worm, steering (38 teeth)
1шт.
22
52951D
GASKET
steering worm wheel shaft lower bearing cage
1шт.
23
8324D
CAGE
steering worm wheel shaft lower bearing
1шт.
24
ST269A
BALL BEARING,60mm ID x 110mm OD x 22mm W
BEARING, lower, steering worm wheel shaft
1шт.
25
52952D
GASKET
steering worm wheel shaft lower bearing cage cover
1шт.
26
360457R91
SEAL
OIL SEAL, steering worm wheel shaft (Will work for 48776D, 358780R91 and 358819R91)
1шт.
27
350009R12
COVER, steering worm wheel shaft lower bearing cage
1шт.
413-724
BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5
SCREW, cap, hex-hd., 7/16-14 NC x 1-1/2"
4шт.
103322
LOCK WASHER,7/16"
WASHER, LOCK, 7/16"
4шт.
28
53001DX
SHAFT, steering worm wheel, w/four studs, 53002D
1шт.
25-118
NUT,1/2"-20, G5
hex, 1/2-20 NF
4шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
4шт.
29
53002D
STUD
steering worm wheel shaft
4шт.
30
351120R71
HOUSING, steering gear, assembly (Order 357159R91), Composed of
1шт.
41096DB
BUSHING (NSS)
1шт.
351120R7
HOUSING (NSS)
1шт.
43800DA
SEAL
OIL SEAL
1шт.
356568R1
PLUG
1шт.
9617020
PLUG,1/4" - 18 x 0.48"
1шт.
103879
PLUG
1шт.
425-1110
NUT,5/8"-18, G5
1шт.
9617020
PLUG,1/4" - 18 x 0.48"
pipe, sq-hd., 1/4"
1шт.
103867
PLUG
pipe, sq-hd., C.I., 3/8" (Optional with 103879)
1шт.
103879
PLUG, pipe, sq-hd., stl., 3/8" (Optional with 103867)
1шт.
359258R2
SCREW, cap, hex-hd., 5/8-11 NC x 3" (Will work for 179935)
2шт.
359259R1
BOLT,Hex, 5/8" - 11 x 2"
SCREW, cap, hex-hd., 5/8-11 NC x 2" (Will work for 179931)
1шт.
359260R1
SCREW, cap, hex-hd., 5/8-11 NC x 2-3/4" (Will work for 181487)
1шт.
103325
LOCK WASHER,5/8"
WASHER, LOCK, 5/8"
4шт.
31
41096DBR
BUSHING,25.43mm ID x 32.64mm OD x 31.75mm L
steering worm
1шт.
32
43800DA
SEAL
OIL SEAL, steering worm shaft (Optional with 359042R91 and 359257R91)
1шт.
33
112055
PIN,3/16" x 1 1/2"
steering shaft universal joint
2шт.
34
351316R93
SHAFT AND YOKE, universal joint
1шт.
35
351126R12
BEARING CARRIER
steering shaft center, assembly (Will work for 351125R1 and 351126R1), Composed of
1шт.
351126R2
BEARING (NSS)
1шт.
351125R2
BEARING
CAP (NSS)
1шт.
66584D
FITTING
LUBRICATOR
1шт.
179845
BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5
SCREW
2шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
2шт.
179845
BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5
SCREW, cap, hex-hd., 3/8-16 NC x 1-3/4"
2шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
2шт.
36
351930R92
YOKE
JOINT, steering universal (Order 351124R94)
2шт.
37
66584D
FITTING
lubrication
1шт.
38
350256R1
YOKE
steering universal joint
2шт.
39
363321R91
BEARING
AND SPIDER, steering universal joint (Optional with 363313R91)
2шт.
39
363313R91
BEARING
AND SPIDER, steering universal joint (Optional with 363321R91)
2шт.
40
351124R94
SHAFT
steering, 351316R93, w/two bearing and spider and two yoke, 350256R1
1шт.
355634R91
PACKAGE, touch-control support bracket (Tractors equipped with touch-control) (S/N 501 to 58663), Consists of
1шт.
354741R1
BRACKET
1шт.
142493
LATCH
PIN
2шт.
354743R91
SHAFT
1шт.
354744R91
SHAFT
1шт.
354747R1
SPACER
2шт.
354746R1
SPRING
2шт.
357159R92
PACKAGE, steering gear housing, 351120R71, w/bracket 351121R21, assembly (Will work for 351120R51)
1шт.
Выбрано товаров: 94
