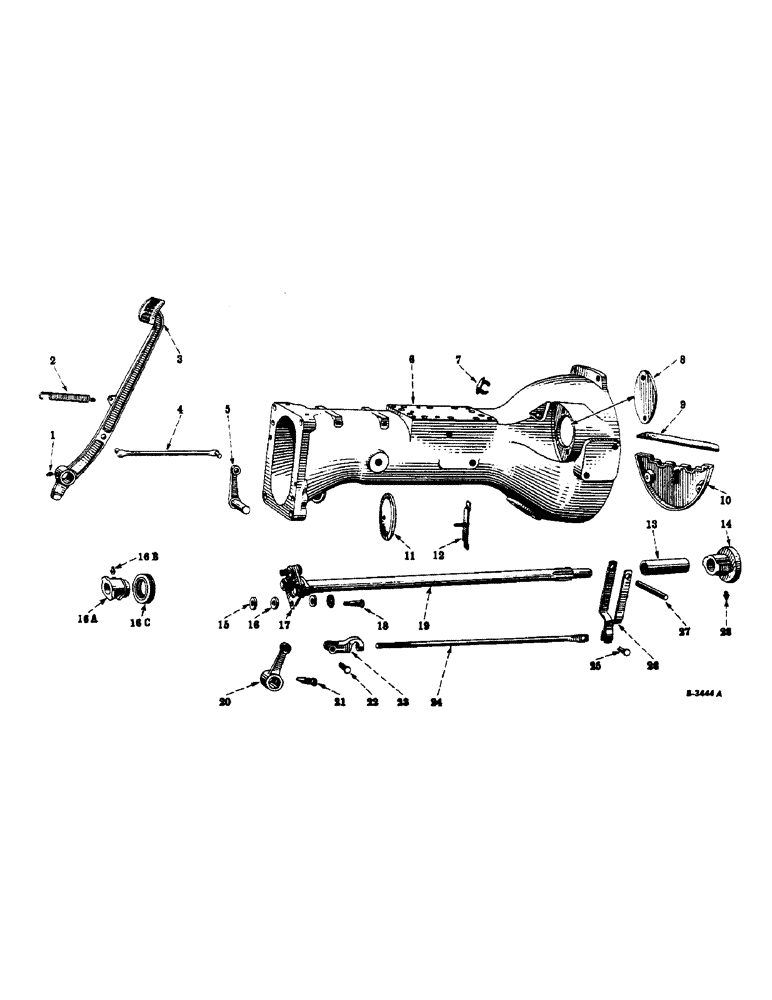

Запчасти Case IH FARMALL C (112) - CHASSIS, CLUTCH HOUSING, CONTROLS AND CONNECTIONS (12) - CHASSIS

1

66584D

FITTING

lubrication, straight drive, 3/16"

1шт.

2

351210R1

SPRING

clutch pedal (Will work for 59807D)

1шт.

3

351242R1

PEDAL, clutch

1шт.

4

355118R11

ROD, clutch pedal (Will work for 351238R1)

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

Q1510

WASHER

steel, plain, 7/16"

2шт.

5

351239R91

SHAFT, clutch pedal

1шт.

6

355808R95

PACKAGE, service, clutch housing (Will work for 351687R1), Consists of

1шт.

351687R61

HOUSING

1шт.

355798R11

SHAFT

1шт.

355813R91

ROD, assembly

1шт.

16618R1

CLEVIS PIN,7/16" x 1.190"

PIN

1шт.

351486R1

COVER ASSY

COVER

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

355800R1

LEVER

1шт.

181377

BOLT,Hex, 3/8" - 24 x 1 3/4", Gr 5

SCREW

1шт.

103026

NUT,3/8"-24, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

IH124555

WOODRUFF KEY,#16, 3/16" x 1 1/8", HT

KEY

1шт.

6

351687R81

HOUSING, clutch, assembly, Composed of

1шт.

355805R1

BUSHING,22.61mm ID x 25.45mm OD x 21.97mm L

2шт.

Q3852

FITTING

1шт.

43546D

GUIDE

1шт.

351687R8

HOUSING (NSS)

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

2шт.

179887

CABLE

SCREW, cap, hex-hd., 1/2-13 NC x 1-3/4"

4шт.

361858R1

CAPSCREW,5/8" - 11 x 2 1/2"

SCREW, cap, clutch, housing (2-1/2" long)

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

7

57579DX

COVER

dust, clutch housing, w/spring

1шт.

111871

RIVET,Oval Hd, 1/8" x 5/32"

(Will work for 350510R1) Oval Hd, 1/8" x 5/32"

2шт.

8

48554D

COVER, starter pad

1шт.

179877

CAPSCREW,Hex, 1/2" - 13 x 5/8"

SCREW, cap, hex-hd., 1/2-13 NC x 5/8"

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

9

57575D

SEAL

FELT, clutch housing cover (S/N, Serial Range: 501-69897)

1шт.

10

8778DAX

COVER, clutch housing, w/felt, 57575D (Order 354-910R91) (S/N, Serial Range: 501-69897)

1шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

10

354909R1

COVER

clutch housing (S/N 69898 up)

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

SCREW, cap, hex-hd., 5/16-18 NC x 1/2"

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

11

57576DX

COVER ASSY

COVER, clutch housing hand hole, w/felt

1шт.

12

57578DX

STRAP

BAR, clutch housing hand hole cover, w/welding bolt

1шт.

129-409

WING NUT,1/4"-20

NUT, WING, 1/4"-20

1шт.

13

43546D

GUIDE

sleeve, clutch release

1шт.

14

350830R31

RETAINER

BEARING AND RETAINER, clutch release, w/two lubricators, 109454 (Order 364790R91)

1шт.

15

356588R1

RETAINER

clutch drive shaft joint rubber washer

8шт.

16

43550D

RUBBER WASHER

clutch drive shaft joint, rubber

8шт.

16a

6116D

SLEEVE

clutch release (Note A)

1шт.

16b

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , clutch release sleeve (Optional with 119512) (Note A) 1/8"-27 x .66 lg

1шт.

16b

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING, lubrication, clutch release sleeve (Optional with 109461) (Note A)

1шт.

16c

18567D

THRUST BEARING,52.39mm ID x 83.95mm OD x 20.45mm W

BEARING, clutch release (Optional with 55212D and 361292R91) (Note A)

1шт.

16c

55212D

BEARING

clutch release (Optional with 18567D and 361292R91) (Note A)

1шт.

16c

361292R91

BALL BEARING,52.39mm ID x 84.15mm OD x 19.05mm W

clutch release (Optional with 18567D and 55212D) (Note A)

1шт.

17

43549D

PLATE ASSY.

DISC, clutch drive shaft joint

1шт.

18

43552DBX

SCREW

clutch drive shaft joint, w/nut, 103026 and washer, 103321

4шт.

103026

NUT,3/8"-24, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

19

351852R2

SHAFT

clutch

1шт.

20

351237R1

LEVER, clutch shaft

1шт.

21

43528D

SCREW

locking, clutch shaft lever

1шт.

114505

JAM NUT,Jam, 1/2"-13, G5

1шт.

22

355788R1

PIN, clutch rod yoke (Will work for 26480D)

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

23

49401D

YOKE

adjustable, clutch rod

1шт.

24

49402D

BOLT

ROD, operating, clutch

1шт.

271505

BODY

hex., 7/16-20 NF

2шт.

25

357369R1

AXLE PIN

PIN, clutch rod end

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

26

47716D

CLEVIS COUPLING

YOKE, clutch release

1шт.

27

46278DAR

AXLE PIN

PIN, pivot, clutch release yoke

1шт.

103395

PIN,5/32" x 3/4"

Split (Cotter), 5/32" x 3/4"

2шт.

28

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight (Optional with 271287) 1/4"-28 NPT x .54" lg

2шт.

28

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight (Optional with 109454) 1/4"-28 NPT x .54" lg

2шт.

354910R91

COVER, clutch housing, 354909R1, w/two screws, 179812 and two washers, 103320 (Will work for 8778DAX) (S/N, Serial Range: 501-69897)

1шт.

364790R91

STRIPPER PACKAGE

PACKAGE, service, clutch release bearing (Will work for 350830R31), Consists of

1шт.

18567D

THRUST BEARING,52.39mm ID x 83.95mm OD x 20.45mm W

BEARING

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

6116D

SLEEVE

1шт.
