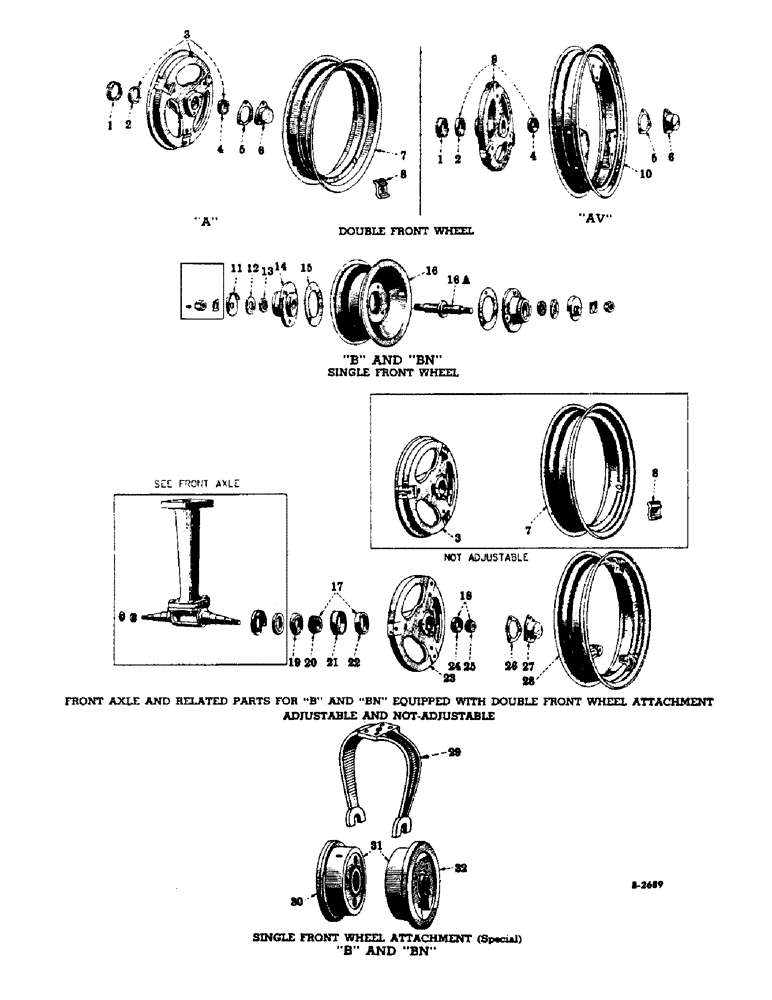

Запчасти Case IH FARMALL BN (108) - CHASSIS, FRONT WHEELS (12) - CHASSIS
№
Артикул
Название
Примечание
Количество
1
49117D
CUP ASSY.
FRONT WHEEL OIL SEAL WEAR RING (Not "B" or "BN")
2шт.
2
54630H
BEARING ASSY,1.25" ID x 2.5" OD x 0.8125"
FRONT WHEEL INNER BEARING CUP (Timken no. 15250) (not "B" or "BN") (optional with 352394R1 and 353525R1)
2шт.
2
352394R1
CUP
FRONT WHEEL INNER BEARING CUP (Bower no. BT-15250) (not "B" or "BN") (optional with 54630H and 353525R1)
2шт.
2
353525R1
CUP
FRONT WHEEL INNER BEARING CUP (Tyson no. 15250) (not "B" or "BN") (optional with 54630H and 352394R1)
2шт.
3
6787DEX
FRONT WHEEL, complete (standard) ("A" only), 3.00D x 15, 4.00 x 15, 5.00 x 15
2шт.
3
6787DEX
FRONT WHEEL, complete ("B" and "BN") (double front wheel, special), 3.00D x 15, 4.00 x 15, 5.00 x 15
2шт.
4
43440D
CUP ASSY.
FRONT WHEEL OUTER BEARING CUP (Timken no. 09196) (not "B" or "BN") (optional with 352395R1 and 353526R1)
2шт.
4
352395R1
CUP
FRONT WHEEL OUTER BEARING CUP (Bower no. BT-09196) (not "B" or "BN") (optional with 43440D or 353526R1)
2шт.
4
353526R1
BEARING
FRONT WHEEL OUTER BEARING CUP (Tyson no. 09196) (not "B" or "BN") (optional with 43440D or 352395R1)
2шт.
5
49116D
GASKET,0.79mm Thk
FRONT WHEEL HUB CAP GASKET (not "b" or "BN")
2шт.
6
49115D
CYLINDER END CAP
FRONT WHEEL HUB CAP (Not "B" and "BN")
2шт.
179814
SPACER
6шт.
7
31453D
RIM
FRONT WHEEL RIM (standard) ("A" only), 3.00D x 15, 4.00 x 15, 5.00 x 15, Serial Range: 501-194244
2шт.
7
351556R92
RIM
FRONT WHEEL RIM, 3.00D x 15, 4.00 x 15, 5.00 x 15, 194245 up
2шт.
7
31453D
RIM
FRONT WHEEL RIM ("B" and "BN") (double front wheel, special), 3.00D x 15, 4.00 x 15, 5.00 x 15, Serial Range: 501-194244
2шт.
8
48976DA
CLAMP
FRONT WHEEL RIM CLAMP ("A" only)
6шт.
29821B
MACHINE BOLT, 1/2 x 2-1/2", (order 351555R1 and 120371)
6шт.
220068
HEX NUT, 1/2" N.C. (order 351555R1 and 120371)
6шт.
8
48976DA
CLAMP
FRONT WHEEL RIM CLAMP ("B" and "BN") (double front wheel, (special)
6шт.
29821B
MACHINE BOLT, 1/2 x 2-1/2" (order 351555R1 and 120371)
6шт.
220068
HEX NUT, 1/2" N.C. (order 351555R1 and 120371)
6шт.
9
8734DX
FRONT WHEEL, complete ("AV" only) (standard), 3.00D x 19, 4.00 x 19
2шт.
10
57882D
FRONT WHEEL RIM WITH CLAMPS ("AV" only) (standard), 3.00 x 19, 4.00 x 19
2шт.
29821B
MACHINE BOLT, 1/2 x 2-1/2" (order cap screw, 181707 and nut, 120371)
6шт.
220068
HEX NUT, 1/2" N.C.
6шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
6шт.
181707
BOLT,Hex, 1/2" - 20 x 2 1/4", Gr 5
CAP SCREW, 1/2 x 2-1/4" N.F.), hex head (cadmium plated)
6шт.
120371
NUT,1/2"-20, G5
6шт.
11
23762DX
SHIELD
FRONT WHEEL HUB SHIELD WITH LOCK ("B" and "BN")
2шт.
12
23760D
SEALING WASHER
FRONT WHEEL FELT WASHER ("B" and "BN")
2шт.
13
42183D
FRONT WHEEL BEARING OIL SEAL ("B" and "BN")
2шт.
14
8331D
FRONT WHEEL HUB ("B" and "BN")
2шт.
179893
BOLT,Hex, 1/2" - 13 x 3", Gr 5
CAP SCREW, 1/2 x 3" N.C. hex head
3шт.
114774
HEX NUT, 1/2" N.C.
3шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
3шт.
15
52981D
FRONT WHEEL HUB GASKET ("B" and "BN")
2шт.
16
8333D
FRONT WHEEL (non-demountable) ("B" and "BN") (standard), 6.00 x 12
1шт.
16a
23740D
FRONT AXLE, special ("B" and "BN") (for front wheel, 40833D)
1шт.
129-129
NUT,7/8"-14, G5
HEX NUT, 7/8" N.F.
1шт.
17
54632H
BEARING
FRONT WHEEL INNER BEARING (cup, 54630H with cone, 54631H) ("B" and "BN") (double front wheel, special) (optional with 352380R91 and 353509R92)
2шт.
17
352380R91
BEARING
FRONT WHEEL INNER BEARING (cone, 352387R91 and cup, 352394R1) ("B" and "BN") (double front wheel, special) (optional with 353509R91 and 54632H)
2шт.
17
353509R92
BEARING
FRONT WHEEL INNER BEARING (cone, 353517R92 and cup, 353525R1) ("B" and "BN") (double front wheel, special) (optional with 54632H and 352380R91)
2шт.
18
43441D
BEARING
FRONT WHEEL OUTER BEARING (cup, 43440D with cone, 13823V) ("B" and "BN") (double front wheel, special) (optional with 352381R91 and 353510R92)
2шт.
18
352381R91
BEARING
FRONT WHEEL OUTER BEARING (cup, 352395R1 and cone, 352388R91) ("B" and "BN") (double front wheel, special) (optional with 43441D and 353510R92)
2шт.
18
353510R92
BEARING
FRONT WHEEL OUTER BEARING (cup, 353526R91 and cone, 353518R92) ("B" and "BN") (double front wheel, special) (optional with 43441D and 352381R91)
2шт.
19
43463D
OIL SEAL
FRONT WHEEL OIL SEAL ("B" and "BN") (double front wheel, special)
2шт.
20
54631H
BEARING
FRONT WHEEL INNER BEARING CONE (Timken no. 15118) ("B" and "BN") (double front wheel, special) (optional with 352387R91 and 353517R92)
2шт.
20
352387R91
CONE
FRONT WHEEL INNER BEARING CONE (Bower no. BT-15118) ("B" and "BN") (double front wheel, special) (optional with 54631H and 353517R92)
2шт.
20
353517R92
CONE
FRONT WHEEL INNER BEARING CONE (Tyson no. 15118) ("B" and "BN") (double front wheel, special) (optional with 54631H and 352387R91)
2шт.
21
49117D
CUP ASSY.
FRONT WHEEL OIL SEAL WEAR RING ("B" and "BN") (double front wheel, special)
2шт.
22
54630H
BEARING ASSY,1.25" ID x 2.5" OD x 0.8125"
FRONT WHEEL INNER BEARING CUP (Timken no. 15250) ("B" and "BN") (double front wheel, special) (optional with 352394R1 and 353525R1)
2шт.
22
352394R1
CUP
FRONT WHEEL INNER BEARING CUP (Bower no. BT-15250) ("B" or "BN") (double front wheel, special) (optional with 54630H and 353525R1)
2шт.
22
353525R1
CUP
FRONT WHEEL INNER BEARING CUP (Tyson no. 15250) ("B" or "BN") (double front wheel, special) (optional with 54630H and 352394R1)
2шт.
23
8734DX
ADJUSTABLE FRONT WHEEL, complete (special) (not "AV"), 300D x 15, 4.00 x 15, 5.00 x 15, Serial Range: 501-78999
2шт.
23
9350DX
ADJUSTABLE FRONT WHEEL, complete (special) (not "AV"), 3.00D x 15, 4.00 x 15, 79000 up
2шт.
24
43440D
CUP ASSY.
FRONT WHEEL OUTER BEARING CUP (Timken no. 09196) ("B" and "BN") (optional with 352395R1 and 353526R1)
2шт.
24
352395R1
CUP
FRONT WHEEL OUTER BEARING CUP (Bower BT-09196) ("B" and "BN") (double front wheel special) (optional with 43440D and 353526R1)
2шт.
24
353526R1
BEARING
FRONT WHEEL OUTER BEARING CUP (Tyson no. 09196) ("B" and "BN") (double front wheel special) (optional with 43440D and 352395R1)
2шт.
25
13823V
CONE
FRONT WHEEL OUTER BEARING CONE (Timken no. 09074) ("B" and "BN") (double front wheel, special) (optional with 352388R91) and 353518R92)
2шт.
25
352388R91
CONE
FRONT WHEEL OUTER BEARING CONE (Bower no. BT-09074) ("B" and "BN") (double front wheel, special) (optional with 13823V and 353518R92)
2шт.
25
353518R92
CONE
FRONT WHEEL OUTER BEARING CONE (Tyson no. 09074) ("B" and "BN") (double front wheel, special) (optional with 13823V and 352388R91)
2шт.
26
49116D
GASKET,0.79mm Thk
FRONT WHEEL HUB CAP GASKET ("B" and "BN") (double front wheel, special)
2шт.
27
49115D
CYLINDER END CAP
FRONT WHEEL HUB CAP ("B" and "BN") (double front wheel, special)
2шт.
179814
SPACER
6шт.
28
57095D
DISC, WHEEL
ADJUSTABLE FRONT WHEEL RIM WITH CLAMPS (special) (not "AV"), 3.00D x 15, 4.00 x 15
2шт.
350522R1
MACHINE BOLT, 1/2 x2-1/4" (order cap screw, 181707 and nut, 120371)
6шт.
220068
HEX NUT, 1/2" N.C.
6шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
6шт.
181707
BOLT,Hex, 1/2" - 20 x 2 1/4", Gr 5
CAP SCREW, 1/2 x 2-1/4" N.F. hex head (cadmium plated)
6шт.
120371
NUT,1/2"-20, G5
6шт.
29
57895D
FRONT WHEEL FORK, special ("B" and "BN") (for front wheel, 40833D)
1шт.
179849
BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5
2шт.
280136
NUT,3/8"-16, G8
2шт.
25-118
NUT,1/2"-20, G5
HEX NUT, 1/2" N.F.
4шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
2шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
4шт.
30
5630DX
FRONT WHEEL, male half with oil seal, 42183D (non-demountable) (special) ("B" and "BN"), 7.50 x 10
1шт.
16154R1
CAP SCREW, 5/8 x 7" hex head
4шт.
220080
GASKET
HEX NUT, 5/8" N.C.
4шт.
103325
LOCK WASHER,5/8"
WASHER, LOCK, 5/8"
4шт.
31
40833D
FRONT WHEEL, 2 halves, 5630DX and 5631DX with bolts (non- demountable) ("B" and "BN") (special), 7.50 x 10
1шт.
32
5631DX
FRONT WHEEL, female half with oil seal, 42183D (non-demountable) (special) ("B" and "BN"), 7.50 x 10
1шт.
55460DC
DOUBLE FRONT WHEEL ATTACHMENT, special ("B" and "BN")
1шт.
57097DD
ADJUSTABLE DOUBLE FRONT WHEEL ATTACHMENT, special (for "B" and "BN" tractors equipped with single front wheel)
1шт.
57098DB
ADJUSTABLE FRONT WHEEL ATTACHMENT, special (for "B" and "BN" tractors equipped with double front wheel attachment) (also for "A" tractors having adjustable front axle attachment)
1шт.
57894D
SINGLE FRONT WHEEL ATTACHMENT, special ("B" and "BN")
1шт.
58282D
SINGLE FRONT WHEEL ATTACHMENT, special ("B" and "BN") (for tractors equipped with double front wheels)
1шт.
351555R1
BOLT
FRONT WHEEL RIM BOLT (will work for 1/2 x 2-1/2" machine bolt)
6шт.
120371
NUT,1/2"-20, G5
6шт.
Kit P/N 360119R93 contains qty 1 of each of the following parts:
1шт.
13823V cone
1шт.
54631H cone
1шт.
54630H cup
1шт.
43440D cup
1шт.
49116D gasket
1шт.
43463D seal
1шт.
49117D ring
1шт.
49118DA washer
1шт.
55453D washer
1шт.
Выбрано товаров: 101
