Запчасти Case IH FARMALL BN (080) - CHASSIS, CLUTCH, ROCKFORD (12) - CHASSIS

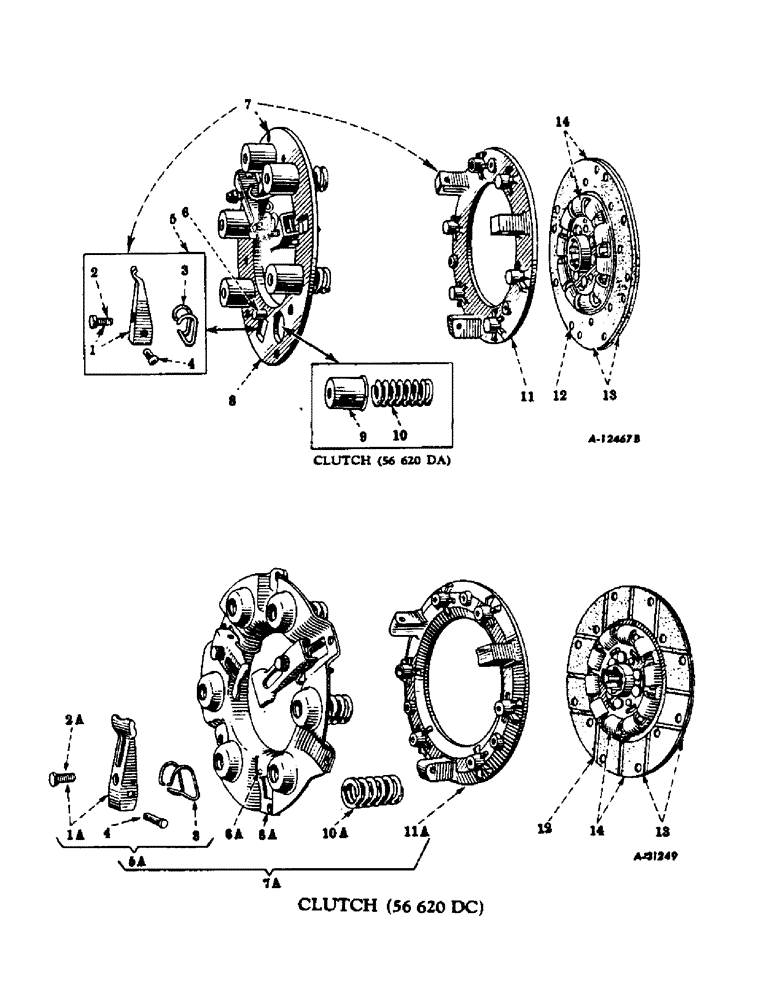

Схема запчастей Case IH FARMALL BN - (080) - CHASSIS, CLUTCH, ROCKFORD (12) - CHASSIS
6a
5
3
3
9
14
8
7a
7
12
1a
11
4
10
10a
2
6
2a
4
6a
13
13
12
14
1
8a
11a

Артикул

Название

Примечание

Количество

56620DC

CLUTCH (9") 353242R91 WITH DRIVEN MEMBER, 56631DB (optional with Atwood clutch 62600DAX) 501 to 87001, 87997 up (Mfr. CLA-1805-12)

1шт.

After tractor S/N 108222 Rockford and Atwood clutches are optional. Complete clutches are interchangeable but individual parts are not.

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3/4", G5, Full Thd

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

1

51457D

LEVER

LEVER WITH ADJUSTING SCREW, 51459D (use on clutch 56620DA) (Mfr. UCL-4372)

3шт.

1a

353243R91

LEVER

LEVER WITH ADJUSTING SCREW, 352745R1 (use on clutch 56620DC) (Mfr. UCL-1-4372)

3шт.

2

51459D

SCREW

ADJUSTING SCREW (use on clutch 56620DA) (Mfr. CL-4356)

3шт.

114494

NUT,Jam, 3/8"-24, G5

NUT, (Same as 27166H) (Mfr. CL-1608) Jam, 3/8"-24, G5

3шт.

2a

352745R1

BOLT,3/8" - 24 x 3/4", Class 2

ADJUSTING SCREW (use on clutch 56620DC) (Mfr. CL-7671)

3шт.

114494

NUT,Jam, 3/8"-24, G5

NUT, (Same as 27166H) (Mfr. CL-1608) Jam, 3/8"-24, G5

3шт.

3

51461D

SPRING

LEVER SPRING (Mfr. CL-4197)

3шт.

4

51460D

STUD

LEVER PIN (Mfr. CL-4196)

3шт.

432-68

COTTER PIN,3/32" x 1/2"

Pin, Split (Cotter), 3/32" x 1/2"

3шт.

5

353077R91

LEVER

CLUTCH LEVER, complete (use on clutch 56620DA) (Mfr. UCL-4372-C3)

1шт.

5a

353246R91

PACKAGE

CLUTCH LEVER, complete (use on clutch 56620DC) (Mfr. UCL-1-4372-C3)

1шт.

6

51455D

SPARE PART ADJUSTING SCREW SEAT (used on clutch 56620DA) (Mfr. CL-4287)

3шт.

6a

7911T

SEAT/SLOT

ADJUSTING SCREW SEAT (used on clutch 56620DC) (Mfr. CL-7670)

3шт.

7

51452D

COVER

CLUTCH, complete - less driven member complete (order 353242R91) (Mfr. UCLA-4534)

1шт.

7a

353242R91

COVER

CLUTCH, complete - less driven member complete (will work for 51452D) (Mfr. UCLA-7669)

1шт.

7a

1251692C91

REMAN-CLUTCH PLATE

Farmall A, Farmall AV, Farmall B,Farmall BN, Reman For New P/N 353242R91

1шт.

7a

1944233C1

CORE-CLUTCH PLATE

Return Part Number

1шт.

8

51453D

SPARE PART BACK PLATE WITH SCREW SEAT, 51455D (use on clutch 56620DA) (Mfr. UCL-4534)

1шт.

8a

352744R91

PLATE ASSY.

BACK PLATE WITH SCREW SEAT, 7911T (used on clutch 56620DC) (Mfr. UCL-7669)

1шт.

9

20090VB

SPRING CUP (used on clutch 56620DA)

6шт.

10

51462D

SPARE PART CLUTCH SPRING (will work for 20093VC) (used on clutch 56620DA) (Mfr. CL-505-3A)

6шт.

10

353078R91

SPARE PART CLUTCH SPRING PACKAGE (consists of 6 springs, 51462D) (used on clutch 56620DA) (Mfr. UCL-505-3A-S6)

1шт.

10a

353244R1

SPRING

CLUTCH SPRING (used on clutch 56620DC) (Mfr. CL-2317-15)

6шт.

10a

353245R91

PACKAGE

CLUTCH SPRING PACKAGE (consists of 6 springs, 353244R1) (used on clutch 56620DC) (Mfr. UCL-2317-15-S6)

1шт.

11

51456D

PLATE

PRESSURE PLATE (used on clutch 56620DA) (Mfr. CL-4535)

1шт.

11a

CL-4535-1

PRESSURE PLATE (used on clutch 56620DC) (Mfr. CL-4535-1)

1шт.

12

53795V

RIVET,Csk Hd, 3/16" x 5/16"

TUBULAR RIVET (brass) (will work for 38387D) (Mfr. CL-1011)

20шт.

13

30718DXA

FACING

CLUTCH FACING PACKAGE (2 facings) with 22 rivets, 53795V

1шт.

14

56631DB

DISC

DRIVEN MEMBER, complete (Mfr. UCL-2-3846-1)

1шт.

14

56631DBR

REMAN-CLUTCH DISC

Remanufactured, Clutch Disc - 9 in., 6Tooth hub, full face friction matl

1шт.

14

56631DBC

CORE-CLUTCH DISC

Return Part Number

1шт.
