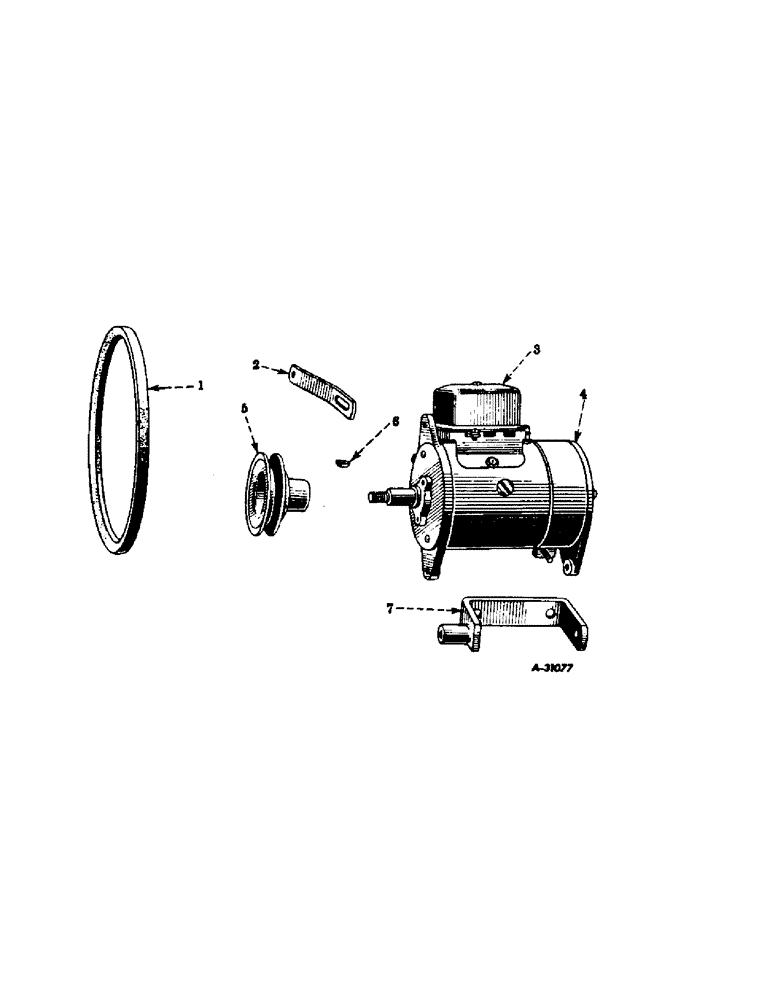

Запчасти Case IH FARMALL BN (050) - ELECTRICAL SYSTEM, GENERATOR, PULLEY AND BRACKET, DELCO-REMY, SPECIAL (06) - ELECTRICAL SYSTEMS

1

49291D

V-BELT,0.53" W

Generator

1шт.

2

49288DA

SPARE PART GENERATOR BRACE

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

220066

HEX NUT, 3/8" N.C.

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

Q397

WASHER

WASHER, 11/32" I.D. x 3/4" O.D. x no. 16 gauge

1шт.

3

46412D

GENERATOR

GENERATOR RELAY (Delco-Remy 1116766)

1шт.

132900

BOLT,Sl Rnd Hd, #10 - 32 x 3/8"

SLOTTED SCREW, no. 10-32 x 3/8" round head (Cadmium plated)

2шт.

493-41020

LOCK WASHER,Ext Tooth, #10

LOCKWASHER, no. 10 (external tooth)(Cadmium plated)

2шт.

120391

WASHER,#10

WASHER, 7/32" I.D. x 1/2" O.D. x no. 18 gauge (Cadmium plated)

2шт.

4

45634D

GENERATOR

GENERATOR WITH RELAY, 46412D (Delco-Remy 1101355)(order 356936R91)

1шт.

Refer to Delco-Remy electrical equipment parts catalog TC-45 when ordering detail parts for complete generator

1шт.

4

356936R91

GENERATOR

GENERATOR, complete (will work for 45634D)

1шт.

4

356937R91

GENERATOR

GENERATOR (Delco-Remy 1101423)

1шт.

4

103812A1R

REMAN-GENERATOR

Generator

1шт.

4

103812A1C

CORE-GENERATOR

Return Part Number

1шт.

4

103821A1R

REMAN-GENERATOR

Generator

1шт.

4

103821A1C

CORE-GENERATOR

Return Part Number

1шт.

4

87497945R

REMAN-ALTERNATOR

Kit to convert reman generator 103821R to an alternator. Kit includes: instruction sheet, hardware kit, 12 v. resistor ballast, wire harness, mounting brkt., tension brkt., reman alternator 12 volt 63 amp w/pulley & regulator.

1шт.

4

103821A1C

CORE-GENERATOR

Return Part Number

1шт.

4

104026A1R

REMAN-GENERATOR

Remanufactured Generator, 6 volt 11 ampere

1шт.

4

104026A1C

CORE-GENERATOR

Return Part Number, Generator, 6 volt 11 ampere

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

BOLT, Hex, 5/16"-18 x 1", G5, Full Thd

2шт.

220065

HEX NUT, 5/16" N.C.

1шт.

103047

PIN

HEX NUT, 1/2" N.C. (castellated)

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

103374

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

1шт.

Q1520

WASHER

STEEL WASHER, 17/32" I.D. x 1" O.D. x no. 14 gauge

1шт.

5

6812D

PULLEY

GENERATOR PULLEY

1шт.

6

103905

KEY

WOODRUFF KEY NO. 5, 1/8 x 5/8"

1шт.

7

49287DC

GENERATOR BRACKET

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

BOLT, 3/8 x 7/8" N.C. hex hd

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

356938R91

SPARE PART CABLE, generator "A" terminal to ground (used with generator, 356937R91) (Delco-Remy 1872924)

1шт.

356939R91

SPARE PART CABLE, generator "F" terminal to relay "F" terminal (used with generator, 356937R91) (Delco-Remy 1877569)

1шт.
