Запчасти Case IH FARMALL BN (152) - ATTACHMENTS, BELT PULLEY AND POWER TAKE-OFF, SPECIAL Attachments

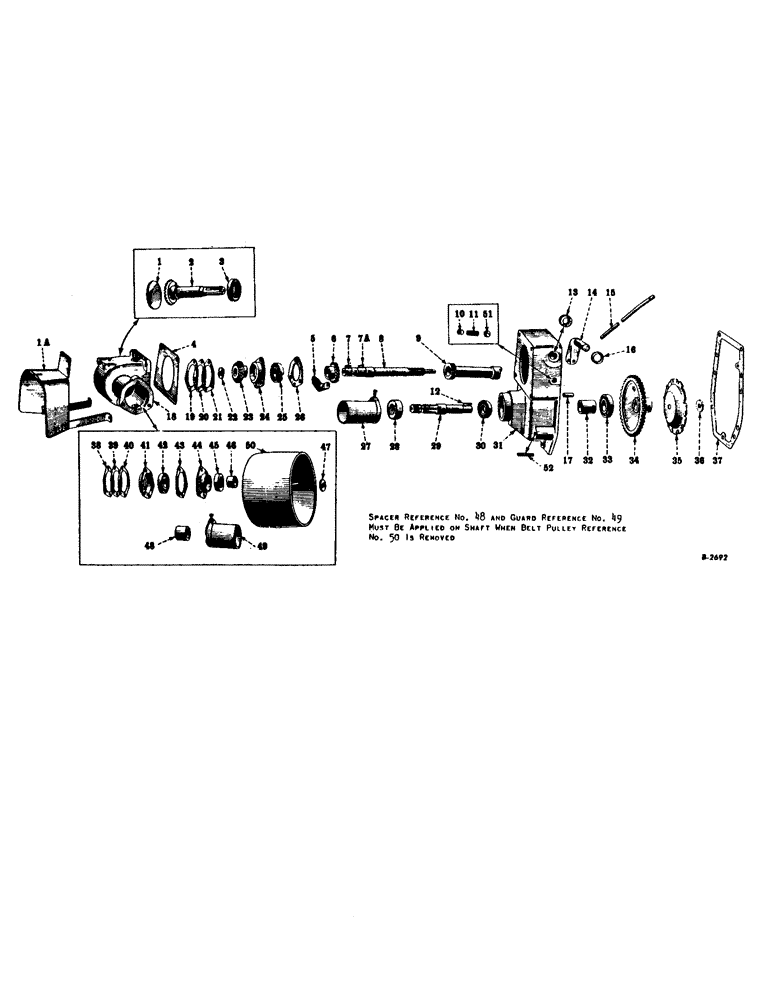

Схема запчастей Case IH FARMALL BN - (152) - ATTACHMENTS, BELT PULLEY AND POWER TAKE-OFF, SPECIAL Attachments
8
47
19
4
1a
26
52
50
42
28
7
9
37
48
44
21
7a
20
22
45
30
34
14
10
1
29
13
18
3
41
49
6
32
15
16
31
46
33
51
38
35
17
24
11
25
23
43
5
2
40
38
39
12
27

Артикул

Название

Примечание

Количество

48124DA

BELT PULLEY AND POWER TAKE-OFF ATTACHMENT (order 66186D)

1шт.

66186D

BELT PULLEY AND POWER TAKE-OFF ATTACHMENT (will work for 48104DA), Serial Range: 501-66670

1шт.

55408D

POWER TAKE-OFF SAFETY SHIELD ATTACHMENT (special with belt pulley and power take-off attachment, 48104D), Serial Range: 501-15334

1шт.

66191D

POWER TAKE-OFF STANDARDIZATION FIELD CHANGE PACKAGE (to convert tractors with 1-1/8" P.T.O. spline shaft to 1-3/8" spline shaft), Serial Range: 501-96389

1шт.

1

43670D

PLUG

BELT PULLEY DRIVE HOUSING END PLUG

1шт.

1a

55398DA

POWER TAKE-OFF SAFETY SHIELD (standard equipment) 15335 up

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8 x 7/8" N.C. hex hd

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

2

52632D

BELT PULLEY SHAFT, 23 teeth (order 353329R91), Start Serial: 501

1шт.

181395

BOLT,Hex, 7/16" - 20 x 1", Gr 5

CAP SCREW, 7/16 x 1" N.F. hex head

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

2

351627R1

SHAFT

BELT PULLEY SHAFT, 23 teeth, up

1шт.

181395

BOLT,Hex, 7/16" - 20 x 1", Gr 5

CAP SCREW, 7/16 x 1" N.F. hex head

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

3

63441H

BEARING, ROLLER, CYL,44.01mm ID x 72mm OD x 17mm W

BELT PULLEY SHAFT BEARING, inner (Hyatt 1207) (optional with 350500R91)

1шт.

3

350500R91

ROLLER BEARING,44.026 mm ID x 71.971 mm OD x 0.6693"

BELT PULLEY SHAFT BEARING, inner (Bower M-1207-EL) (optional with 63441H)

1шт.

4

48084D

BELT PULLEY DRIVE HOUSING GASKET

1шт.

5

48089DA

POWER TAKE-OFF DRIVE SHAFT OIL THROUGH

1шт.

6

351975R1

GEAR

POWER TAKE-OFF DRIVE PINION, 17 teeth (will work for 43624DA)

1шт.

7

7225T

KEY

BELT PULLEY DRIVE PINION KEY (Woodruff no. 11, 3/16 x 7/8")

1шт.

7a

7225T

KEY

POWER TAKE-OFF DRIVE PINION KEY (Woodruff no. 11, 3/16 x 7/8")

1шт.

8

52666D

POWER TAKE-OFF DRIVE SHAFT

1шт.

181395

BOLT,Hex, 7/16" - 20 x 1", Gr 5

CAP SCREW, 7/16 x 1" N.F. hex head

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

9

52668D

POWER TAKE-OFF SHIFTER, complete

1шт.

10

48102D

PIN

POWER TAKE-OFF SHIFTER POPPET

1шт.

11

48103D

VALVE SPRING

POWER TAKE-OFF SHIFTER POPPET SPRING

1шт.

12

66984D

WOODRUFF KEY,#126, 3/16" x 2 1/8", HT

POWER TAKE-OFF GEAR KEY (Woodruff no. 126, 3/16 x 2-1/8") (will work for 13552D)

1шт.

13

43645D

WASHER

POWER TAKE-OFF SHIFTER LEVER FELT WASHER

1шт.

14

53517DAX

POWER TAKE-OFF SHIFTER LEVER SHAFT, complete (will work for 48098D), Serial Range: 501-5907

1шт.

14

53517DA

AXLE PIN

POWER TAKE-OFF SHIFTER LEVER SHAFT, complete, 5908 up

1шт.

Q3478

WASHER

25/32" I.D. x 1-1/4" O.D. x no. 14 gauge

1шт.

103397

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

1шт.

15

43642D

POWER TAKE-OFF SHIFTER LEVER, Serial Range: 501-5907

1шт.

15

53515D

ROD

POWER TAKE-OFF SHIFTER LEVER, 5908 up

1шт.

16

Q3478

WASHER

FOLLOWS REFERENCE NO. 14

1шт.

17

17381D

POWER TAKE-OFF DRIVE HOUSING DOWEL PIN

2шт.

18

6614DAX

BELT PULLEY DRIVE HOUSING, complete

1шт.

186292

BOLT,Hex, 7/16" - 14 x 4 1/4", Gr 5

CAP SCREW, 7/16 x 4-1/4" N.C. hex head

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

103865

PIPE PLUG, 1/8"

1шт.

144000

PLUG

PIPE PLUG, 1" countersunk head (steel) (optional with 103876)

1шт.

103876

PIPE PLUG, 1" countersunk head (cast iron) (optional with 144000)

1шт.

19

47284D

SHIM

POWER TAKE-OFF DRIVE SHAFT BEARING CAGE SHIM, light

1шт.

20

47285D

SHIM

POWER TAKE-OFF DRIVE SHAFT BEARING CAGE SHIM, medium

1шт.

21

47286D

SHIM

POWER TAKE-OFF DRIVE SHAFT BEARING CAGE SHIM, heavy

1шт.

22

43262DA

WASHER

POWER TAKE-OFF DRIVE SHAFT WASHER

1шт.

23

43631D

PINION

BELT PULLEY DRIVE BEVEL PINION, 19 teeth (order 353329R91), Start Serial: 501

1шт.

23

351626R1

PINION

BELT PULLEY DRIVE BEVEL PINION, 19 teeth, up

1шт.

24

47281D

CAGE

POWER TAKE-OFF DRIVE SHAFT BEARING CAGE

1шт.

25

ST213

BALL BEARING,30 mm ID x 62 mm OD x 16 mm

POWER TAKE-OFF DRIVE SHAFT BEARING 9IC-C-230) (will work for ST212)

1шт.

26

48094D

POWER TAKE-OFF DRIVE SHAFT BEARING RETAINER, 501 TO 82578

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

27

51484DX

POWER TAKE-OFF SHAFT GUARD WITH CLAMP

1шт.

28

48114D

SEAL

POWER TAKE-OFF SHAFT OIL SEAL

1шт.

29

48091DA

POWER TAKE-OFF SHAFT (1-1/8" spline) (used with attachment 48104DA)

1шт.

181395

BOLT,Hex, 7/16" - 20 x 1", Gr 5

CAP SCREW, 7/16 x 1" N.F. hex head

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

29

66184D

SHAFT

POWER TAKE-OFF SHAFT (1-3/8" spline) (used with attachment 66186D)

1шт.

181395

BOLT,Hex, 7/16" - 20 x 1", Gr 5

CAP SCREW, 7/16 x 1" N.F. hex head

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

30

ST213

BALL BEARING,30 mm ID x 62 mm OD x 16 mm

POWER TAKE-OFF SHAFT BEARING (IH-C-230)

1шт.

31

6615DX

POWER TAKE-OFF DRIVE HOUSING, complete

1шт.

179860

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

CAP SCREW, 7/16 x 1-1/4" N.C. hex head

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

103884

PLUG,Slotted, 1/4" NPT

PIPE PLUG, 1/4" slotted head

1шт.

32

48092D

BUSHING

POWER TAKE-OFF SHAFT BEARING SPACER

1шт.

33

ST213

BALL BEARING,30 mm ID x 62 mm OD x 16 mm

POWER TAKE-OFF SHAFT BEARING (IH-C-230)

1шт.

34

351822R1

GEAR

POWER TAKE-OFF GEAR, 44 teeth (will work for 48090D)

1шт.

35

48093D

POWER TAKE-OFF SHAFT OIL SLINGER, Serial Range: 501-39021

1шт.

36

43262DA

WASHER

BELT PULLEY SHAFT WASHER

1шт.

37

46061DA

GASKET

POWER TAKE-OFF DRIVE HOUSING GASKET (optional with 60589), Serial Range: 501-39021

1шт.

37

60589D

POWER TAKE-OFF DRIVE HOUSING GASKET (will work for 46061DA) 39022 up

1шт.

38

48284D

BELT PULLEY SHAFT BEARING CAGE SHIM, light

1шт.

39

48285D

BELT PULLEY SHAFT BEARING CAGE SHIM, medium

1шт.

40

47286D

SHIM

BELT PULLEY SHAFT BEARING GAGE SHIM, heavy

1шт.

41

47281D

CAGE

BELT PULLEY SHAFT BEARING CAGE

1шт.

42

ST213

BALL BEARING,30 mm ID x 62 mm OD x 16 mm

BELT PULLEY SHAFT BEARING, outer (IH-C-230) (will work for ST212)

1шт.

43

47283D

BELT PULLEY SHAFT BEARING CAGE GASKET

1шт.

44

48085DBX

FLANGE

BELT PULLEY SHAFT BEARING RETAINER WITH OIL SEAL, 48954D (optional with 365003R11)

1шт.

44

365003R11

BELT PULLEY SHAFT BEARING RETAINER WITH OIL SEAL, 48954D (optional with 48085DBX)

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4" N.C. hex

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

45

48954D

SEAL

BELT PULLEY SHAFT OIL SEAL

1шт.

46

43630D

SPACER

BELT PULLEY SHAFT SPACER

1шт.

47

43262DA

WASHER

POWER TAKE-OFF SHAFT WASHER

1шт.

48

48087D

BELT PULLEY SPACER

1шт.

49

48086DX

BELT PULLEY SHAFT GUARD WITH CLAMP, 501 TO 5848

1шт.

49

54001DX

GUARD

BELT PULLEY SHAFT GUARD WITH CLAMP, 5849 UP

1шт.

50

8257D

BELT PULLEY (8-1/2" dia. - 6" face)

1шт.

50

58517D

BELT PULLEY (10-1/2" dia. x 6-1/2" face) (optional with 358392R91)

1шт.

50

358392R91

BELT PULLEY (10-1/2" dia. x 6-1/2" face) (optional with 58517D)

1шт.

51

103884

PLUG,Slotted, 1/4" NPT

FOLLOWS REFERENCE NO. 31

1шт.

52

55402D

POWER TAKE-OFF DRIVE HOUSING STUD

2шт.

220067

PIPE

HEX NUT, 7/16" N.C.

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

353329R91

BELT PULLEY SHAFT AND DRIVE BEVEL PINION SERVICE PACKAGE (consists of pinion 351626R1 and shaft 351627R1) (will work for 43631D and 52632D)

1шт.

Выбрано товаров: 98
