Запчасти Case IH FARMALL BN (150) - ATTACHMENTS, PNEUMATIC TIRE PUMP, ENGINAIR, SPECIAL Attachments

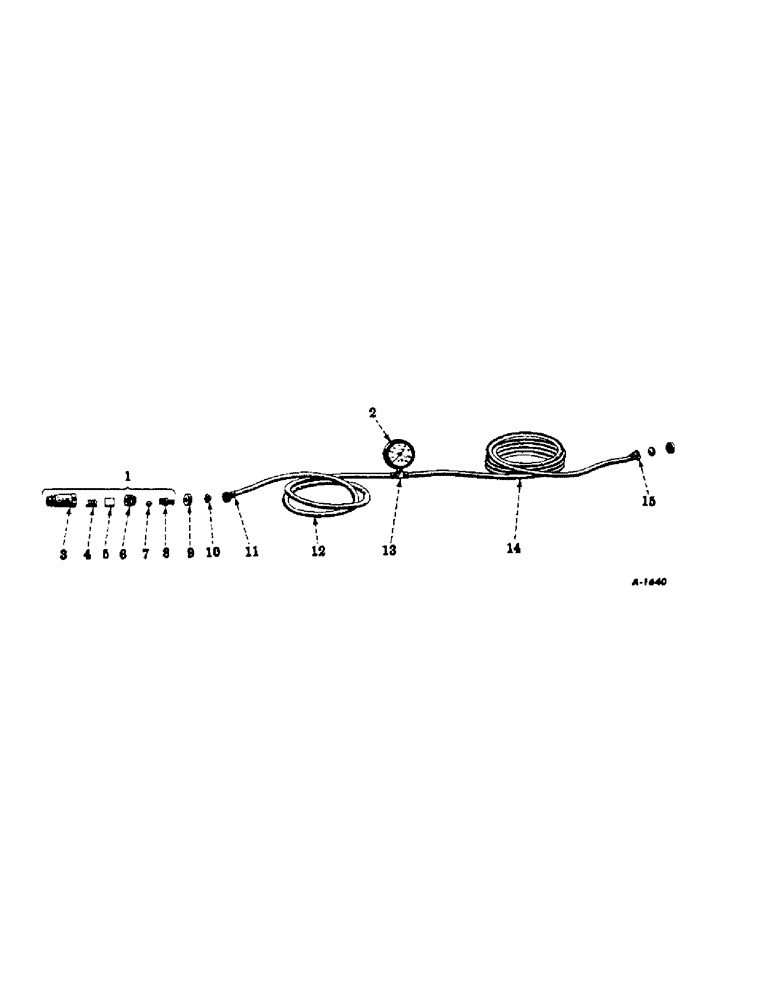

Схема запчастей Case IH FARMALL BN - (150) - ATTACHMENTS, PNEUMATIC TIRE PUMP, ENGINAIR, SPECIAL Attachments
8
3
12
2
10
13
4
15
11
5
7
9
1
6
14

Артикул

Название

Примечание

Количество

39604DA

PUMP

TIRE PUMP, complete - with gauge (optional with Schraeder pump, 39622D) (Mfr. 18G)

1шт.

1

40617DA

ELEMENT

PUMPING ELEMENT, complete (less hose and air chuck) (Mfr. 18 PE-Univ)

1шт.

69912D

SWIVEL NUT (Mfr. SNA)

1шт.

2

37895DA

AIR GAUGE (special) (Mfr. AG)

1шт.

3

61560D

BARREL - 18 M. M. (Mfr. 18 BN)

1шт.

4

61563D

SPOOL

(2 halves) (order 70313D) (Mfr. VCN)

1шт.

5

61564D

VALVE

FLAP VALVE (2 halves)

1шт.

6

40613D

HEAD (order 69911DX) (Mfr. HS)

1шт.

6

69911D

HEAD (Mfr. HS AT)

1шт.

6

69911DX

ASSEMBLY

HEAD WITH UNIVERSAL NIPPLE, 70312D (will work for 40613D) (Mfr. HSAT-UNIV)

1шт.

7

37886D

BALL

STAINLESS STEEL BALL, 5/16"

1шт.

8

40616D

HOSE NIPPLE (used with head, 40613D)

1шт.

8

70312D

UNIVERSAL NIPPLE (used with head, 69911D) (Mfr. UNIV)

1шт.

9

61566D

AIR CHUCK CAP, 3/4" (used with 61565D) (Mfr. ACCN)

2шт.

10

61567D

AIR CHUCK RUBBER, 11/16" (used with 61565D) (Mfr. 182CR)

2шт.

11

37890D

HOSE CLAMP RING (Mfr. HCR)

4шт.

12

37892D

HOSE, 4 ft. (Mfr. 4H)

1шт.

13

37893D

GAUGE CONNECTION (Mfr. GC)

1шт.

14

37891D

HOSE (Mfr. 12H)

1шт.

15

357375R91

AIR CHUCK, 3/4" (will work for 61565D) (Mfr. ACBN)

2шт.

37896DA

PUMP

CLOTH BAG WITH INSTRUCTIONS (Mfr. All-3)

1шт.

Выбрано товаров: 21
