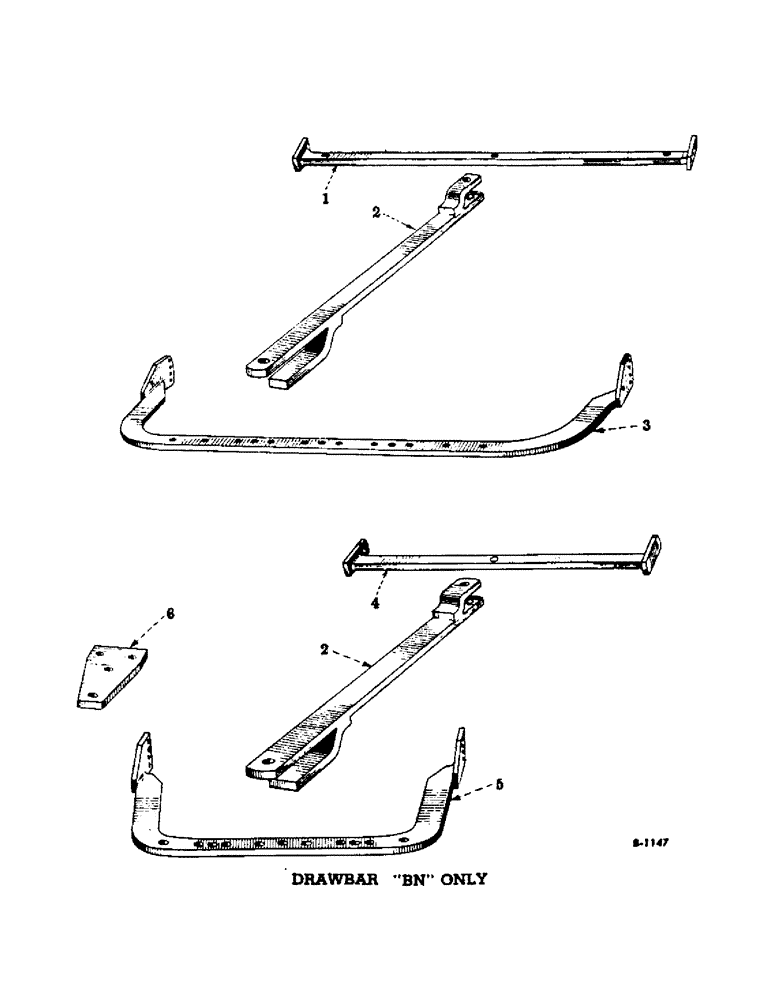

Запчасти Case IH FARMALL B (122) - CHASSIS, DRAWBARS, FOR "B" AND "BN" TRACTORS (12) - CHASSIS

52989DA

SWINGING DRAWBAR ATTACHMENT (special) ("B" only)

1шт.

58849D

SWINGING DRAWBAR ATTACHMENT (special) ("BN" only)

1шт.

1

52992DX

SWINGING DRAWBAR ANCHOR BAR WITH PLATES (special) ("B" only), Serial Range: 501-11487

1шт.

181488

CAP SCREW, 5/8 x 3" N.F. hex head

2шт.

425-1110

NUT,5/8"-18, G5

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

Q1538

WASHER

21/32 I.D. x 1-1/4" O.D. x no. 12 ga.

1шт.

Q1538

WASHER

21/32 I.D. x 1-1-4/" O.D. x no. 18 ga.

1шт.

1

55245DX

SWINGING DRAWBAR ANCHOR BAR WITH PLATES (special) ("B" only) 11488 up

1шт.

181488

CAP SCREW, 5/8" x 3" N.F. hex head

2шт.

425-1110

NUT,5/8"-18, G5

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

Q1538

WASHER

21/32 I.D. x 1-1/4" O.D. x no. 12 ga.

1шт.

Q1538

WASHER

21/32 I.D. x 1-1/4" O.D. x no. 18 ga.

1шт.

2

52990DX

SWINGING DRAWBAR WITH CLIPS (special), Serial Range: 501-11487

1шт.

181488

CAP SCREW, 5/8 x 3" N.F. hex. head

1шт.

13296R1

MACHINE BOLT, 3/4 x 1-1/2"

2шт.

425-1110

NUT,5/8"-18, G5

1шт.

114821

HEX. NUT, 3/4" N.C.

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

2

55242DX

SWINGING DRAWBAR WITH CLIPS (special), 11488 up

1шт.

181488

CAP SCREW, 5/8 x 3" N.F. hex. head

1шт.

13296R1

MACHINE BOLT, 3/4 x 1-1/2"

2шт.

425-1110

NUT,5/8"-18, G5

1шт.

114821

HEX. NUT, 3/4" N.C.

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

3

49372DBXA

DRAWBAR, complete, L.H. and R.H. (standard) ("B" only)

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

2шт.

181488

CAP SCREW, 5/8 x 3" N.F. hex. head

2шт.

425-1110

NUT,5/8"-18, G5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

4

58847DX

SWINGING DRAWBAR ANCHOR BAR WITH PLATES (special) ("BN" only)

1шт.

181488

CAP SCREW, 5/8" x 3" N.F. hex. head

2шт.

425-1110

NUT,5/8"-18, G5

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

Q1538

WASHER

21/32 I.D. x 1-1/4" O.D. x no. 12 ga.

1шт.

Q1538

WASHER

21/32 I.D. x 1-1/4" O.D. x no. 18 ga.

1шт.

5

58846DXA

DRAWBAR, complete, L.H. and R.H. (standard) ("BN" only)

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

2шт.

181488

CAP SCREW, 5/8 x 3" N.F. hex. head

2шт.

425-1110

NUT,5/8"-18, G5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

6

66185D

BAR

DRAWBAR EXTENSION

1шт.

179954

CAP SCREW, 3/4 x 2-1/2" N.C. hex head

2шт.

114821

HEX NUT, 3/4" N.C.

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.
