Запчасти Case IH FARMALL B (082) - CHASSIS, CLUTCH, ATWOOD (12) - CHASSIS

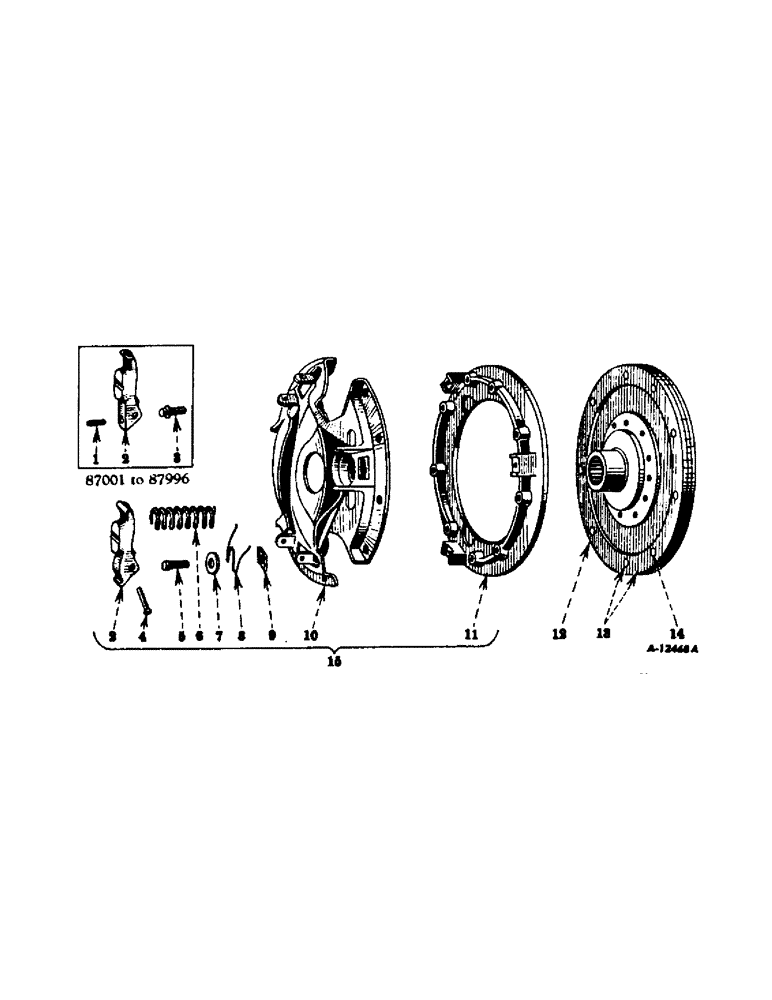

Схема запчастей Case IH FARMALL B - (082) - CHASSIS, CLUTCH, ATWOOD (12) - CHASSIS
9
4
12
8
5
3
6
3
15
13
7
14
1
10
2
11

Артикул

Название

Примечание

Количество

626DAX

CLUTCH (9") WITH DRIVEN MEMBER, 351297R92 to 87996 (optional with Rockford clutch 56620DC) 108223 up (Mfr. 9000-3)

1шт.

After tractor S/N 108222 Rockford and Atwood clutches are optional. Complete clutches are interchangeable but individual parts are not.

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

1

63159D

ADJUSTING SCREW 87001 to 87996 (Mfr. 3110)

3шт.

114492

JAM NUT,Jam, 1/4"-28, G5

HEX JAM NUT, 1/4" N.F.

3шт.

2

63150D

CLUTCH LEVER (order 69904DX) 87001 to 87996 (Mfr. 3128)

3шт.

2

63158DX

CLUTCH LEVER, 63158D with one screw, 63159D and two nuts, 114492 (order 69904DX), Serial Range: 87001-87996

3шт.

2

69904DX

CLUTCH LEVER PACKAGE (will work for 63158D and 63158DX), Serial Range: 87001-87996

1шт.

2

69904D

CLUTCH LEVER 108223 up (Mfr. 610)

3шт.

3

63975D

CLUTCH BRACKET BOLT 87001 to 87996 (Mfr. 3133)

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

4

63161D

PIVOT PIN (1-5/8") (Mfr. 3132)

3шт.

4

35455R1

PIVOT PIN (1-11/16")

3шт.

5

69905D

ADJUSTING SCREW 108223 up (Mfr. 611)

3шт.

114493

JAM NUT,Jam, 5/16"-24, G5

3шт.

6

63160D

PRESSURE SPRING (Mfr. 318)

3шт.

7

63157D

ADJUSTING SCREW WASHER (Mfr. 2338)

3шт.

8

2817

RETURN SPRING (Mfr. 2817)

3шт.

9

63156D

RETURN SPRING STOP (Mfr. 3127)

3шт.

10

63154D

CLUTCH BRACKET (Mfr. 3125)

1шт.

11

63153D

PRESSURE PLATE (Mfr. 3130)

1шт.

12

62601D

CLUTCH DRIVEN MEMBER (order 351297R92) (Mfr. 9002-2)

1шт.

12

351297R92

DISC

CLUTCH DRIVEN MEMBER (Mfr. 9002-8)

1шт.

13

63973DX

EXCITER

PLATE FACING PACKAGE WITH 10 RIVETS, 63974D (order 351467R91)

1шт.

13

351467R91

FACING, CLUTCH

CLUTCH FACING PACKAGE (2 facing with 10 rivets, 63974D) (will work for 63973DX) (used with member, 351297R91)

1шт.

13

30718DXA

FACING

CLUTCH FACING PACKAGE (consists of two grooved facings with twenty-two rivets, 53795V) (used with member, 351297R92)

1шт.

14

63974D

FACING RIVET (used with facing, 351467R91) (Mfr. 366)

10шт.

14

53795V

RIVET,Csk Hd, 3/16" x 5/16"

FACING RIVET (used with facing, 30718DXA)

20шт.

15

62600DA

PLATE

CLUTCH, complete - less driven member (Mfr. 9001-3)

1шт.

Выбрано товаров: 30
