Запчасти Case IH FARMALL B (173) - ATTACHMENTS, DRAWBAR PINTLE HOOK Attachments

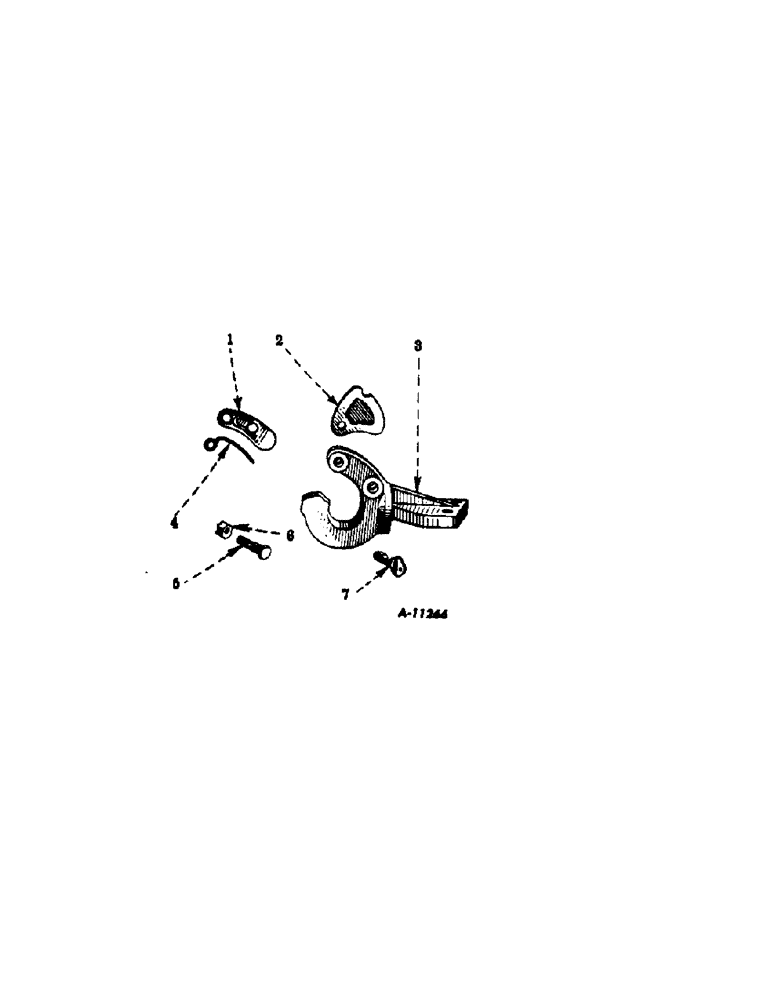

Схема запчастей Case IH FARMALL B - (173) - ATTACHMENTS, DRAWBAR PINTLE HOOK Attachments
7
3
4
1
5
2
6

Артикул

Название

Примечание

Количество

65463D

DRAWBAR PINTLE HOOK ATTACHMENT

1шт.

1

18397D

PINTLE HOOK LATCH COVER

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

CAP SCREW, 5/16 x 1/2" N.C. hex head

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

2

18398D

PINTLE HOOK LATCH

1шт.

3

9529D

DRAWBAR PINTLE HOOK

1шт.

181515

CAP SCREW, 3/4 x 3" N.F. hex head

2шт.

103031

TROUGH

HEX NUT, 3/4" N.F.

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

4

18395D

PINTLE HOOK LATCH SPRING

1шт.

5

18393D

PINTLE HOOK LATCH BOLT

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

6

70119D

NUT

PINTLE HOOK LATCH BOLT NUT

1шт.

7

18392D

PINTLE HOOK LATCH PIN

1шт.

Выбрано товаров: 14
