Запчасти Case IH FARMALL B (158) - ATTACHMENTS, POWER TAKE-OFF, SPECIAL Attachments

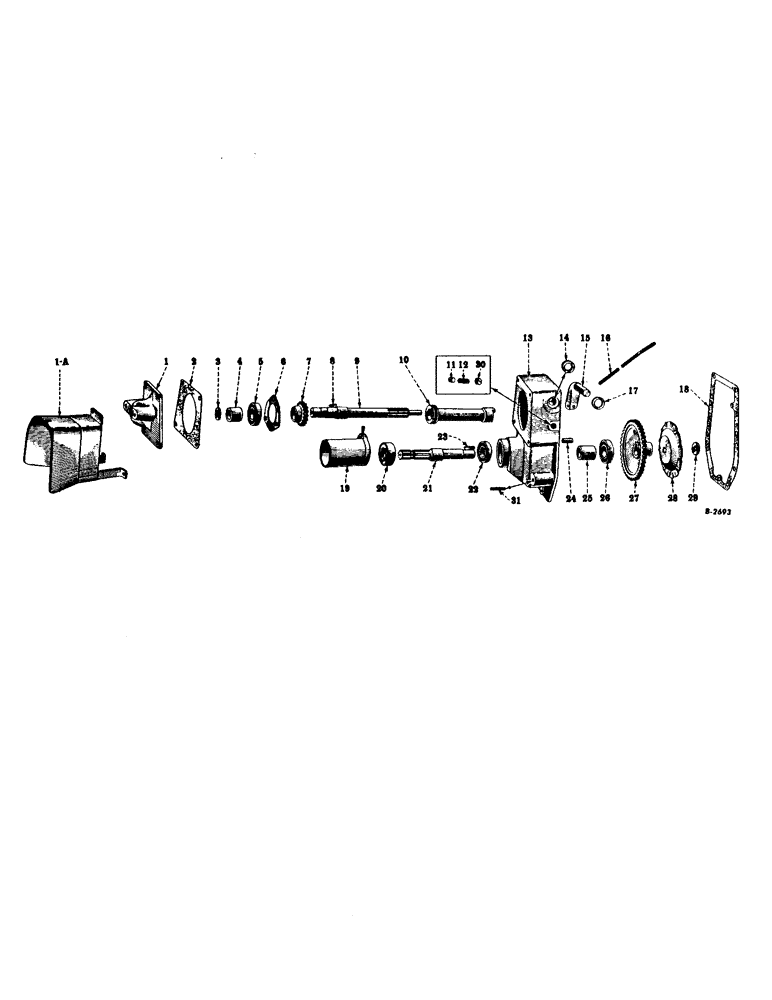

Схема запчастей Case IH FARMALL B - (158) - ATTACHMENTS, POWER TAKE-OFF, SPECIAL Attachments
2
31
29
4
21
1
30
28
18
24
6
19
16
15
29
8
14
10
9
7
20
22
3
1a
5
17
13
27
26
25
12
11

Артикул

Название

Примечание

Количество

48153DA

POWER TAKE-OFF ATTACHMENT (order 66187D)

1шт.

66187D

POWER TAKE-OFF ATTACHMENT (will work for 48153DA), Serial Range: 501-66670

1шт.

55409D

POWER TAKE-OFF SAFETY SHIELD ATTACHMENT (special) (with power take-off attachment, 48153D), Serial Range: 501-19974

1шт.

66191D

POWER TAKE-OFF STANDARDIZED FIELD CHANGE PACKAGE (to convert tractors with 1-1/8" spline shaft to 1-3/8" spline shaft), Serial Range: 501-96389

1шт.

1

6629DA

POWER TAKE-OFF COVER

1шт.

186292

BOLT,Hex, 7/16" - 14 x 4 1/4", Gr 5

CAP SCREW, 7/16 x 4-1/4" N.C. hex head

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

1a

55403DA

POWER TAKE-OFF SAFETY SHIELD, 19975 UP

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8 x 7/8" N.C. hex hd

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

2

48084D

POWER TAKE-OFF COVER GASKET

1шт.

3

43262DA

WASHER

POWER TAKE-OFF DRIVE SAHFT WASHER

1шт.

4

48152D

SPACER

POWER TAKE-OFF DRIVE SHAFT SPACER

1шт.

5

ST213

BALL BEARING,30 mm ID x 62 mm OD x 16 mm

POWER TAKE-OFF DRIVE SHAFT BEARING (IH-C-230) (will work for ST212)

1шт.

6

48094D

POWER TAKE-OFF DRIVE SHAFT BEARING RETAINER, 501 TO 82578

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

7

43624DA

PINION

POWER TAKE-OFF DRIVE PINION, 17 teeth

1шт.

8

7225T

KEY

POWER TAKE-OFF DRIVE PINION KEY (Woodruff no. 11, 3/16 x 7/8")

1шт.

9

52666D

POWER TAKE-OFF DRIVE SHAFT

1шт.

181395

BOLT,Hex, 7/16" - 20 x 1", Gr 5

CAP SCREW, 7/16 x 1" N.F. hex head

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

10

52668D

POWER TAKE-OFF SHIFTER

1шт.

11

48102D

PIN

POWER TAKE-OFF SHIFTER POPPET

1шт.

12

48103D

VALVE SPRING

POWER TAKE-OFF SHIFTER POPPET SPRING

1шт.

13

6615DX

POWER TAKE-OFF DRIVE HOUSING, complete

1шт.

179860

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

CAP SCREW, 7/16 x 1-1/4" N.C. hex head

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

103884

PLUG,Slotted, 1/4" NPT

PIPE PLUG, 1/4" slotted head

1шт.

14

43645D

WASHER

POWER TAKE-OFF SHIFTER LEVER FELT WASHER

1шт.

15

53517DA

AXLE PIN

POWER TAKE-OFF SHIFTER LEVER SHAFT, complete, 5908 up

1шт.

103397

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

1шт.

Q3478

WASHER

25/32" I.D. x 1-1/4" O.D. x no. 14 gauge

1шт.

15

53517DAX

POWER TAKE-OFF SHIFTER LEVER SHAFT, complete (will work for 48098D), Serial Range: 501-5907

1шт.

16

43642D

POWER TAKE-OFF SHIFTER LEVER, Serial Range: 501-5907

1шт.

16

53515D

ROD

POWER TAKE-OFF SHIFTER LEVER, 5908 up

1шт.

17

Q3478

WASHER

FOLLOWS REFERENCE NO. 15

1шт.

18

46061DA

GASKET

POWER TAKE-OFF DRIVE HOUSING GASKET (optional with 60589D), Serial Range: 501-39021

1шт.

18

60589D

POWER TAKE-OFF DRIVE HOUSING GASKET (will work for 46061DA) 39022 up

1шт.

19

51484DX

POWER TAKE-OFF SHAFT GUARD WITH CLAMP

1шт.

20

48114D

SEAL

POWER TAKE-OFF SHAFT OIL SEAL

1шт.

21

48091DA

POWER TAKE-OFF SHAFT (1-1/8" spline) (used with attachment 48153DA)

1шт.

181395

BOLT,Hex, 7/16" - 20 x 1", Gr 5

CAP SCREW, 7/16 x 1" N.F. hex head

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

21

66184D

SHAFT

POWER TAKE-OFF SHAFT (1-3/8" spline) (used with attachment 66187D)

1шт.

22

ST213

BALL BEARING,30 mm ID x 62 mm OD x 16 mm

POWER TAKE-OFF SHAFT BEARING (IH-C-230)

1шт.

23

66984D

WOODRUFF KEY,#126, 3/16" x 2 1/8", HT

POWER TAKE-OFF GEAR KEY (Woodruff no. 126 - 3/16 x 2-1/8") (will work for 13552D)

1шт.

24

17581D

POWER TAKE-OFF DRIVE HOUSING DOWEL PIN

2шт.

25

48092D

BUSHING

POWER TAKE-OFF SHAFT BEARING SPACER

1шт.

26

ST213

BALL BEARING,30 mm ID x 62 mm OD x 16 mm

POWER TAKE-OFF SHAFT BEARING (IH-C-230)

1шт.

27

351822R1

GEAR

POWER TAKE-OFF GEAR, 44 teeth (will work for 48090D)

1шт.

28

48093D

POWER TAKE-OFF SHAFT OIL SLINGER, Serial Range: 501-39021

1шт.

29

43262DA

WASHER

POWER TAKE-OFF SHAFT WASHER

1шт.

30

103884

PLUG,Slotted, 1/4" NPT

FOLLOWS REFERENCE NO. 13

1шт.

31

55402D

POWER TAKE-OFF DRIVE HOUSING STUD

2шт.

220067

PIPE

HEX NUT, 7/16" N.C.

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

Выбрано товаров: 57
