Запчасти Case IH FARMALL B (141) - ATTACHMENTS, PRE-SCREENER, SPECIAL, DONALDSON MANUFACTURING COMPANY Attachments

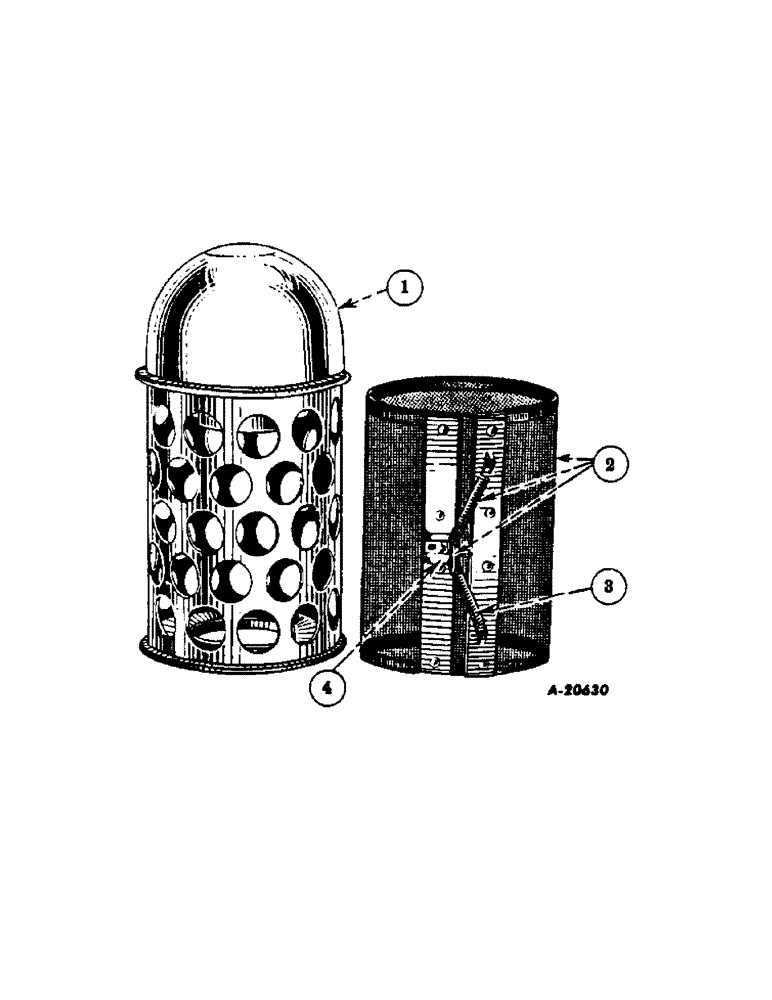

Схема запчастей Case IH FARMALL B - (141) - ATTACHMENTS, PRE-SCREENER, SPECIAL, DONALDSON MANUFACTURING COMPANY Attachments
1
4
2
3

Артикул

Название

Примечание

Количество

353409R91

AIR CLEANER PRE-SCREENER

1шт.

1

353632R91

PRE-SCREENER BODY ASSEMBLY (Mfr. P-6970)

1шт.

2

353637R91

SCREEN

PRE-SCREENER SCREEN WITH 2 SPRINGS, 353639R1 and 1 clip, 353758R1 (Mfr. P-7761)

1шт.

3

353639R1

VALVE SPRING

SCREEN LOCK TENSION SPRING (Mfr. P-8515)

2шт.

4

353758R1

CLIP

SCREEN LOCK SPRING CLIP (Mfr. P-8516)

1шт.

Выбрано товаров: 5
