Запчасти Case IH FARMALL B (136) - ATTACHMENTS, RADIATOR SHUTTER, CONTROLS AND HEAT INDICATOR Attachments

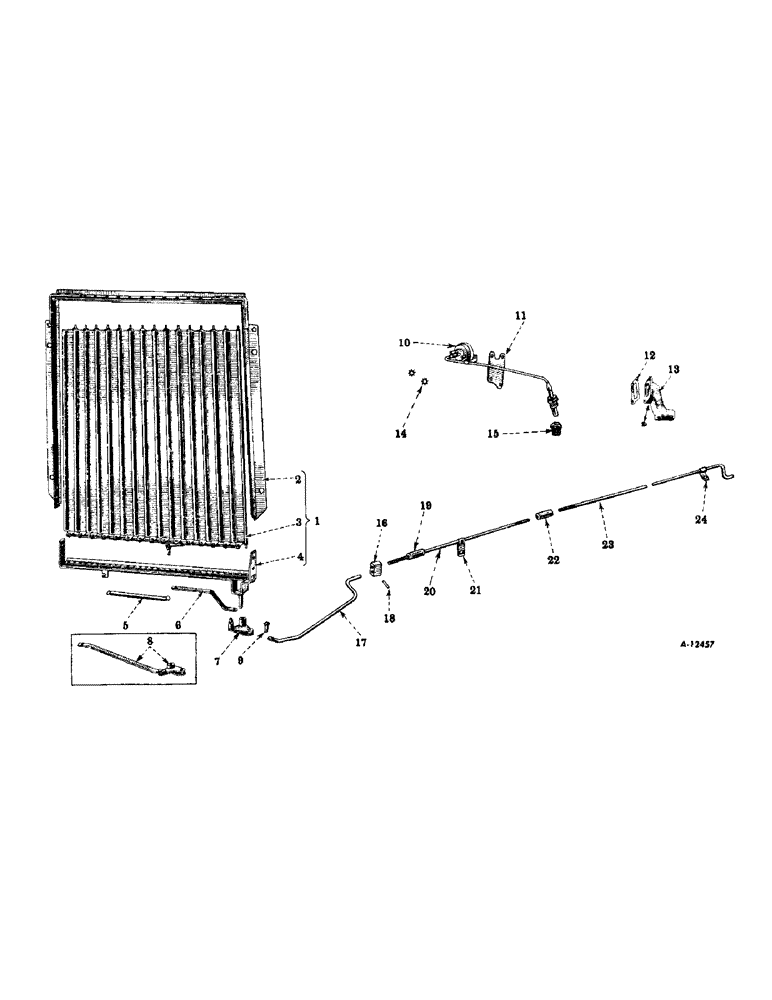

Схема запчастей Case IH FARMALL B - (136) - ATTACHMENTS, RADIATOR SHUTTER, CONTROLS AND HEAT INDICATOR Attachments
8
22
6
23
19
17
7
16
1
2
13
9
18
15
24
5
12
3
20
11
10
4
14
21

Артикул

Название

Примечание

Количество

51419DC

RADIATOR SHUTTER ATTACHMENT

1шт.

51420DA

SHUTTER AND CONNECTIONS, complete

1шт.

1

65429D

SHUTTER UNIT (hardy type) (Mfr. 18362)

1шт.

2

53008DA

FRAME AND BEARING BAR (defiance type) (Mfr. 70066)

1шт.

2

18361

HOSE,1.25" ID x 5.00", SAE 100R3

FRAME AND BEARING BAR (hardy type) (Mfr. 18361)

1шт.

3

53005D

SHUTTER AND OPERATING BAR (defiance type) (Mfr. 70055)

1шт.

3

65421D

SHUTTER AND OPERATING BAR (hardy type) (Mfr. 18354)

1шт.

4

53006D

BOTTOM TIE BAR AND BEARING BAR (defiance type) (Mfr. 70053)

1шт.

4

65426D

BOTTOM TIE BAR AND BEARING BAR (hardy type) (Mfr. 18359)

1шт.

NLS

NO LONGER SERVICED

MACHINE SCREW, 1/4" - 20 X 1/2" ROUND HEAD

4шт.

843381C1

SQUARE NUT,Sq. 1/4"-20

HEX NUT, 1/4" - 20 N.C.

4шт.

115109

WASHER,1/4"

1/4"

4шт.

5

37730D

BELL CRANK OPERATING LINK SPRING (hardy type) (Mfr. 3173)

1шт.

5

53004D

SPRING (defiance type) (Mfr. 70067)

1шт.

6

65430D

OPERATING LINK (hardy type)

1шт.

7

65423D

BELLCRANK, bushing and stud (hardy type)

1шт.

8

53007D

BELLCRANK AND OPERATING LINK (defiance type) (Mfr. 70063)

1шт.

9

51427D

RADIATOR SHUTTER CONTROL ROD PIN, 1/4" (order 65431D

1шт.

9

65431D

BELL CRANK AND OPERATING LINK PIN, 1/4" (will work for 51427D) (hardy type) (Mfr. 18347)

1шт.

10

49039DB

HEAT INDICATOR (order 53619DC with bracket 53620D

1шт.

10

53619DC

GAUGE

HEAT INDICATOR (will work for 49039DB)

1шт.

11

50495D

HEAT INDICATOR BRACKET, Serial Range: 501-11091

1шт.

11

53620D

HEAT INDICATOR BRACKET 11092 up

1шт.

179812

GEAR

CAP SCREW, 5/16 x 1/2" N.C. hex head

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

12

46871D

GASKET

WATER INLET ELBOW GASKET

1шт.

13

6764DAX

WATER INLET ELBOW WITH PLUG, 103869 (will work for 6501DA)

1шт.

14

125750

WASHER, no. 12 external-tooth

2шт.

15

51510D

BUSHING

REDUCING BUSHING

1шт.

16

8161D

RADIATOR SHUTTER CONTROL ROD CARRIER

1шт.

17

51421D

RADIATOR SHUTTER CONTROL ROD, front

1шт.

18

142485

GROOVED PIN,1/8" x 5/8", Type A

Pin, Grooved, , radiator shutter control rod, rear, coupling (same as 38146D) 1/8" x 5/8", Type A

1шт.

19

60596D

RADIATOR SHUTTER CONTROL ROD CENTER STOP

1шт.

20

52506DAX

RADIATOR SHUTTER CONTROL ROD, center with stop, 60596D

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

21

51423D

RADIATOR SHUTTER CONTROL ROD BRACKET, front

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

22

52507D

RADIATOR SHUTTER CONTROL ROD COUPLING

1шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

23

51422D

RADIATOR SHUTTER CONTROL ROD, REAR

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

Q243

WASHER

21/64" I.D. x 3/4" O.D. x no. 16 gauge

2шт.

24

51424DA

RADIATOR SHUTTER CONTROL ROD BRACKET, rear

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.

13000R1

HEX NUT, 1/4" N.C.

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

217-442

PLUG,3/4" - 14

PIPE PLUG, 1/2" SQUARE HEAD

1шт.

Выбрано товаров: 48
