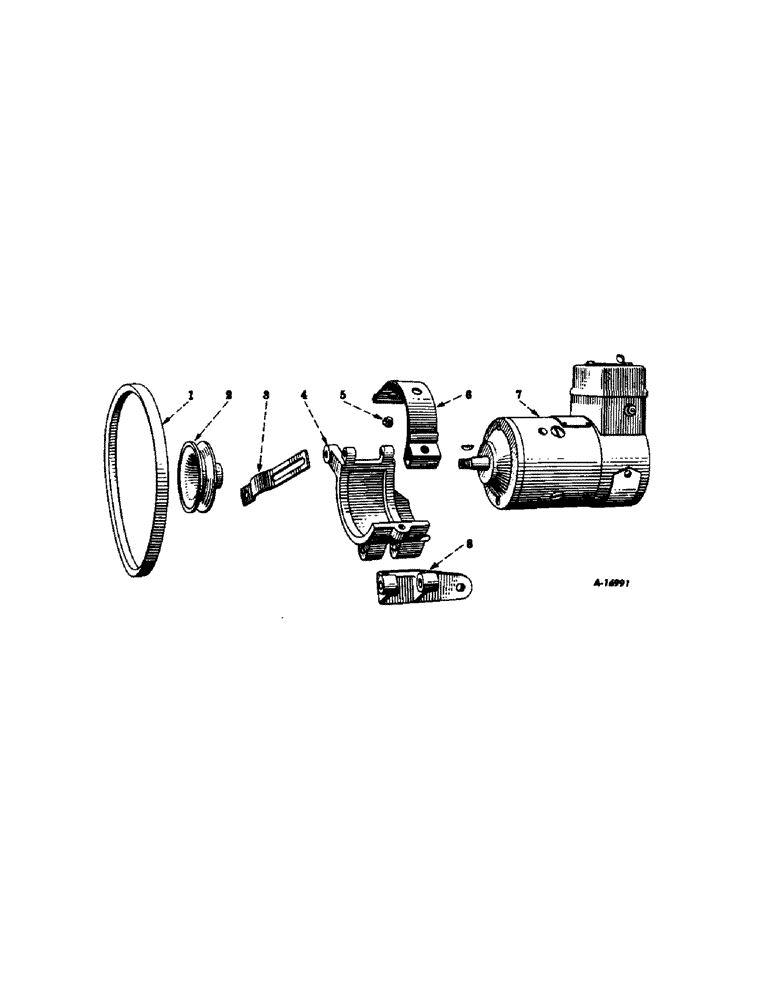

Запчасти Case IH FARMALL AV (049) - ELECTRICAL SYSTEM, GENERATOR PULLEY AND BRACKET, BOSCH "NO-BATTERY" TYPE, SPECIAL (06) - ELECTRICAL SYSTEMS

1

52318DA

V-BELT,0.55" W

Generator 0.55" W

1шт.

2

9191D

GENERATOR PULLEY

1шт.

3

61469DA

GENERATOR BRACE

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

1шт.

220066

HEX, nut, 3/8" N.C.

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

95-11034

WASHER,1/4"

STEEL WASHER, 11/32" I.D. x 11/16" O.D. x No. 16 gauge

1шт.

4

9190D

GENERATOR SADDLE

1шт.

186312

BOLT

CAP SCREW, 3/8 x 4" N.F. hex head

1шт.

103026

NUT,3/8"-24, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

5

28309D

GENERATOR DOWEL PIN

1шт.

6

26080DB

GENERATOR STRAP

1шт.

179822

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

1шт.

181326

CAP SCREW, 1/4 x 2-3/4" N.F. hex head

1шт.

25-114

NUT,1/4"-28, G5

HEX, nut, 1/4" N.F.

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

7

61875D

GENERATOR (Bosch No. ARJF 75/6-900-A16) (Includes Woodruff key, NKE 5/1, nut, WMU 5 11/2 and lockwasher, WA 7-16) (No longer supplied for service)

1шт.

All service and replacement parts for generator should be referred to an authorized. United American Bosch Corporation service station, located in all principal cities. Orders must show Bosch generator number, part number and name.

1шт.

8

9189D

GENERATOR BRACKET

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4" N.C. hex

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.
