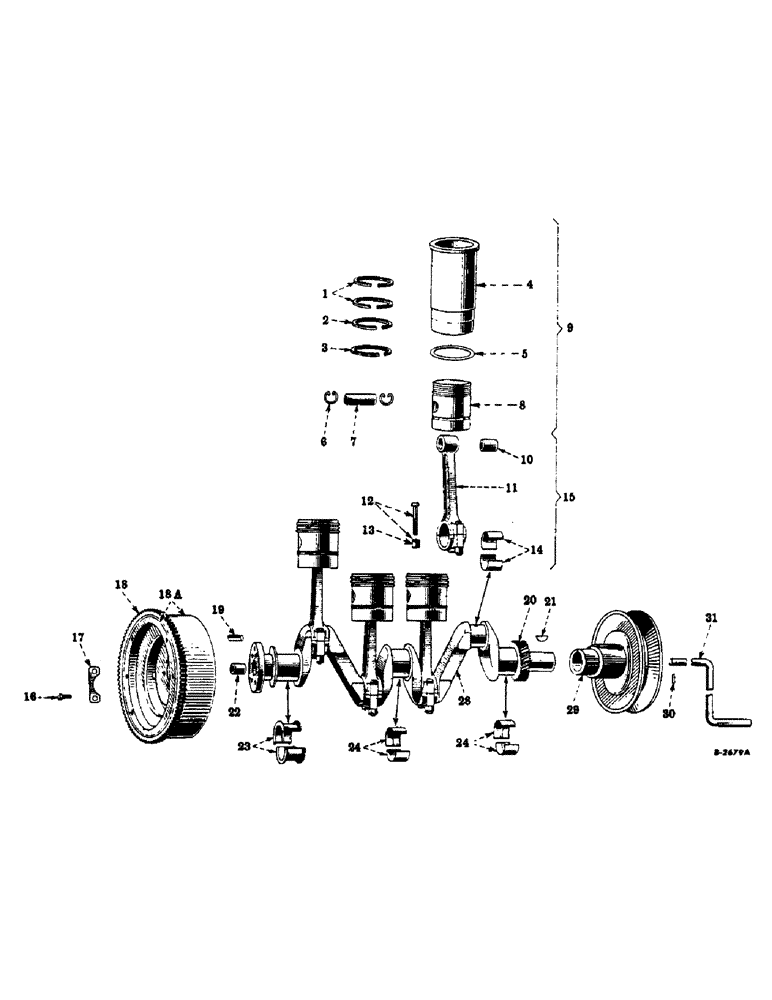

Запчасти Case IH FARMALL AV (015) - ENGINE, CRANKSHAFT & RELATED PARTS, CONNECTING RODS, PISTONS, CYLINDER SLEEVES & STARTING CRANK (01) - ENGINE

1

24416DA

PISTON RING 1/8" (plain-compression) (top or first and second groove)

8шт.

2

35493D

RING

PISTON RING, 1/8" (taper-compression) (third groove)

4шт.

3

32030DA

PISTON RING, 3/16" (oil regulating) (fourth groove) (kerosene 8000 ft. altitude - special)

4шт.

3

43276DA

PISTON RING, 1/4" (oil regulating) (gasoline) (fourth groove)

4шт.

4

6075D

CYLINDER SLEEVE (order cylinder sleeve with piston for standard or high altitude) (for crankcase 251069R1 (NSS)

4шт.

4

356317R1

CYLINDER SLEEVE (order cylinder sleeve with piston) (gasoline kerosene or distillate 5000 or 8000 ft. altitude - special) for cranckase 354898R2 (NSS)

4шт.

5

24434D

RING,6.04mm Thk x 134.94mm ID

CYLINDER SLEEVE PACKING RING (for crankcase 251069R1 (NSS)

4шт.

5

354881R1

SEAL ASSY.

CYLINDER SLEEVE PACKING RING (gasoline, kerosene or distillate 5000 or 8000 ft. altitude - special) (for crankcase 354898R2 (NSS)

4шт.

6

35651H

PISTON PIN RETAINER RING

8шт.

7

24414DB

AXLE PIN

PISTON PIN (standard) (optional with 365043R1)

4шт.

7

365043R1

PIN

PISTON PIN (standard) (optional with 365043R1)

4шт.

7

53159D

PIN

PISTON PIN (.005" oversize) (optional with 365061R1)

4шт.

7

365061R1

PIN

PISTON PIN (.005" oversize) (optional with 53159D)

4шт.

8

PISTON (gasoline, kerosene or distillate) (order cylinder sleeve with piston and rings for standard or high altitude)

4шт.

9

43286DA

SET OF FOUR CYLINDER SLEEVES WITH PISTONS, 43287DA (gasoline) (used with crankcase, 251069R1 (NSS)

1шт.

9

43287DA

CYLINDER SLEEVE WITH PISTON, complete (gasoline) (used with crankcase, 251069R1 (NSS)

4шт.

9

356315R91

SET OF FOUR CYLINDER SLEEVES WITH PISTONS, 356316R91 (gasoline or distillate) (used with crankcase, 354898R2 (NSS)

1шт.

9

356316R91

CYLINDER SLEEVE WITH PISTON, complete (gasoline or distillate) (used with crankcase, 354898R2 (NSS)

4шт.

9

51188D

SET OF FOUR CYLINDER SLEEVES WITH PISTONS, 51362D (gasoline 8000 ft. altitude - special) (used with crankcase, 251069R1 (NSS)

1шт.

9

51189D

SET OF FOUR CYLINDER SLEEVES WITH PISTONS, 51361D (gasoline 5000 ft. altitude - special) (used with crankcase, 251069R1 (NSS)

1шт.

9

356637R91

SET OF FOUR CYLINDER SLEEVES WITH PISTONS, 356642R91 (gasoline 5000 ft. altitude - special) (used with crankcase, 354898R2 (NSS)

1шт.

9

356649R91

SET OF FOUR CYLINDER SLEEVES WITH PISTONS, 356654R91 (gasoline 8000 ft. altitude - special) (used with crankcase, 354898R2 (NSS)

1шт.

9

51361D

CYLINDER SLEEVE WITH PISTON, complete (gasoline 5000 ft. altitude - special) (used with crankcase, 251069R1 (NSS)

4шт.

9

51362D

CYLINDER SLEEVE WITH PISTON, complete (gasoline 8000 ft. altitude - special) (used with crankcase, 251069R1 (NSS)

4шт.

9

356642R91

CYLINDER SLEEVE WITH PISTON, complete (gasoline 5000 ft. altitude - special) (used with crankcase, 354898R2 (NSS)

4шт.

9

356654R91

CYLINDER SLEEVE WITH PISTON, complete (gasoline 8000 ft. altitude -special) (used with crankcase, 354898R2 (NSS)

4шт.

9

51777DA

CYLINDER SLEEVE WITH PISTON, complete (kerosene or distillate) (used with crankcase, 251069R1

4шт.

9

51778DA

SET OF FOUR CYLINDER SLEEVES WITH PISTONS, 51777DA (kerosene or distillate) (used with crankcase, 251069R1 (NSS)

1шт.

9

359036R91

SET OF FOUR CYLINDER SLEEVES WITH PISTONS, 359037R91 (kerosene) (used with crankcase, 354898R1 (NSS)

1шт.

9

359037R91

CYLINDER SLEEVE WITH PISTON, complete (kerosene) (used with crankcase, 354898R1 (NSS)

4шт.

9

53077D

SET OF FOUR CYLINDER SLEEVES WITH PISTON, 54282D (kerosene 5000 ft. altitude - special) (used with crankcase, 251069R1 (NSS)

4шт.

9

53078D

SET OF FOUR CYLINDER SLEEVES WITH PISTONS, 54281D (kerosene 8000 ft. altitude - special) (used with crankcase, 251069R1 (NSS)

1шт.

9

356641R91

SET OF FOUR CYLINDER SLEEVES WITH PISTONS, 356647R91 (kerosene 5000 ft. altitude - special) (used with crankcase, 354898R2 (NSS)

1шт.

9

356653R91

SET OF FOUR CYLINDER SLEEVES WITH PISTONS, 356656R91 (kerosene 8000 ft. altitude - special) (used with crankcase, 354898R2 (NSS)

1шт.

9

54281D

CYLINDER SLEEVE WITH PISTON, complete (kerosene 8000 ft. altitude - special) (used with crankcase, 251069R1 (NSS)

4шт.

9

54282D

CYLINDER SLEEVE WITH PISTON, complete (kerosene 8000 ft. altitude - special) (used with crankcase, 251069R1 (NSS)

4шт.

9

356647R91

CYLINDER SLEEVE WITH PISTON, complete (kerosene 5000 ft.altitude - special) (used with crankcase, 354898R2 (NSS)

4шт.

9

356656R91

CYLINDER SLEEVE WITH PISTON, complete (kerosene 5000 ft. altitude - special) (used with crankcase, 354898R2 (NSS)

4шт.

9

356643R91

CYLINDER SLEEVE WITH PISTON, complete (distillate 5000 ft. altitude - special) (used with crankcase, 354898R2 (NSS)

4шт.

9

356639R91

SET OF FOUR CYLINDER SLEEVES WITH PISTONS, 356643R91 (distillate 5000 ft. altitude - special) (used with crankcase, 354898R2 (NSS)

1шт.

9

356655R91

CYLINDER SLEEVE WITH PISTON, complete (distillate 8000 ft. altitude - special) (used with crankcase, 354898R2 (NSS)

4шт.

9

356651R91

SET OF FOUR CYLINDER SLEEVES WITH PISTONS, 356655R91 (distillate 8000 ft. altitude - special) (used with crankcase, 354898R2 (NSS)

1шт.

REF#9B REPLACED BY 374293R93

1шт.

REF#9D REPLACED BY 366289R91

1шт.

10

24415D

BUSHING

PISTON PIN BUSHING, Serial Range: 501-103614

4шт.

10

64508D

BUSHING,23.82mm ID x 25.22mm OD x 30.96mm L

PISTON PIN BUSHING, 103615 up

4шт.

11

30926DFX

ROD

CONNECTING ROD WITH TWO BOLTS, 24412DX and bushing, 64508D

4шт.

12

24412DX

BOLT

CONNECTING ROD BOLT WITH NUT, 24413D and cotter pin, 108629

8шт.

13

24413D

CONNECTING ROD BOLT NUT

8шт.

14

356304R11

BEARING

CONNECTING ROD BEARING (2 halves) (will work for 35578 DBX)

4шт.

14

356305R11

CRANKSHAFT BEARING

CONNECTING ROD BEARING (2 halves) (.030" undersize) (will work for 35584DBX)

4шт.

14

356306R11

CRANKSHAFT BEARING

CONNECTING ROD BEARING (2 halves) (.002" undersize)

4шт.

14

356307R11

CONNECTING ROD BEARING (2 halves) (.032" undersize)

4шт.

15

30926DFY

CONNECTING ROD, 30926DFX with bearing, 356304R11

4шт.

16

29951D

FLYWHEEL BOLT

4шт.

17

46349D

LOCK

FLYWHEEL BOLT LOCK

2шт.

18

55755DB

SLEWING RING

FLYWHEEL RING GEAR, 90 teeth

1шт.

18a

351217R12

FLYWHEEL

WITH RING GEAR, 55755DB (will work for 6402DDX and 6402DB)

1шт.

19

24550D

PIN

FLYWHEEL DOWEL PIN

1шт.

20

46870DA

PINION

CRANKSHAFT PINION (33 teeth) (used with standard crankshaft)

1шт.

20

70182D

CRANKSHAFT PINION (33 teeth) (used with .030" crankshaft)

1шт.

21

10430V

KEY

CRANKSHAFT PINION AND FAN DRIVE PULLEY KEY (Woodruff no. 18, 1/4 x 1-1/8"), Serial Range: 501-146039

1шт.

21

126-117

WOODRUFF KEY,#91, 1/4" x 3/4", HT

CRANKSHAFT PINION AND FAN DRIVE PULLEY KEY (Woodrufff no. 91, 1/4 x 3/4"), 146040 up

2шт.

22

43291D

BUSHING

CLUTCH PILOT BUSHING

1шт.

23

50859DA

CRANKSHAFT BEARING, rear (2 halves) (standard) (will work for 35580-1/3DB

1шт.

23

50861DB

CRANKSHAFT BEARING

CRANKSHAFT BEARING, rear (2 halves) (030" undersize) (will work for 35586-1/3DC)

1шт.

23

355274R11

BEARING

CRANKSHAFT BEARING, rear (2 halves) (.002" undersize)

1шт.

23

355291R11

CRANKSHAFT BEARING, rear (2 halves) (.032" undersize)

1шт.

REF#23 SHOULD USE 360221R11

1шт.

24

50860DB

BEARING

CRANKSHAFT BEARING, front and center (2 halves) (standard) (will work for 35579-1/3DB)

2шт.

24

50862DB

BEARING

CRANKSHAFT BEARING, front and center (2 halves) (.030" undersize) (will work for 35585-1/3DB)

2шт.

24

355275R11

BEARING

CRANKSHAFT BEARING, front and center (2 halves) (.002" undersize)

2шт.

24

355292R11

CRANKSHAFT BEARING, front and center (2 halves) (.032" undersize)

2шт.

28

251587R92

CRANKSHAFT

complete (standard) (will work for 46402 DBX), Serial Range: 501-146039

1шт.

28

356311R91

CRANKSHAFT WITH BEARINGS, complete (standard) (will work for 46402DCX and 353744R91), 146040 up

1шт.

28

46411DDX

CRANKSHAFT WITH PIN, complete (.030" undersize) (will work for 46411DEX), 165804 up

1шт.

28

46411DEX

CRANKSHAFT, complete (.030" undersize) (order 352747R92), 165804 up

1шт.

28

352747R92

CRANKSHAFT AND BEARING FIELD PACKAGE (.030" undersize) (will work for 46411DEX), 165804 up

1шт.

29

251589R91

FAN DRIVE PULLEY, complete (used with standard crankshafts) (will work for 6502DX), 501 TO 146039

1шт.

29

6502DA

PULLEY

FAN DRIVE PULLEY (used with standard and .030" undersize crankshaft), 146040 up

1шт.

29

9855DAX

FAN DRIVE PULLEY WITH SCREW, 139797 and nut, 218438 (used with .030" undersize crankshafts), Serial Range: 501-146039

1шт.

30

15204D

STARTING CRANK PIN

1шт.

31

47691DBX

STARTING CRANK WITH PIN, 15204D (not "B" or "BN")

1шт.

31

53385DBX

STARTING CRANK WITH PIN, 15204D ("B" and "BN" only)

1шт.

56618DA

FLYWHEEL RING GEAR ATTACHMENT (ELECTRIC STARTING - special), Serial Range: 501-54386

1шт.

69791D

SET OF RINGS

PISTON RING REPLACEMENT KIT (gasoline) (optional with 70356D and 357677R91) (perfect circle)

1шт.

357677R91

SET OF RINGS

PISTON RING REPLACEMENT KIT (gasoline) (perfect circle) (consists of four chrome plated top compression rings, four plain compression rings, and four chrome plated oil rings) (optional with 69791D and 70356D)

1шт.

69792D

PISTON RING REPLACEMENT KIT (kerosene or distillate) (kerosene 5000 ft. altitude) (optional with 70357DA and 357676R91) (wilkening)

1шт.

70356D

PISTON RING REPLACEMENT KIT (gasoline) (optional with 69791D and 357677R91) (wilkening)

1шт.

70357DA

PISTON RING REPLACEMENT KIT (kerosene or distillate) (kerosene 5000 ft. and 8000 ft. altitude) (optional with 69792D and 357676R91) (perfect circle)

1шт.

357676R91

SET OF RINGS

1шт.

PISTON RING REPLACEMENT KIT (kerosene or distillate) (kerosene 5000 ft. and 8000 ft. altitude) (perfect circle) (consists of four chrome plated top compression rings, four plain compression rings, four plain compression rings and four chrome plated oil rings) (optional with 69792D and 70357DA)

1шт.

280250

COTTER PIN,3/32" OD x 3/4" L

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

139797

SET SCREW, 3/8 x 7/8" N.C. headless (cup point)

1шт.

218438

HEX JAM NUT, 3/8" N.C.

1шт.
