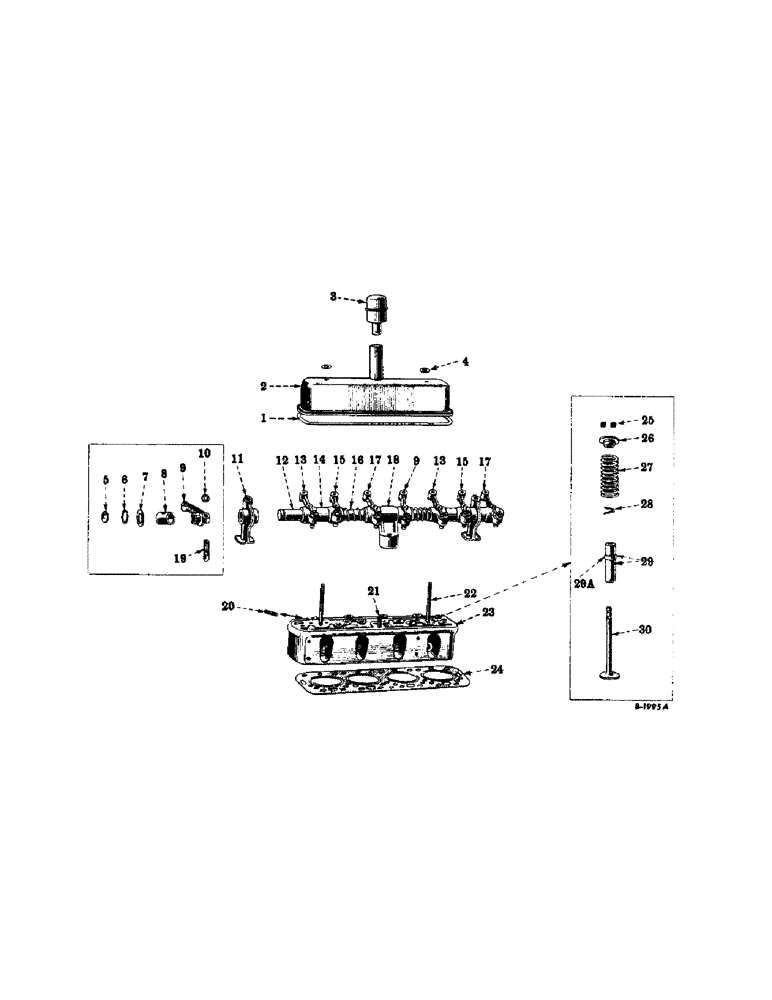

Запчасти Case IH FARMALL AV (008) - ENGINE, CYLINDER HEAD, VALVE COVER, VALVES AND VALVE LEVERS (01) - ENGINE

1

43378DB

GASKET

VALVE COVER GASKET

1шт.

43379DAXA Valve Cover should be Ref #2

1шт.

2

43379DAXA

VALVE COVER

1шт.

3

49049DX

BREATHER

CYLINDER HEAD BREATHER

1шт.

4

62866D

WASHER,5/64" Thk x 13/32" ID

VALVE STUD NUT WASHER (optional with 357374R11)

2шт.

4

357374RI

VALVE STUD NUT WASHER (optional with 62886D)

2шт.

5

172528

PLUG,Exp, 9/16"

EXPANSION PLUG, 9/16"

2шт.

6

43375D

RING

VALVE LEVER SHAFT SNAP RING

2шт.

7

43374D

SPRING WASHER

VALVE LEVER SHAFT SPRING WASHER

2шт.

8

24564DA

BUSHING

VALVE LEVER BUSHING (used with 43363DBX, 43364DBX, 43365DBX, 43366DBX, 43363DBY, 43364DBY, 43365DBY, 43366DBY, 63195DAX, 63195DAY, 63196DAX, 63196DAY, 63197DAX, 63197DAY, 63198DAX and 63198DAY)

2шт.

9

43365DBX

EXHAUST VALVE LEVER, L.H., with bushing, 24564DA (optional with 357289R91)

2шт.

9

43365DBY

EXHAUST VALVE LEVER, L.H., 43365DBX, with screw, 16067DA and nut, 38763H (optional with 357291R91)

2шт.

9

357289R91

LEVER

INTAKE OR EXHAUST VALVE LEVER (optional with 43365DBX)

2шт.

9

357291R91

LEVER

INTAKE OR EXHAUST VALVE LEVER, L.H., 357289R91, with screw, 16067DA and nut, 38763H (optional with 43365DBY)

2шт.

10

38763H

NUT

VALVE LEVER ADJUSTING SCREW NUT

8шт.

11

42099DA

BRACKET

VALVE LEVER SHAFT BRACKET, end

2шт.

12

352521R11

SHAFT

VALVE LEVER SHAFT, complete (will work for 43362DAX)

1шт.

172528

PLUG,Exp, 9/16"

EXPANSION PLUG, 9/16" type 2

2шт.

13

43364DBX

INTAKE VALVE LEVER, R.H., with bushing, 24564DA (optional with 357290R91)

2шт.

13

43364DBY

INTAKE VALVE LEVER, R.H., 43364DBX, with screw 16067DA and nut, 38763H (optional with 357292R91)

2шт.

13

357290R91

LEVER

INTAKE OR EXHAUST VALVE LEVER (optional with 43364DBX)

2шт.

13

357292R91

LEVER

INTAKE OR EXHAUST VALVE LEVER, R.H., 357290R91 with screw, 16067 DA and nut, 38763H (optional with 43364DBY)

2шт.

14

43373D

SPACER

VALVE LEVER SPACER

2шт.

15

43363DBX

INTAKE VALVE LEVER, L.H., with bushing, 24564DA (optional with 357289R91)

2шт.

15

43363DBY

INTAKE VALVE LEVER, L.H., 43363DBX, with screw, 16067DA and nut, 38763H (optional with 357291R91)

2шт.

43379DAXA Valve Cover should be Ref #2

1шт.

15

357289R91

LEVER

INTAKE OR EXHAUST VALVE LEVER (optional with 43363DBX)

2шт.

15

357291R91

LEVER

INTAKE OR EXHAUST VALVE LEVER, L.H., 357289R91 with screw, 16067DA and nut, 38763H (optional with 43363DBY)

2шт.

16

24541D

SPRING

VALVE LEVER SPRING

2шт.

17

43366DBX

EXHAUST VALVE LEVER, R.H. with bushing, 24564DA (optional with 357290R91)

2шт.

17

43366DBY

EXHAUST VALVE LEVER, R.H. 43366DBX, with screw, 16067DA and nut, 38763H (optional with 357292R91)

2шт.

17

357290R91

LEVER

INTAKE OR EXHAUST VALVE LEVER (optional with 43366DBX)

2шт.

17

357292R91

LEVER

INTAKE OR EXHAUST VALVE LEVER, R.H. 357290R91 with screw, 16067DA and nut, 38765H (optional with 43366DBY)

2шт.

18

6089DA

BRACKET

VALVE LEVER SHAFT BRACKET, center

1шт.

19

16067DA

ADJUSTMENT SCREW,3/8" - 24

VALVE LEVER ADJUSTING SCREW

8шт.

20

45223DA

STUD

CYLINDER HEAD TO MANIFOLD STUD

6шт.

21

24537DA

STUD

VALVE LEVER SHAFT OILER STUD

1шт.

220066

HEX NUT, 3/8" N.C.

1шт.

22

45574D

STUD

VALVE COVER STUD

2шт.

103026

NUT,3/8"-24, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

23

6716DAX

CYLINDER HEAD WITH STUDS AND VALVE GUIDES, complete ("A" and "B") (order 57481DB), Serial Range: 501-22375

1шт.

23

9052DXA

CYLINDER HEAD, complete with studs and valve guides (will work for 6716DBX), 22376 up

1шт.

23

9052DYA

CYLINDER HEAD, complete with valves and springs (will work for 6716DBY), 22376 up

1шт.

23

57481DB

CYLINDER HEAD, complete, 9052DXA with two front fuel tank support spacer, 24523D and bracket, 350621R1 ("A" and "B") will work for 6716 DAX), Serial Range: 501-22375

1шт.

23

57482DB

CYLINDER HEAD, complete, 9052DYA with two spacers, 6249D and bracket, 350621RI ("A" and "B") (will work for 6716DAY), Serial Range: 501-22375

1шт.

24

43353DD

GASKET

CYLINDER HEAD GASKET

1шт.

25

42026D

KEY

VALVE SPRING COLLAR KEY

16шт.

26

42040D

CUP

VALVE SPRING UPPER SEAT (will work for 47278D)

8шт.

27

24544DA

SPRING

VALVE SPRING

8шт.

28

42098D

RETAINER

VALVE STEM RETAINER

8шт.

29

6088DR

GUIDE

VALVE GUIDE (order 356583R11)

8шт.

29

356583R11

VALVE GUIDE

356583R1 and seat, 356588R1 (will work for 6088DR)

8шт.

29a

356583R1

GUIDE

VALVE GUIDE (used with valve spring lower seat, 356588R1)

8шт.

30

42024D

VALVE

INTAKE VALVE

4шт.

30

42025DA

LOCK VALVE

EXHAUST VALVE

4шт.

50619DA

KEROSENE OR DISTILLATE BURNING ATTACHMENT (special) (not "B" or "BN"), Serial Range: 501-41329

1шт.

("B" and "BN" only), Serial Range: 501-40192

1шт.

58275DC

KEROSENE OR DISTILLATE BURNING ATTACHMENT (special) (heat indicator, 53619DC must also be installed unless tractor is already so equipped) (not "B" or "BN"), 41330 up

1шт.

("B" and "BN" only), 40193 up

1шт.

356588R1

RETAINER

VALVE SPRING LOWER SEAT

8шт.

P/N WAS 43379DBX, BUT IS DISCONTINUED (CASE#521174-PER MARV HOOD).JBEDFORD

1шт.
