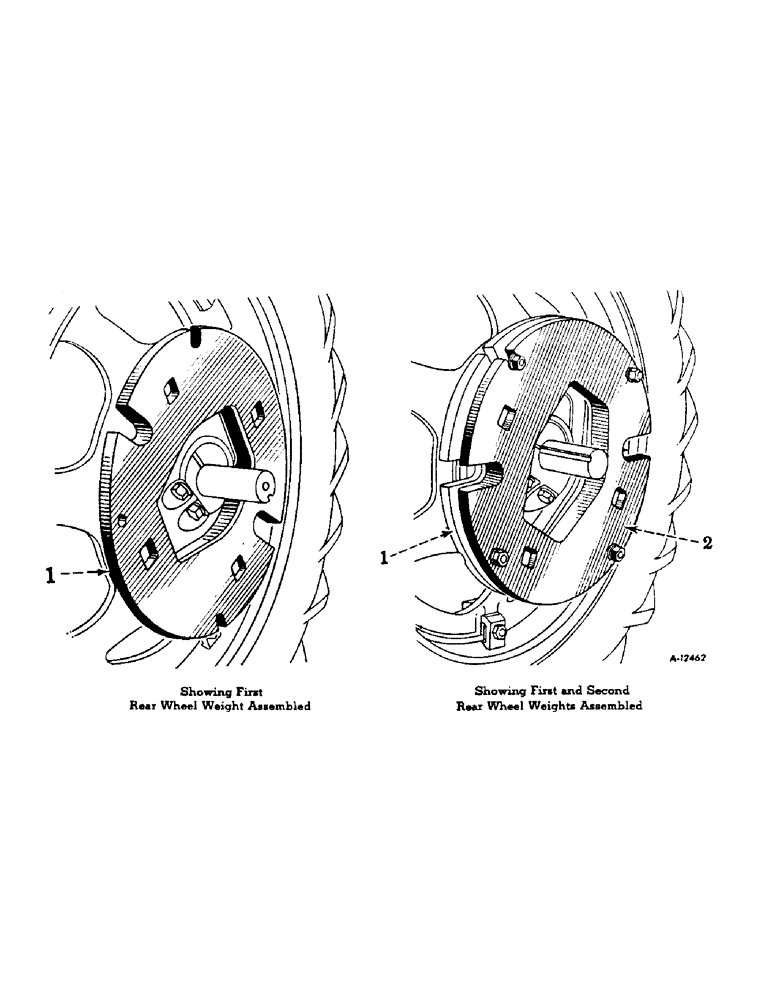

Запчасти Case IH FARMALL AV (175) - ATTACHMENTS, REAR WHEEL WEIGHTS, SPECIAL, AV ONLY Attachments

49330D

REAR WHEEL WEIGHT ATTACHMENT, second weight

1шт.

49331D

REAR WHEEL WEIGHT ATTACHMENT, third weight

1шт.

61719D

REAR WHEEL WEIGHT ATTACHMENT, first weight

1шт.

1

6818D

REAR WHEEL WEIGHT (first)

2шт.

13472R1

BOLT

MACHINE BOLT, 3/4 x 3-3/4" N.C.

8шт.

114821

HEX NUTS, 3/4" N.C.

8шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

8шт.

2

6818D

REAR WHEEL WEIGHT (second)

2шт.

13472R1

BOLT

MACHINE BOLT, 3/4 x 3-3/4" N.C.

8шт.

114821

HEX NUT, 3/4" N.C.

8шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

8шт.

Q1552

WASHER

25/32" I.D. x 1-1/4" O.D. x no. 10 gauge

8шт.

6818D

REAR WHEEL WEIGHT (third) (not illustrated)

2шт.

To assemble third weight, remove two of the bolts which hold the second weight to the first weight and attach the third weight to the second weight

1шт.
