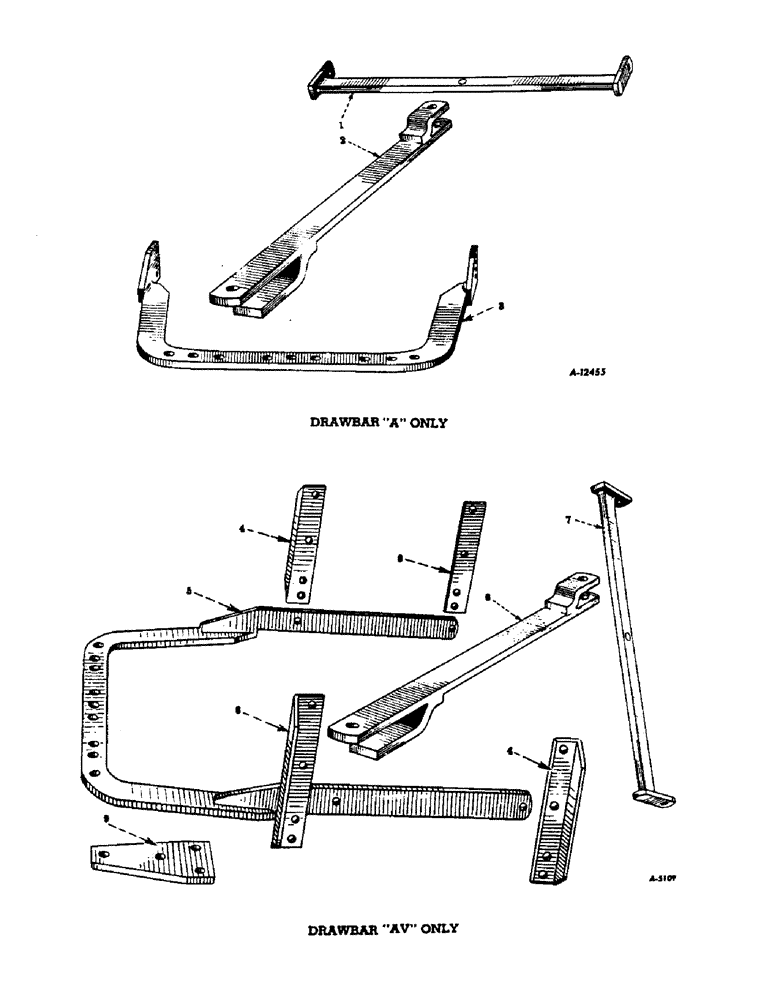

Запчасти Case IH FARMALL A (124) - CHASSIS, DRAWBARS, FOR "A" AND "AV" TRACTORS (12) - CHASSIS
№
Артикул
Название
Примечание
Количество
43919DA
SWINGING DRAWBAR ATTACHMENT (special) ("A" only) (machine attachment)
1шт.
57892D
SWINGING DRAWBAR ATTACHMENT (special) ("AV" only) (machine attachment)
1шт.
1
43922DAX
SWINGING DRAWBAR ANCHOR BAR WITH CLIP AND PLATE (special) ("A" only), Serial Range: 501-13393
1шт.
181488
CAP SCREW, 5/8 x 3" N.F. hex. head
2шт.
425-1110
NUT,5/8"-18, G5
2шт.
103325
LOCK WASHER,5/8"
WASHER, LOCK, 5/8"
2шт.
Q1538
WASHER
21/32 I.D. x 1-1/4" O.D. x no. 12 gauge
1шт.
Q1538
WASHER
21/32 I.D. x 1-1/4" O.D. x no. 18 gauge
1шт.
1
55246DX
SWINGING DRAWBAR ANCHOR BAR WITH PLATES (special) ("A" only), 13394 up
1шт.
181488
CAP SCREW, 5/8 x 3" N.F. hex. head
2шт.
425-1110
NUT,5/8"-18, G5
2шт.
103325
LOCK WASHER,5/8"
WASHER, LOCK, 5/8"
2шт.
Q1538
WASHER
21/32 I.D. x 1-1/4" O.D. x no. 12 gauge
1шт.
Q1538
WASHER
21/32 I.D. x 1-1/4" O.D. x no. 12 gauge
1шт.
2
55242DX
SWINGING DRAWBAR WITH CLIPS (special) (not "AV"), 13394 up
1шт.
181488
CAP SCREW, 5/8 x 3" N.F. hex. head
1шт.
13296R1
MACHINE BOLT, 3/4 x 1-1/2"
2шт.
425-1110
NUT,5/8"-18, G5
1шт.
114821
HEX. NUT, 3/4" N.C.
2шт.
103325
LOCK WASHER,5/8"
WASHER, LOCK, 5/8"
1шт.
103326
LOCK WASHER,3/4"
WASHER, LOCK, 3/4"
2шт.
2
43920DAX
SWINGING DRAWBAR WITH CLIP (special) ("A" only), Serial Range: 501-13393
1шт.
181488
CAP SCREW, 5/8 x 3" N.F. hex. head
1шт.
13296R1
MACHINE BOLT, 3/4 x 1-1/2"
2шт.
425-1110
NUT,5/8"-18, G5
1шт.
114821
HEX. NUT, 3/4" N.C.
2шт.
103325
LOCK WASHER,5/8"
WASHER, LOCK, 5/8"
1шт.
103326
LOCK WASHER,3/4"
WASHER, LOCK, 3/4"
2шт.
3
43525DAXA
DRAWBAR, complete, L.H. and R.H. (standard) ("A" only)
1шт.
179885
BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5
2шт.
181488
CAP SCREW, 5/8 x 3" N.F. hex. head
2шт.
425-1110
NUT,5/8"-18, G5
2шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
2шт.
103325
LOCK WASHER,5/8"
WASHER, LOCK, 5/8"
2шт.
4
60423
DRAWBAR BRACKET (standard) ("AV" only)
2шт.
181482
CAP SCREW, 5/8 x 1-3/4" N.F. hex. head
2шт.
181487
LEVER
CAP SCREW, 5/8 x 2-3/4" N.F. hex. head
4шт.
425-1110
NUT,5/8"-18, G5
6шт.
103325
LOCK WASHER,5/8"
WASHER, LOCK, 5/8"
6шт.
5
57877D
DRAWBAR WITH EXTENSION, L.H. and R.H. (standard) ("AV" only)
1шт.
6
57890DX
SWINGING DRAWBAR WITH CLIPS ("AV" only) (special)
1шт.
181488
CAP SCREW, 5/8 x 3" N.F. hex. head
1шт.
13296R1
MACHINE BOLT, 3/4" x 1-1/2"
2шт.
425-1110
NUT,5/8"-18, G5
1шт.
114821
HEX. NUT, 3/4" N.C.
2шт.
103325
LOCK WASHER,5/8"
WASHER, LOCK, 5/8"
1шт.
103326
LOCK WASHER,3/4"
WASHER, LOCK, 3/4"
2шт.
7
57891DX
SWINGING DRAWBAR ANCHOR BAR WITH PLATES (special) ("AV" only)
1шт.
181486
CAP SCREW, 5/8 x 2-1/2" N.F. hex. head
2шт.
425-1110
NUT,5/8"-18, G5
2шт.
103325
LOCK WASHER,5/8"
WASHER, LOCK, 5/8"
2шт.
8
60424D
DRAWBAR BRACKET (standard) ("AV" only)
2шт.
181482
CAP SCREW, 5/8 x 1-3/4" N.F. hex. head
2шт.
181487
LEVER
CAP SCREW, 5/8 x 2-3/4" N.F. hex. head
4шт.
425-1110
NUT,5/8"-18, G5
6шт.
103325
LOCK WASHER,5/8"
WASHER, LOCK, 5/8"
6шт.
9
66185D
BAR
DRAWBAR EXTENSION
1шт.
179954
CAP SCREW, 3/4 x 2-1/2 N.C. hex head
2шт.
114821
HEX NUT, 3/4" N.C.
2шт.
103326
LOCK WASHER,3/4"
WASHER, LOCK, 3/4"
2шт.
Выбрано товаров: 60
