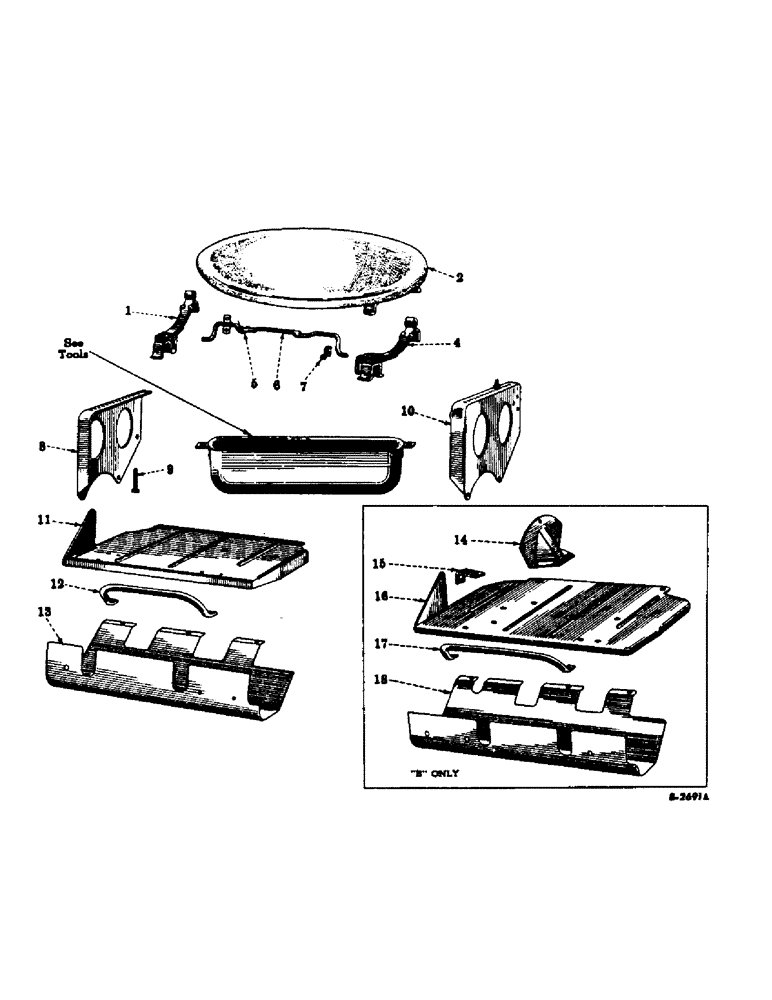

Запчасти Case IH FARMALL A (120) - CHASSIS, SEAT AND PLATFORM (12) - CHASSIS

1

50587D

SEAT SPRING, R.H. (2 leaves) (order 50587DB, R.H. and 50586DB, L.H.), 501 TO 38162

1шт.

1

50587DB

SEAT SPRING, complete, R.H. (3 leaves), 38163 up

1шт.

181361

BOLT,Hex, 3/8" - 24 x 7/8", Gr 5

CAP SCREW, 3/8 x 7/8" N.F. hex. head

4шт.

103026

NUT,3/8"-24, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

104102

RIVET, 5/16 x 1-3/8" round head

2шт.

2

50570DC

SEAT

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

350515R1

WASHER

21/32 I.D. x 1" O.D. x no. 16 gauge

2шт.

4

50586D

SEAT SPRING, L.H. (2 leaves) (order 50586DB, L.H. and 50587DB, R.H.), Serial Range: 501-38162

1шт.

4

50586DB

SEAT SPRING, complete, L.H. (3 leaves) 38163 up

1шт.

181361

BOLT,Hex, 3/8" - 24 x 7/8", Gr 5

CAP SCREW, 3/8 x 7/8" N.F. hex. head

4шт.

103026

NUT,3/8"-24, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

104102

RIVET, 5/16 x 1-3/8" round head

2шт.

5

50582D

SEAT LOCK ROD SPRING

1шт.

6

69752DA

SEAT LOCK ROD (will work for 50580D)

1шт.

7

50581D

CLAMP

SEAT LOCK ROD CLIP

2шт.

425-115

NUT,5/16"-24, G5

HEX NUT, 5/16" N.F.

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

8

51182D

SEAT SUPPORT BRACKET, R.H.

1шт.

9

50583D

SEAT SPRING ADJUSTING BOLT

2шт.

103026

NUT,3/8"-24, G5

4шт.

10

350007R1

SEAT SUPPORT BRACKET L.H. (will work for 51181D)

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 3/4" N.C. hex hd

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

11

48699DX

PLATFORM WITH BRACE WITH BRACKET ("A" and "AV")

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

181360

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

CAP SCREW, 3/8 x 3/4" N.F. hex head

1шт.

103026

NUT,3/8"-24, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

11

58845DX

PLATFORM WITH BRACE AND BRACKET ("BN" only)

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

12

51261D

FOOT REST (not "B")

1шт.

181336

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

1шт.

425-115

NUT,5/16"-24, G5

HEX. NUT, 5/16" N.F.

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

13

48697DB

GUARD

PEDAL GUARD (not "B")

1шт.

179812

GEAR

CAP SCREW, 5/16 x 1/2" N.C. hex head

2шт.

12282R1

OVENHEAD BOLT, 5/16 x 1/2" N.C.

3шт.

9635082

NUT,5/16" - 18, Gr 5

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

14

49369D

SEAT SUPPORT BRACKET, R.H. base ("B" only)

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

6шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Hex, 3/8"-16 x 1", G5

1шт.

280136

NUT,3/8"-16, G8

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

7шт.

15

55417D

PLATFORM FASTENING CLIP ("B" only), 6773 up

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

280136

NUT,3/8"-16, G8

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

16

49370DAX

PLATFORM WITH BRACE AND BRACKET WITH CLIP, 55417D ("B" only) (will work for 49370DX)

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

181360

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

CAP SCREW, 3/8 x 3/4" N.F. hex head

1шт.

103026

NUT,3/8"-24, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

17

52965D

FOOT REST ("B" only)

1шт.

18

49371DA

PEDAL GUARD ("B" only)

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

CAP SCREW, 5/16 x 1/2" N.C. hex head

3шт.

12282R1

OVENHEAD BOLT, 5/16 x 1/2" N.C.

4шт.

9635082

NUT,5/16" - 18, Gr 5

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

7шт.
