Запчасти Case IH FARMALL A (119) - CHASSIS, FENDER (12) - CHASSIS

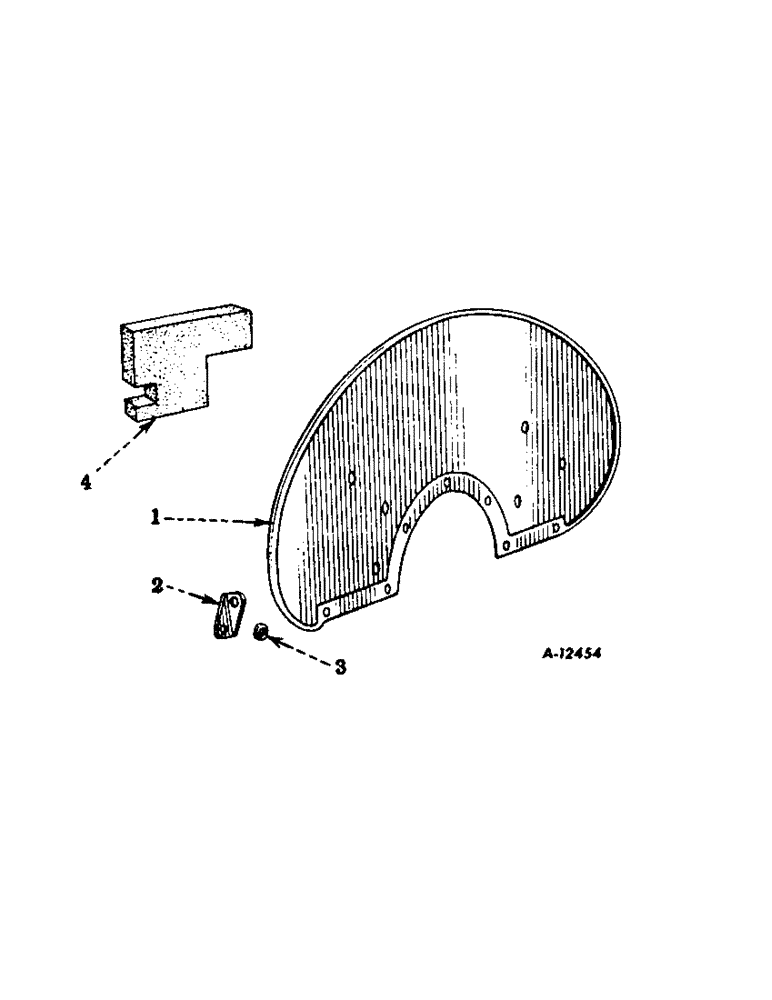

Схема запчастей Case IH FARMALL A - (119) - CHASSIS, FENDER (12) - CHASSIS
4
2
3
1

Артикул

Название

Примечание

Количество

1

51179DX

REAR FENDER WITH REINFORCEMENT STRIP

2шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8 x 7/8" N.C. hex hd (not "B" or "BN")

6шт.

181360

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

CAP SCREW, 3/8 x 3/4" N.F. hex head

2шт.

181364

BOLT,Hex, 3/8" - 24 x 1", Gr 5

CAP SCREW, 3/8 x 1" N.F. hex head

11шт.

181370

BOLT,Hex, 3/8" - 24 x 1 1/4", Gr 5

CAP SCREW, 3/8 x 1-1/4" N.F. hex head

6шт.

181425

BOLT,Hex, 1/2" - 20 x 3/4"

CAP SCREW, 1/2 x 3/4" N.F. hex head (not "B")

1шт.

103026

NUT,3/8"-24, G5

19шт.

114496

HOURMETER,Jam, 1/2"-20, G5

HEX JAM NUT, 1/2" N.F. (not "B")

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

25шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

280136

NUT,3/8"-16, G8

(Not "B" or "BN") 3/8"-16, G8

1шт.

2

43514D

LEFT HAND FENDER SUPPORT CLIP (not "B" or "BN")

1шт.

3

24523D

WASHER

RIGHT HAND FENDER SPACER (not "B") (will work for 22828D)

1шт.

4

55788DA

FENDER TO TRANSMISSION CASE FELT PAD (not "B" or "BN") (used on left fender only)

1шт.

Выбрано товаров: 14
