Запчасти Case IH FARMALL A (096) - CHASSIS, STEERING MECHANISM (12) - CHASSIS

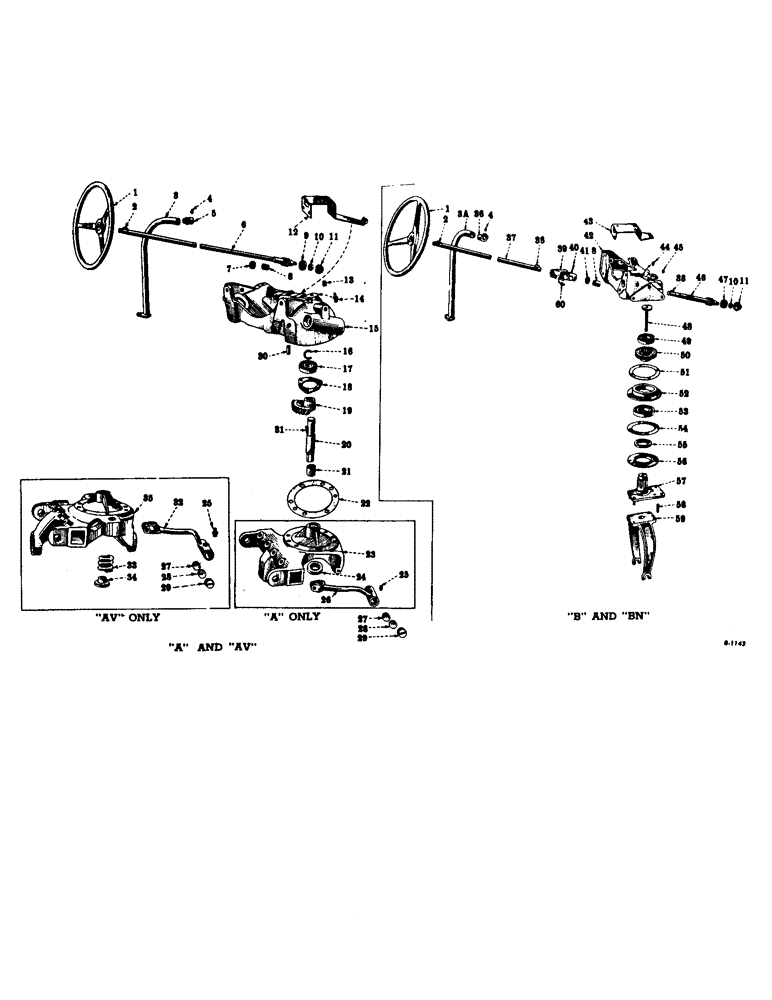

Схема запчастей Case IH FARMALL A - (096) - CHASSIS, STEERING MECHANISM (12) - CHASSIS
2
5
4
58
48
54
35
10
29
28
49
46
7
25
26
10
40
4
53
21
41
8
39
33
55
9
59
6
43
34
25
16
3
15
1
47
24
38
23
11
3a
31
56
29
32
37
57
27
2
58
38
14
42
22
52
28
1
37
13
12
44
50
17
18
20
19
30
8
51
60
48
11

Артикул

Название

Примечание

Количество

1

46512DA

WHEEL

STEERING WHEEL, 15" (optional with 60069D)

1шт.

1

60069D

HANDWHEEL

STEERING WHEEL, 15" (optional with 46512DA)

1шт.

2

112139

WOODRUFF KEY,#A, 1/4" x 7/8"

STEERING WHEEL KEY (Woodruff no. "A" 1/4 x 7/8") (same as 7235T)

1шт.

3

47956DCX

STEERING SHAFT SUPPORT ARM WITH BASE ("A" and "AV") (order 61086DY), Serial Range: 501-57283

1шт.

(Also "B" and "BN" 501 to 59627) (order 60251DX)

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

179925

FLEXIBLE HOSE

CAP SCREW, 5/8 x 1-1/4 N.C. hex head

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

3

61086DX

STEERING SHAFT SUPPORT ARM ("A" AND "AV"), 57284 up

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

179925

FLEXIBLE HOSE

CAP SCREW, 5/8 x 1-1/4" N.C. hex head

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

3

61086DY

STEERING SHAFT SUPPORT ARM WITH BRACKET, 6852DX ("A" and "AV") (will work for 47956DCS), Serial Range: 501-57283

1шт.

3a

60251DX

STEERING SHAFT SUPPORT ARM ("B" and "BN") (will work for 47956DCX), 59628 up

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

179925

FLEXIBLE HOSE

CAP SCREW, 5/8 x 1-1/4" N.C. hex head

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

4

109461

LUBE NIPPLE,1/8"-27 x .66 lg

STEERING SHAFT SUPPORT BRACKET LUBRICATOR (optional with 119512)

1шт.

4

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

STEERING SHAFT SUPPORT BRACKET LUBRICATOR (optional with 109461) (same as 14186DA)

1шт.

5

6852DX

STEERING SHAFT SUPPORT BRACKET (Not "B" or "BN") (order 9442DX), Serial Range: 501-100767

1шт.

181345

BOLT,Hex, 5/16" - 24 x 1 3/4", Gr 5

1шт.

425-115

NUT,5/16"-24, G5

HEX NUT, 5/16"

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

5

9442DX

STEERING SHAFT SUPPORT BRACKET WITH LUBRICATOR, 109461 or 119512 (optional with 365002R11) (not "B" or "BN") (will work for 6852DX), 100763 up

1шт.

5

365002R11

SUPPORT

STEERING SHAFT SUPPORT BRACKET WITH LUBRICATOR, 109461 or 119512, (optional with 9442DX) (Not "B" or "BN"), 100768 up

1шт.

181345

BOLT,Hex, 5/16" - 24 x 1 3/4", Gr 5

1шт.

425-115

NUT,5/16"-24, G5

HEX NUT, 5/16"

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

6

351820R91

SHAFT

STEERING SHAFT WITH WORM (Not "B" or "BN") (will work for 46511DXB)

1шт.

122403

HEX JAM NUT, 3/4" N.F.

1шт.

108635

PIN,1/8" x 1 1/8"

Split (Cotter), 1/8" x 1 1/8"

1шт.

7

48956D

SEAL

STEERING WORM OIL SEAL (Not "B" or "BN")

1шт.

8

41096DBR

BUSHING,25.43mm ID x 32.64mm OD x 31.75mm L

STEERING WORM BUSHING

1шт.

9

ST287

BALL BEARING,20mm ID x 52mm OD x 15mm W

STEERING WORM BEARING (IH-C-320) (Not "B" or "BN")

1шт.

10

43503D

NUT

STEERING WORM NUT ("A" only) (order 69442D), Serial Range: 501-7013

1шт.

10

69442D

NUT

STEERING WORM NUT (will work for 43503D)

1шт.

11

6660DA

BEARING CAP

STEERING WORM BEARING RETAINER, 7014 up

1шт.

11

6660DAX

STEERING WORM BEARING RETAINER ("A" and "B" only) (will work for 6660D), Serial Range: 501-7013

1шт.

12

58142DX

STARTING CRANK BRACKET WITH WELDING NUT (Not "B" or "BN"), 41330 up

1шт.

181413

SCREW,Hex, 7/16" - 20 x 3 1/2"

CAP SCREW, 7/16 x 3-1/2" N.F. hex head

2шт.

103027

HEX NUT, 7/16" N.F.

2шт.

81547

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

12

51005DX

STARTING CRANK BRACKET, complete ("A" only), Serial Range: 501-41329

1шт.

181413

SCREW,Hex, 7/16" - 20 x 3 1/2"

CAP SCREW, 7/16 x 3-1/2" N.F. hex head

2шт.

103027

HEX NUT, 7/16" N.F.

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

13

57735DX

EXCITER

STEERING GEAR HOUSING VENT AND FILLER PLUG WITH FELT (Not "B" or "BN") (order 356569R1), 36807

1шт.

13

356569R1

PLUG

STEERING GEAR HOUSING VENT AND FILLER PLUG (Not "B" or "BN") (will work for 57735DX), 36807 up

1шт.

14

109461

LUBE NIPPLE,1/8"-27 x .66 lg

STEERING WORM WHEEL SHAFT BEARING LUBRICATOR (Not "B" or "BN") (same as Q3615) (optional with 119512) (used with housing, 6532DCX)

1шт.

14

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

STEERING WORM WHEEL SHAFT BEARING LUBRICATOR (Not "B" or "BN") (optional with 109461) (same as 14186DA) (used with housing, 6532DCX)

1шт.

15

6532DAX

STEERING GEAR HOUSING, complete ("A" only) (order 6532DEY), Serial Range: 501-36806

1шт.

15

6532DEX

STEERING GEAR HOUSING, complete (not "B" or "BN"), 36807 up

1шт.

181487

LEVER

CAP SCREW, 5/8 x 2-3/4" N.F. hex head

2шт.

181490

CAP SCREW, 5/8 x 3-1/2" N.F. hex head

2шт.

425-1110

NUT,5/8"-18, G5

4шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

103865

PIPE PLUG, 1/8" square head

1шт.

103867

PLUG

PIPE PLUG, 3/8" square head

1шт.

15

6532DEY

STEERING GEAR HOUSING, complete ("A" only) (will work for 6532DAX), Serial Range: 501-36806

1шт.

16

47679D

RING, SNAP

STEERING WORM WHEEL SHAFT SNAP RING (Not "B" or "BN")

1шт.

17

ST288

BEARING, BALL,25 mm ID x 62 mm OD x 17 mm

STEERING WORM WHEEL SHAFT BEARING (IH-C-325) (Not "B" or "BN")

1шт.

18

43500D

RETAINER

STEERING WORM WHEEL SHAFT BEARING RETAINER (Not "B" or "BN")

1шт.

179814

SPACER

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

19

351815R1

GEAR

STEERING WORM WHEEL (28 teeth) (Not "B" or "BN") (will work for 47677DA)

1шт.

20

47683DB

STEERING WORM WHEEL SHAFT (Order 356552R91 for "A" only) (order 356553R91 for "AV" only)

1шт.

21

47676DR

BUSHING,30.14mm ID x 33.34mm OD x 42.86mm L

STEERING WORM WHEEL SHAFT BUSHING (Not "B" or "BN")

1шт.

22

47675D

GASKET

STEERING GEAR HOUSING GASKET (Not "B" or "BN")

1шт.

23

6530DDX

BASE

STEERING GEAR HOUSING BASE WITH BUSHING AND OIL SEAL, 47703D ("A" only) (will work for 8796D)

1шт.

181407

BOLT,Hex, 7/16" - 20 x 2 1/4", Gr 5

CAP SCREW, 7/16 x 2-1/4" N.F. hex head

2шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4" N.C. hex

6шт.

103027

HEX NUT, 7/16" N.F.

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

23

8796D

BASE

STEERING GEAR HOUSING BASE ("A" only) (order 6530DDX)

1шт.

24

47703D

BUSHING

STEERING WORM WHEEL SHAFT OIL SEAL (Not "B" or "BN")

1шт.

25

109461

LUBE NIPPLE,1/8"-27 x .66 lg

TIE ROD BALL SEAT LUBRICATOR (Not "B" or "BN") (optional with 119512) (same as Q3615)

1шт.

25

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

TIE ROD BALL SEAT LUBRICATOR (Not "B" or "BN") (optional with 109461) (same as 14186DA)

1шт.

26

47684DB

STEERING GEAR ARM ("A" only) (order 356552R91), Serial Range: 501-96389

1шт.

181406

BOLT,Hex, 7/16" - 20 x 2", Gr 5

CAP SCREW, 7/16 x 2" N.F. hex head

1шт.

103027

HEX NUT, 7/16" N.F.

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

26

69438D

STEERING GEAR ARM ("A" only) (order 356552R91), 96390 up

1шт.

181407

BOLT,Hex, 7/16" - 20 x 2 1/4", Gr 5

CAP SCREW, 7/16 x 2-1/4" N.F. hex head

1шт.

103027

HEX NUT, 7/16" N.F.

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

27

46347D

TIE ROD BALL SEAT, end ("A" only) (order 57874D)

1шт.

27

57874D

CAP

TIE ROD BALL SEAT, end (not "N" or "BN") (will work for 46347D)

1шт.

28

46346D

TIE ROD BALL SEAT, center ("A" only) (order 57873D)

1шт.

28

57873D

TIE ROD BALL SEAT, center (not "B" or "BN") (will work for 46346D)

1шт.

29

43470D

SEAT

TIE ROD ADJUSTABLE BALL SEAT ("A" only) (order 57875D)

1шт.

103389

SPLIT PIN/SAFETY PIN,1/8" x 2"

Pin, Split (Cotter), 1/8" x 2"

1шт.

29

57875D

SEAT

TIE ROD ADJUSTABLE BALL SEAT (Not "B" or "BN") (will work for 43470D)

1шт.

103389

SPLIT PIN/SAFETY PIN,1/8" x 2"

Pin, Split (Cotter), 1/8" x 2"

1шт.

30

25086DA

STUD

STEERING GEAR HOUSING DOWEL PIN (Not "B" or "BN")

2шт.

31

117989

WOODRUFF KEY,#19, 3/16" x 1 1/4", HT

Steering worm wheel shaft (not "N" or "BN") (same as 47844D) #19, 3/16" x 1 1/4", HT

1шт.

32

60391DA

STEERING GEAR ARM ("AV only) (order 356553R91), Serial Range: 501-96389

1шт.

181406

BOLT,Hex, 7/16" - 20 x 2", Gr 5

CAP SCREW, 7/16 x 2" N.F. hex head

1шт.

103027

HEX NUT, 7/16" N.F.

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

32

69439D

STEERING GEAR ARM ("AV" only) (order 356553R91), 96390 up

1шт.

181407

BOLT,Hex, 7/16" - 20 x 2 1/4", Gr 5

CAP SCREW, 7/16 x 2-1/4" N.F., hex head

1шт.

103027

HEX NUT, 7/16" N.F.

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

33

58574D

FRONT AXLE STOP SPRING ("AV" only)

2шт.

34

60399DA

FRONT AXLE STOP SPRING RETAINER ("AV" only)

2шт.

117310

PLATE

SCREW, 3/8 x 1-1/2" N.C. fillister head

2шт.

35

9061DAX

STEERING GEAR HOUSING BASE WITH BUSHING AND OIL SEAL, 47703D ("AV" only)

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

6шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

36

8329DX

BRACKET

STEERING SHAFT SUPPORT BRACKET ("B" and "BN" only) (order 9442DX), Serial Range: 501-11873

1шт.

181345

BOLT,Hex, 5/16" - 24 x 1 3/4", Gr 5

1шт.

425-115

NUT,5/16"-24, G5

HEX NUT, 5/16" N.F.

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

36

9442DX

STEERING SHAFT SUPPORT BRACKET WITH LUBRICATOR, 109461 (optional with 365002R11) ("B" and "BN" only) (will work for 8329DX), 11874 up

1шт.

36

365002R11

SUPPORT

STEERING SHAFT SUPPORT BRACKET WITH LUBRICATOR, 109461 (optional with 9442DX)

1шт.

181345

BOLT,Hex, 5/16" - 24 x 1 3/4", Gr 5

1шт.

425-115

NUT,5/16"-24, G5

HEX NUT, 5/16"

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

37

52976D

STEERING SHAFT (Not "B" and "BN"), 111874 up

1шт.

114499

HEX JAM NUT, 3/4" N.F.

1шт.

38

103462

KEY

STEERING SHAFT UNIVERSAL JOINT KEY (Woodruff no. 13 - 3/16 x 1") ("B" and "BN" only) (same as 13054D)

2шт.

39

52977D

STEERING SHAFT UNIVERSAL JOINT ("B" and "BN" only) (order 52977DAX), Serial Range: 501-19308

1шт.

39

52977DA

JOINT

STEERING SHAFT UNIVERSAL JOINT ("B" and "BN" only) (order 52977DAX), 19309 up

1шт.

39

52977DAX

JOINT

STEERING SHAFT UNIVERSAL JOINT WITH TWO PINS, 4376T ("B" and "BN" only) (will work for 52977D, 52977DA)

1шт.

40

4376T

PIN

STEERING SHAFT UNIVERSAL JOINT PIN ("B" and "BN") (use with joint, 52977DA)

2шт.

40

5526T

STEERING SHAFT UNIVERSAL JOINT PIN ("B" and "BN") (use with joint, 52977D)

2шт.

41

43800DA

SEAL

STEERING WORM OIL SEAL ("B" and "BN") (optional with 359257R91)

1шт.

41

359257R91

OIL SEAL

STEERING WORM OIL SEAL ("B" and "BN") (optional with 43800DA)

1шт.

42

8330DCX

STEERING GEAR HOUSING, complete ("B" and "BN" only)

1шт.

181487

LEVER

CAP SCREW, 5/8 x 2-3/4" N.F. hex head

2шт.

179935

BOLT

CAP SCREW, 5/8 x 3" N.C. hex head

2шт.

425-1110

NUT,5/8"-18, G5

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

9617020

PLUG,1/4" - 18 x 0.48"

PIPE PLUG, 1/4" square head

1шт.

103867

PLUG

PIPE PLUG, 3/8" square head

1шт.

43

52980DX

STARTING CRANK BRACKET, complete ("B" and "BN"), Serial Range: 501-40192

1шт.

179814

SPACER

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

43

58143DX

STARTING CRANK BRACKET WITH WELDING NUT ("B" and "BN"), 40193 up

1шт.

179814

SPACER

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

44

Q3673

FITTING

STEERING WORM BUSHING LUBRICATOR ("B" and "BN")

1шт.

45

53218DX

STEERING GEAR HOUSING VENT PLUG WITH FELT ("B" and "BN") (order 356568R1) (also "A", 501 to 36806), 5538 up

1шт.

45

356568R1

STEERING GEAR HOUSING VENT PLUG ("B" and "BN") (will work for 53218DX) (also "A", 501 to 36806), 5538 up

1шт.

45

53961D

STEERING GEAR HOUSING VENT PLUG WITH FELT AND NUT ("B"), Serial Range: 501-5537

1шт.

46

52978DA

STEERING WORM ("B" and "BN")

1шт.

108635

PIN,1/8" x 1 1/8"

Split (Cotter), 1/8" x 1 1/8"

1шт.

47

ST225BT

BALL BEARING

STEERING WORM BEARING IH-C-225-Z ("B" and "BN" only) (will work for ST225)

1шт.

48

52953DX

SHAFT

STEERING WORM WHEEL UPPER BEARING WASHER WITH STUD ("B" and "BN" only)

1шт.

25-118

NUT,1/2"-20, G5

HEX NUT, 1/2" N.F.

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

49

ST278

BEARING, BALL,49.99mm ID x 90mm OD x 20mm W

STEERING WORM WHEEL SHAFT BEARING, upper (IH-L-250) ("B" and "BN")

1шт.

50

52979DB

STEERING WORM WHEEL (31 teeth) ("B" and "BN")

1шт.

51

52951D

GASKET

STEERING WORM WHEEL SHAFT LOWER BEARING CAGE GASKET ("B" and "BN")

1шт.

52

8324D

CAGE

STEERING WORM WHEEL SHAFT LOWER BEARING CAGE ("B" and "BN" only)

1шт.

53

18511D

BEARING

STEERING WORM WHEEL SHAFT BEARING, LOWER (N.D. 3212) ("B" and "BN" only)

1шт.

54

52952D

GASKET

STEERING WORM WHEEL SHAFT LOWER BEARING CAGE COVER GASKET ("B" and "BN" only)

1шт.

55

48776D

SEAL ASSY.

STEERING WORM WHEEL SHAFT OIL SEAL ("B" and "BN")

1шт.

56

8325DX

STEERING WORM WHEEL SHAFT LOWER BEARING CAGE COVER WITH OIL SEAL, 48776D ("B" and "BN" only)

1шт.

NLS

NO LONGER SERVICED

CAP SCREW, 7/16 x 1-1/2" N.C. hex head

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

57

53001DX

STEERING WORM WHEEL SHAFT WITH STUD, 53002D ("B" AND "BN")

1шт.

58

53002D

STUD

STEERING WORM WHEEL SHAFT STUD ("B" and "BN")

4шт.

25-118

NUT,1/2"-20, G5

HEX NUT, 1/2" N.F.

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

59

52950DA

FRONT WHEEL FORK ("B" and "BN" only)

1шт.

179849

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

2шт.

280136

NUT,3/8"-16, G8

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

60

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

STEERING SHAFT UNIVERSAL JOINT LUBRICATOR ("B" and "BN") (optional with 109354) (same as Q3626)

1шт.

60

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

STEERING SHAFT UNIVERSAL JOINT LUBRICATOR ("B" and "BN") (optional with 109462) (same as HA59603)

1шт.

356552R91

STEERING GEAR ARM WITH SHAFT SERVICE PACKAGE ("A" only) (will work for 47683DB, 47684DB and 69438D)

1шт.

356553R91

STEERING GEAR ARM WITH SHAFT SERVICE PACKAGE ("AV" only) (will work for 47683DB, 60391DA AND 69439D)

1шт.

Выбрано товаров: 177
