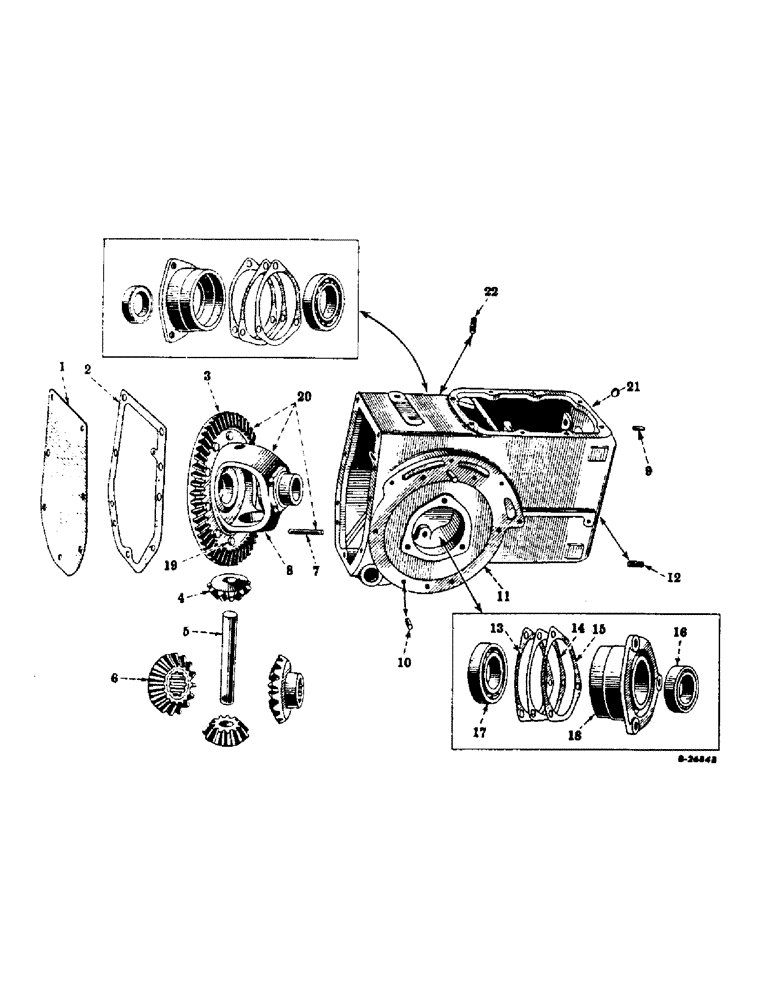

Запчасти Case IH FARMALL A (090) - CHASSIS, TRANSMISSION CASE AND DIFFERENTIAL (12) - CHASSIS

1

46060D

TRANSMISSION CASE REAR COVER PLATE

1шт.

413-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

7/16 x 1" N.C. hex head

7шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

7шт.

2

46061DA

GASKET

TRANSMISSION CASE REAR COVER PLATE GASKET (Optional with 60589D) ("A" and "B" only, Serial Range: 501-39021

1шт.

2

60589D

TRANSMISSION CASE REAR COVER PLATE GASKET (will work for 46061DA) 39022 up

1шт.

3

46371DX

GEAR

DIFFERENTIAL DRIVE GEAR WITH RIVETS, 53972VA

1шт.

4

42099H

DIFFERENTIAL PINION (11 teeth) (order 50817R1)

2шт.

4

58342D

DIFFERENTIAL PINION (11 teeth) (order 50817R1), Serial Range: up-172632

2шт.

4

50817R1

GEAR

DIFFERENTIAL PINION (10 teeth), 172633 up

2шт.

5

1094Y

SHAFT

DIFFERENTIAL PINION SHAFT

1шт.

6

42098H

DIFFERENTIAL GEAR (16 teeth) (Order 50818R1)

2шт.

6

58341D

DIFFERENTIAL GEAR (16 teeth) (Order 50818R1), Serial Range: 501-172632

2шт.

6

50818R1

GEAR

DIFFERENTIAL GEAR (16 teeth) 172633 up

2шт.

7

95022H

AXLE PIN

DIFFERENTIAL PINION SHAFT LOCK PIN, 34676 up

1шт.

7

1095Y

DIFFERENTIAL PINION SHAFT RETAINER SCREW, Serial Range: 501-34675

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

8

6579DBX

DIFFERENTIAL CASE WITH RIVETS, 53972VA (order 6579DBY)

1шт.

8

6579DBY

DIFFERENTIAL CASE, with lock pin, 95022H and rivets, 53972VA (will work for 6579DX and DBX)

1шт.

9

35732R1

TRANSMISSION CASE TO CLUTCH HOUSING DOWEL PIN (will work for 15945D)

2шт.

10

24550

REAR AXLE AND DIFFERENTIAL HOUSING DOWEL

4шт.

11

8105DX

TRANSMISSION CASE (order 8846DBY), Serial Range: 501-39021

1шт.

14400

LIGHT

PIPE PLUG, 1" countersunk head (steel) (optional with 103876)

1шт.

103876

PIPE PLUG, 1" countersunk head (case iron) (optional with 144000)

1шт.

103867

PLUG

PIPE PLUG, 3/8"

1шт.

104940

PLUG

CORK, #5 tapered

2шт.

11

8846DBX

TRANSMISSION CASE, 39022 up

1шт.

144000

PLUG

PIPE PLUG, 1" countersunk head (steel) (optional with 103876)

1шт.

103867

PLUG

PIPE PLUG, 3/8"

1шт.

104940

PLUG

CORK, #4 tapered

2шт.

11

8846DBY

TRANSMISSION CASE, complete (will work for 8105DX), Serial Range: 501-39021

1шт.

11

355793R91

TRANSMISSION CASE, 8846 DBX with six nuts, 103027 and six washers, 103322 (will work for 846DAX), 39002 up

1шт.

12

7210T

TRANSMISSION COUNTERSHAFT BEARING CAGE STUD

1шт.

103026

NUT,3/8"-24, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

13

46062D

SHIM

DIFFERENTIAL BALL BEARING RETAINER SHIM, light

1шт.

13

50492D

SHIM

DIFFERENTIAL BALL BEARING RETAINER SHIM, fine

1шт.

14

46063D

SHIM

DIFFERENTIAL BALL BEARING RETAINER SHIM, medium

1шт.

15

46064D

SHIM

DIFFERENTIAL BALL BEARING RETAINER SHIM, heavy

1шт.

16

46282D

SEAL

DIFFERENTIAL BALL BEARING RETAINER OIL SEAL

2шт.

16a

(Not used)

1шт.

17

ST202

BEARING, BALL,45mm ID x 85mm OD x 19mm W

DIFFERENTIAL BALL BEARING (IH-C-245)

2шт.

18

6578DBX

DIFFERENTIAL BALL BEARING RETAINER WITH OIL SEAL, 46282D and seal ring, 355740R1)

2шт.

413-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

CAP SCREW, 7/16 x 1" N.C. hex head

6шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

6шт.

19

53972VA

RIVET

DIFFERENTIAL DRIVE GEAR RIVET

10шт.

20

46385DA

DIFFERENTIAL CASE WITH DRIVE GEAR, complete

1шт.

20

(Not used)

1шт.

21

172558

PLUG,Exp, 1 1/4"

TRANSMISSION CASE IDLER SHAFT HOLE PLUG (same as 13806D), 51684 up

1шт.

21

47280D

TRANSMISSION CASE IDLER SHAFT HOLE PLUG, Serial Range: 501-51863

1шт.

22

355790R1

STUD

REAR AXLE HOUSING, left hand, mounting stud (used with transmission case, 8846DAXA and 355793R91)

6шт.

103027

HEX NUT, 7/16" N.F. (used with transmission case, 8846DBX and 355793R91)

6шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, (Used with transmission case, 8846DBX and 355793R91) 7/16"

6шт.

355740R1

O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro

DIFFERENTIAL BALL BEARING RETAINER SEAL RING

1шт.
