Запчасти Case IH FARMALL A (083) - CHASSIS, CLUTCH HOUSING, CONTROLS AND CONNECTIONS (12) - CHASSIS

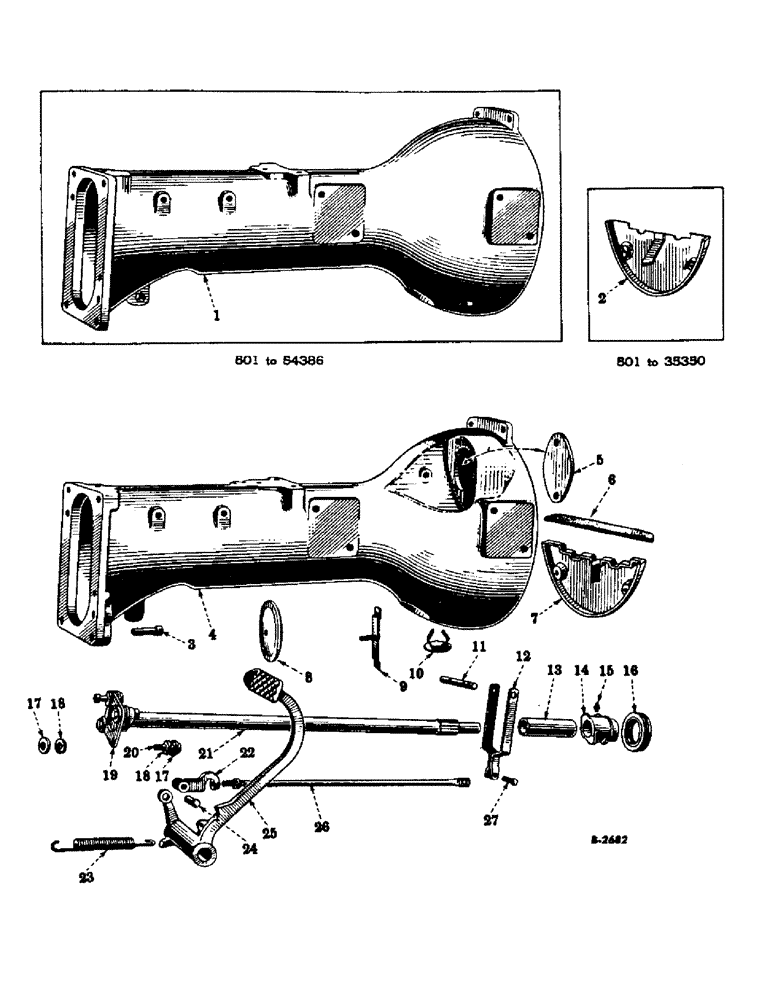

Схема запчастей Case IH FARMALL A - (083) - CHASSIS, CLUTCH HOUSING, CONTROLS AND CONNECTIONS (12) - CHASSIS
18
7
14
27
22
8
6
11
17
2
23
15
18
25
17
20
24
12
19
3
13
5
4
16
9
21
26
10
1

Артикул

Название

Примечание

Количество

1

6830DCX

CLUTCH HOUSING WITH CORKS AND SLEEVE GUIDE, 43546D (Optional with 8638DEY with starter pad cover, 48554D), Serial Range: 47218-54386

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

2шт.

179887

CABLE

CAP SCREW, 1/2 x 1-3/4" N.C. hex head

4шт.

179933

CAP SCREW, 5/8 x 2-1/2" N.C. hex head

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

CORK, no. 4 (7/16 - 5/8, 13/16" long)

8шт.

1

6830DCY

CLUTCH HOUSING, 6830DCX, with two dowels, 58747D and four cap screw 179932 (for "A" and "B" only) (will work for 6830DX, DAX, DBX) (optional with 8638DEX with starter pad cover, 48554D), Serial Range: 501-47217

1шт.

2

47714DX

CLUTCH HOUSING COVE WITH 2 SPACERS AND POINTER ("A" and "B" only) (order 8778DASX), Serial Range: 501-35350

1шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

CAP SCREW, 5/16 x 1" N.C. hex. head

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

3

357232R1

PIN

TRANSMISSION CASE CLUTCH HOUSING DOWEL (will work for 15945D), 51864 up

2шт.

3

58747D

TRANSMISSION CASE CLUTCH HOUSING DOWEL (will work for 22977DA), Serial Range: 501-51863

2шт.

4

8638DEX

CLUTCH HOUSING WITH CORKS AND SLEEVE GUIDE, 43546D, 54387 up

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

2шт.

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

CAP SCREW, 1/2 x 1-3/4" N.C. hex head

4шт.

179933

CAP SCREW, 5/8 x 2-1/2" N.C. hex head

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

CORK, no. 4 (7/16 - 5/8, 13/16" long)

8шт.

4

8638DEY

CLUTCH HOUSING, 8638DEX with two dowels, 58747D, starter pad cover, 48554D and four cap screws, 179932 ("A" and "B" only) (will work for 6830DX, DAX, DBX, DCX and DCY), Serial Range: 501-54386

1шт.

5

48554D

STARTER PAD COVER, 54387 up

1шт.

179877

CAPSCREW,Hex, 1/2" - 13 x 5/8"

CAP SCREW, 1/2 x 5/8" N.C. hex head

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

6

57575D

SEAL

CLUTCH HOUSING COVER FELT (used with cover, 8778DAX), 35351 up

1шт.

7

8778DAX

CLUTCH HOUSING COVER WITH FELT, 57575D (order 354910R91), 35351 up

1шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

7

354910R91

CLUTCH HOUSING COVER, 354909R1 with two screws, 179812 and two washers, 103320 (will work for 8778DAX)

1шт.

7

354909R1

COVER

CLUTCH HOUSING COVER

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

CAP SCREW, 5/16 x 1/2" N.C. hex head

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

8

57576DX

COVER ASSY

CLUTCH HOUSING HAND HOLE COVER WITH FELT, 35351 up

1шт.

9

57578DX

STRAP

CLUTCH HOUSING HAND HOLE COVER BAR WITH WELDING BOLT, 35351 up

1шт.

129-409

WING NUT,1/4"-20

NUT, WING, 1/4"-20

1шт.

10

57579DX

COVER

CLUTCH HOUSING DUST COVER WITH SPRING, 35351 up

1шт.

111871

RIVET,Oval Hd, 1/8" x 5/32"

2шт.

11

46278DAR

AXLE PIN

CLUTCH RELEASE YOKE PIVOT PIN

1шт.

103396

PIN, SPLIT (COTTER),5/32" x 1"

5/32" x 1"

2шт.

12

47716D

CLEVIS COUPLING

CLUTCH RELEASE YOKE

1шт.

13

43546D

GUIDE

CLUTCH RELEASE SLEEVE GUIDE

1шт.

14

6116D

SLEEVE

CLUTCH RELEASE SLEEVE

1шт.

15

109461

LUBE NIPPLE,1/8"-27 x .66 lg

CLUTCH RELEASE SLEEVE LUBRICATOR (same as Q3615)

1шт.

16

18567D

THRUST BEARING,52.39mm ID x 83.95mm OD x 20.45mm W

CLUTCH RELEASE BEARING (Nice 5015-1) (optional with 55211D or 55212D)

1шт.

16

55211D

BEARING

CLUTCH RELEASE BEARING (Bantam F-124-A) (optional with 18567D or 55212D)

1шт.

16

55212D

BEARING

CLUTCH RELEASE BEARING (Aetna A-801) (optional with 18567D or 55211D)

1шт.

17

43551D

RETAINER

CLUTCH DRIVE SHAFT JOINT RUBBER WASHER RETAINER

8шт.

18

43550D

RUBBER WASHER

CLUTCH DRIVE SHAFT JOINT RUBBER WASHER

8шт.

19

43549D

PLATE ASSY.

CLUTCH DRIVE SHAFT JOINT DISC

1шт.

20

43552DBX

SCREW

CLUTCH DRIVE SHAFT JOINT SCREW WITH NUT, 103026 AND LOCKWASHER, 103321

4шт.

21

351852R2

SHAFT

CLUTCH SHAFT (will work for 46286D)

1шт.

22

49401D

YOKE

CLUTCH ROD ADJUSTABLE YOKE

1шт.

23

47845DA

SPRING

CLUTCH PEDAL RETURN SPRING

1шт.

24

26480D

CLUTCH ROD YOKE PIN (will work for 16881D)

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

25

6400DA

CLUTCH PEDAL

1шт.

26

49402D

BOLT

CLUTCH OPERATING ROD

1шт.

103027

HEX NUT, 7/16" N.F.

2шт.

27

H1290

EXCITER

CLUTCH ROD END PIN

1шт.

27

B92-1/2

CLUTCH ROD END PIN (same as H1290)

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

57581DA

CLUTCH HOUSING DUST SEAL FIELD CHANGE PACKAGE, Serial Range: 501-35350

1шт.

66584D

FITTING

CLUTCH PEDAL LUBRICATOR (3/16")

1шт.

103026

NUT,3/8"-24, G5

(Used with clutch drive shaft joint screw) 3/8"-24, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (Used with clutch drive shaft joint screw) 3/8"

4шт.

127800

FITTING

STRAIGHT LUBRICATOR FITTING 1/8"

1шт.

179932

SCREW,Hex, 5/18" - 11 x 2 1/4"

CAP SCREW, 5/8 x 2-1/4" N.C. hex head (used with clutch housing)

4шт.

Выбрано товаров: 67
