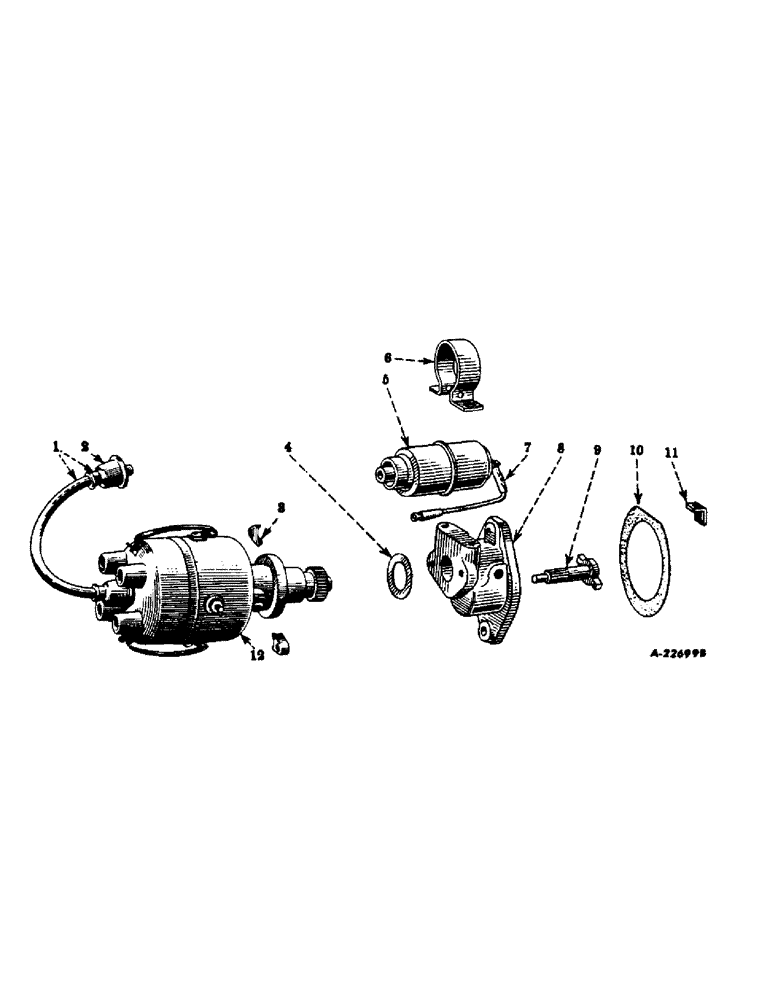

Запчасти Case IH FARMALL A (039) - ELECTRICAL SYSTEM (06) - ELECTRICAL SYSTEMS

353870R91

BATTERY IGNITION UNIT (Less ref. nos. 10 and 11)

1шт.

1

356686R92

CABLE

coil to distributor with 2 nipples, 251553R1 (secondary) (Will work for 49125D)

1шт.

2

251553R1

BOOT

NIPPLES

2шт.

3

353937R1

CLIP

DISTRIBUTOR CLAMP

2шт.

180078

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

CAP SCREW, 5/16 x 7/8" N.C. hex head (Cadmium plated)

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

4

353936R2

GASKET

DISTRIBUTOR GASKET

1шт.

5

353874R91

COIL

IGNITION COIL (6 volt)

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

6

353889R1

CLAMP

COIL CLAMP

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

2шт.

132926

SCREW,Sl Rnd Hd, #10 - 32 x 1/4"

SLOTTED SCREW, No. 10-32 x 1-1/4" round head (Cadmium plated)

1шт.

120611

NUT,#10 - 32

SQUARE NUT, No. 10-32 (Cadmium plated)

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32" I.D. x 11/16" O.D. x No. 16 Ga. (Cadmium plated)

2шт.

7

353942R11

CABLE, coil to distributor, primary

1шт.

8

353933R11

DISTRIBUTOR DRIVE HOUSING

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

CAP SCREW, 3/8 x 1-1/8" N.C. hex head

2шт.

413-630

BOLT,Hex, 3/8" - 16 x 1-7/8", Gr 5

3/8 x 1-7/8" N.C. hex head

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

103003

PIPE PLUG, 1/8" headless slotted

1шт.

9

353934R11

SHAFT

DISTRIBUTOR DRIVE SHAFT

1шт.

10

46168DB

GASKET

DISTRIBUTOR DRIVE HOUSING GASKET

1шт.

11

46868D

CLIP

DISTRIBUTOR MOUNTING CLIP

1шт.

12

353890R91

DISTRIBUTOR

complete

1шт.

353938R91

BATTERY IGNITION PACKAGE (Tractors equipped with magnetos and electric starting and/or lighting)

1шт.
