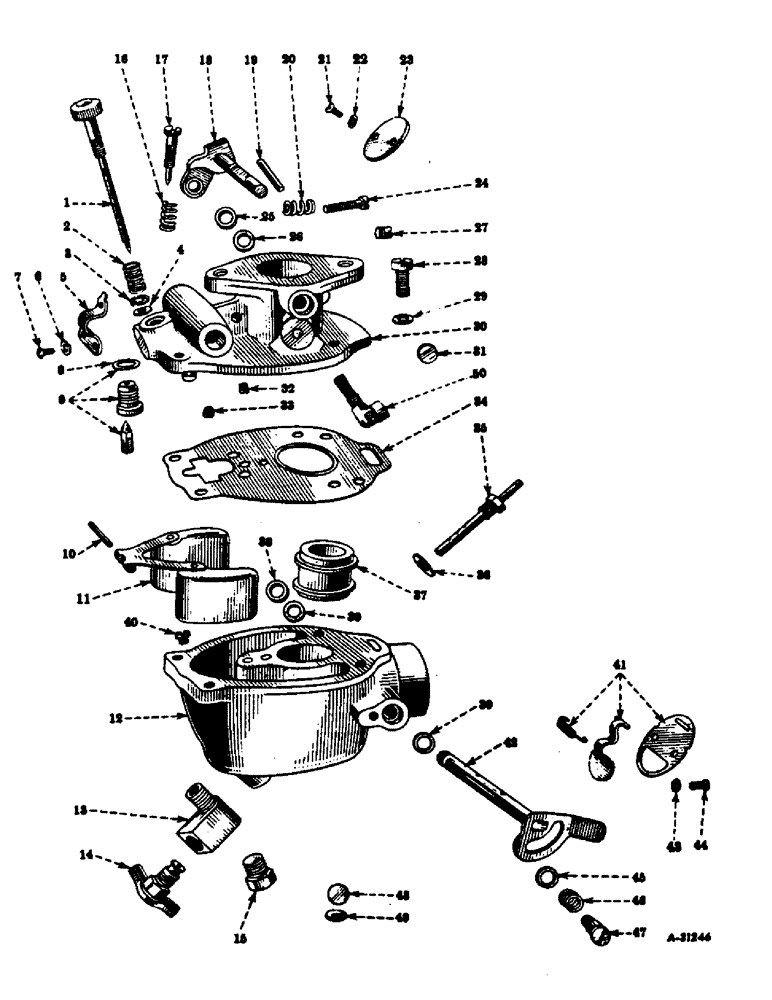

Запчасти Case IH FARMALL A (026) - ENGINE, CARBURETOR, MARVEL-SCHEBLER (01) - ENGINE

69401D

CARBURETOR

complete (Model TSX-157)(Gasoline)(Mfr's no. 10-2657) (Optional with Zenith carburetor, 52499DB)

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

69402D

CARBURETOR

complete (Model TSX-156)(Kerosene or distillate - special)(Optional with Zenith carburetor, 48616DC)(Mfr's no. 10-2656)

1шт.

220065

HEX NUT, 5/16" N.C.

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

1

69967D

MAIN JET ADJUSTMENT (Kerosene or distillate)(Mfr's no. 43-554)

1шт.

2

69965D

MAIN JET ADJUSTMENT SPRING (Kerosene or distillate)(Mfr's no. 24-489)

1шт.

3

69971D

MAIN JET ADJUSTMENT WASHER (Kerosene or distillate)(Mfr's no. 78-299)

1шт.

4

69963D

MAIN JET ADJUSTMENT GASKET (Kerosene or distillate)(Mfr's no. 16-491)

1шт.

5

69966D

MAIN JET ADJUSTMENT RATCHET (Kerosene or distillate)(Mfr's no. 24-501)

1шт.

6

69936D

MAIN JET ADJUSTMENT RATCHET SCREW LOCKWASHER (Kerosene or distillate)(Mfr's no. 78-322)

2шт.

7

69945D

MAIN JET ADJUSTMENT RATCHET SCREW (Kerosene or distillate)(Mfr's no. 15-8)

2шт.

8

69950D

GASKET

FUEL VALVE WASHER (Mfr's no. 16-4)

1шт.

9

69956D

HYDRAULIC VALVE

FUEL VALVE, complete (Matched)(Mfr's no. 233-536)

1шт.

10

69920D

SHAFT

FLOAT AXLE (Mfr's no. 32-27)

1шт.

11

69919D

FLOAT

(Mfr's no. 30-600)

1шт.

12

69921D

FUEL BOWL, complete (Gasoline)(Includes reference nos. 38, 39, 48 and 49)(Mfr's no. 10-2676)

1шт.

12

69933D

FUEL BOWL, complete (Kerosene or distillate)(Includes reference nos. 38, 39, 48 and 49)(Mfr's no. 10-2700)

1шт.

13

69970D

DRAIN COCK ELBOW (Kerosene or distillate)(Mfr's no. 69-24)

1шт.

14

69972D

DRAIN COCK (Kerosene or distillate)(Mfr's no. 87-3A)

1шт.

15

69940D

PLUG

DRAIN PLUG (Gasoline)(Mfr's no. 99-7)

1шт.

16

69954D

SPRING

IDLE ADJUSTING SCREW SPRING (Mfr's no. 24-340)

1шт.

17

69923D

SCREW

IDLE ADJUSTING SCREW (Mfr's no. 43-33)

1шт.

18

69922D

SHAFT

THROTTLE SHAFT WITH LEVER, complete (Includes reference nos. 20 and 24)(Mfr's no. 13-879)

1шт.

19

69932D

THROTTLE STOP PIN (Mfr's no. 62-167)

1шт.

20

69953D

SPRING

THROTTLE STOP SCREW SPRING (Mfr's no. 24-262)

1шт.

21

352701R91

SCREW

THROTTLE PLATE SCREW (Will work for 69945D)(Mfr's no. 15-A-91)

2шт.

22

69936D

THROTTLE PLATE SCREW LOCKWASHER (Used with screw, 69945D only) (Mfr's no. 78-322)

2шт.

23

69944D

THROTTLE PLATE (Mfr's no. 14-175)

1шт.

24

69946D

THROTTLE STOP SCREW (Mfr's no. 15-42)

1шт.

25

69931D

RETAINER

THROTTLE SHAFT PACKING RETAINER (Mfr's no. 55-231)

1шт.

26

69924D

PACKING

THROTTLE SHAFT PACKING WASHER (Mfr's no. 44-38)

1шт.

27

69947D

IDLE DRILLING SCREW (Mfr's no. 15-223)

1шт.

28

69949D

BODY TO BOWL SCREW (Mfr's no. 15-443)

4шт.

29

12795D

BODY TO BOWL SCREW LOCKWASHER (Mfr's no. 78-154)

4шт.

30

69943D

THROTTLE BODY, complete (Gasoline)(Mfr's no. 227-917)(Includes reference no. 18, 19, 21, 22, 23, 25, 26 and 31)

1шт.

30

69973D

THROTTLE BODY, complete (Kerosene or distillate)(Mfr's no. 227-939)(Includes reference nos. 18, 19, 21, 22, 23, 25, 26 and 31)

1шт.

31

69930D

CUP

THROTTLE SHAFT HOLE PLUG (Mfr's no. 55-230)

1шт.

32

69926D

ECONOMIZER JET (gasoline)(Mfr's no. 49-264)

1шт.

32

69929D

ECONOMIZER JET (Kerosene or distillate)(Mfr's no. 49-161)

1шт.

33

69929D

IDLING JET (Mfr's no. 49-101L)

1шт.

34

69952D

GASKET

BOWL TO BODY GASKET (Mfr's no. 16-80)

1шт.

35

69968D

MAIN DISCHARGE JET (Mfr's no. 47-270)

1шт.

36

69951D

GASKET

MAIN DISCHARGE JET WASHER (Mfr's no. 16-28)

1шт.

37

69925D

VENTURI

(5/8")(Mfr's no. 46-448)

1шт.

38

69931D

RETAINER

AIR SHUTTER PACKING RETAINER (Mfr's no. 55-231)

1шт.

39

69924D

PACKING

AIR SHUTTER PACKING WASHER (Mfr's no. 44-38)

2шт.

40

69928D

MAIN JET (gasoline)(Mfr's no. 49-196)

1шт.

41

70144D

AIR SHUTTER (Mfr's no. 27-554)

1шт.

42

69917D

AIR SHUTTER SHAFT WITH LEVER (Mfr's no. 26-696)

1шт.

43

69936D

AIR SHUTTER SCREW LOCKWASHER (Used with screw 69945D only) (Mfr's no. 78-322)

2шт.

44

352701R91

SCREW

AIR SHUTTER SCREW (will work for 69945D)(Mfr's no. 15-A-91)

2шт.

45

69937D

AIR SHUTTER STOP SCREW WASHER (Mfr's no. 78-184)

1шт.

46

69955D

AIR SHUTTER STOP SCREW SPRING (Mfr's no. 24-480)

1шт.

47

69948D

AIR SHUTTER STOP SCREW (Mfr's no. 15-397)

1шт.

48

69939D

DRIP PLUG FELT (Mfr's no. 95-40)

1шт.

49

69942D

DRIP PLUG WASHER (Mfr's no. 179-35)

1шт.

50

69938D

ELBOW

FILTER SCREEN (Mfr's no. 67-528)

1шт.

24520D

GASKET

CARBURETOR GASKET

1шт.

69957D

GASKET PACKAGE (Gasoline)(Mfr's no. 16-634)(Includes 24520D and reference nos. 8, 34, and 36)

1шт.

69961D

KIT

REPAIR KIT PACKAGE (gasoline)(Includes gasket package, 69957D and reference nos. 9, 10, 17, 18, 21, 25, 26, 31, 32, 33, 38, 39, 40, 44 and 46)(Mfr's no. 286-673)

1шт.

69962DA

REPAIR KIT PACKAGE (Kerosene or distillate)(Includes gasket package, 69964D and reference nos. 9, 10, 17, 18, 21, 25, 26, 31, 32, 33, 38, 39, 44, and 46)(Mfr's no. 286-672)

1шт.

69964D

GASKET PACKAGE (Kerosene or distillate)(Includes 24520D and reference nos. 4, 8, 34 and 36)(Mfr's no. 16-635)

1шт.
