Запчасти Case IH FARMALL A (176) - ATTACHMENTS, REAR WHEEL WEIGHTS, SPECIAL Attachments

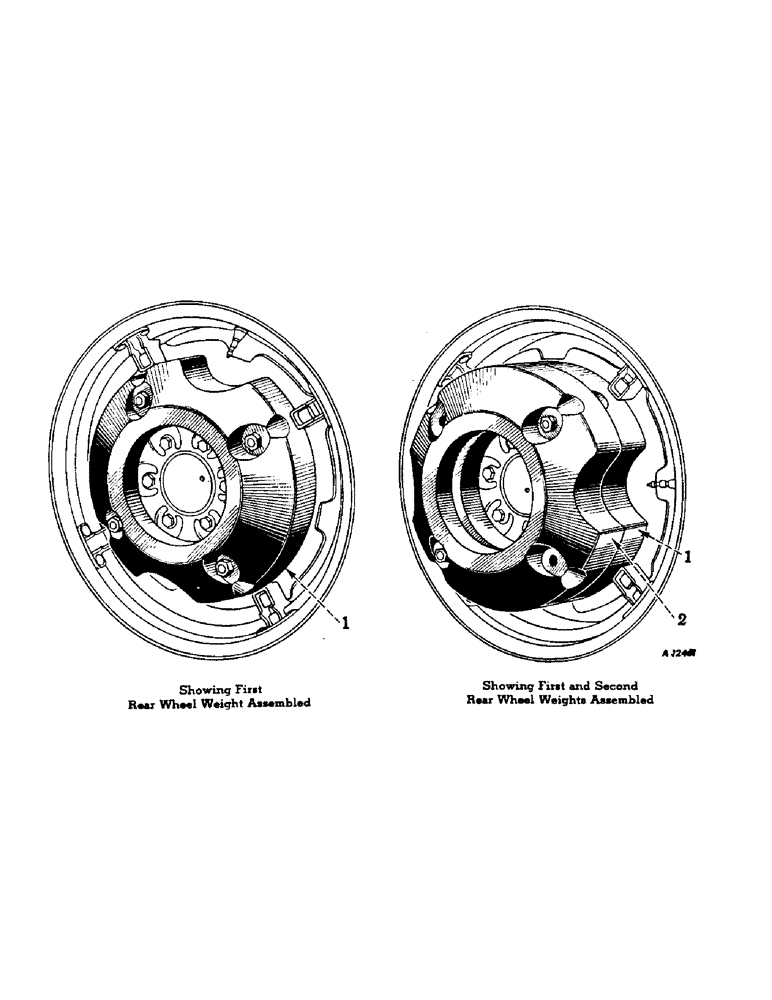

Схема запчастей Case IH FARMALL A - (176) - ATTACHMENTS, REAR WHEEL WEIGHTS, SPECIAL Attachments
1
2
1

Артикул

Название

Примечание

Количество

50476D

REAR WHEEL WEIGHT ATTACHMENT, first, Serial Range: 501-5563

1шт.

50477D

REAR WHEEL WEIGHT ATTACHMENT, second, Serial Range: 501-5563

1шт.

For "A", "B" and "BN" tractors with standard disc wheel

1шт.

6701DA

REAR WHEEL WEIGHT, first (Approximately 140 lbs.)

2шт.

15176R1

SCREW,Sq Nk, 5/8" - 11 x 3 1/2", Gr 2

CARRIAGE BOLT, 5/8 x 3-1/2"

8шт.

114820

HEX NUT, 5/8" N.C.

8шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

2

6701DA

REAR WHEEL WEIGHT, second (Approximately 140 lbs.)

2шт.

15348R1

CARRIAGE BOLT, 5/8 x 6-3/4"

4шт.

114820

HEX NUT, 5/8" N.C.

4шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

54142D

REAR WHEEL WEIGHT ATTACHMENT, first, 5564 up

1шт.

54143D

REAR WHEEL WEIGHT ATTACHMENT, second, 5564 up

1шт.

For "A" tractors equipped with heavy rear wheel, 8529 DA, R.H.

1шт.

1

6701DA

REAR WHEEL WEIGHT, first, L.H.

1шт.

15176R1

SCREW,Sq Nk, 5/8" - 11 x 3 1/2", Gr 2

CARRIAGE BOLT, 5/8 x 3-1/2"

4шт.

114820

HEX NUT, 5/8" N.C.

4шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

1

6701DA

REAR WHEEL WEIGHT, first, R.H.

1шт.

15314R1

CARRIAGE BOLT, 5/8 x 5-3/4" (order 16149R1)

4шт.

16149R1

CAP SCREW, 5/8 x 5-3/4" N.C. hex head

4шт.

114820

HEX NUT, 5/8" N.C.

4шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

2

6701DA

REAR WHEEL WEIGHT, second, L.H.

1шт.

15348R1

CARRIAGE BOLT, 5/8 X 6-3/4"

2шт.

114820

HEX NUT, 5/8" N.C.

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

2

6701DA

REAR WHEEL WEIGHT, second, R.H.

1шт.

16157R1

CAP SCREW, 5/8 x 9" N.C. hex head

2шт.

220080

GASKET

HEX NUT, 5/8" N.C.

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

6701DA

REAR WHEEL WEIGHT, first

2шт.

15314R1

CARRIAGE BOLT, 5/8 x 5-3/4" (order 16149R1)

8шт.

16149R1

CAP SCREW, 5/8 x 5-3/4" N.C. hex head

8шт.

114820

HEX NUT, 5/8" N.C.

8шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

6701DA

REAR WHEEL WEIGHT, second

2шт.

16157R1

CAP SCREW, 5/8 x 9" N.C. hex head

4шт.

220080

GASKET

HEX NUT, 5/8" N.C.

4шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

57152D

REAR WHEEL WEIGHT ATTACHMENT, first, 5564 up

1шт.

57153D

REAR WHEEL WEIGHT ATTACHMENT, second, 5564 up

1шт.

For "B" and "BN" tractors equipped with heavy rear wheels, 8529DA

1шт.

Выбрано товаров: 43
