Запчасти Case IH FARMALL A (170) - ATTACHMENTS, POWER TAKE-OFF, SPECIAL Attachments

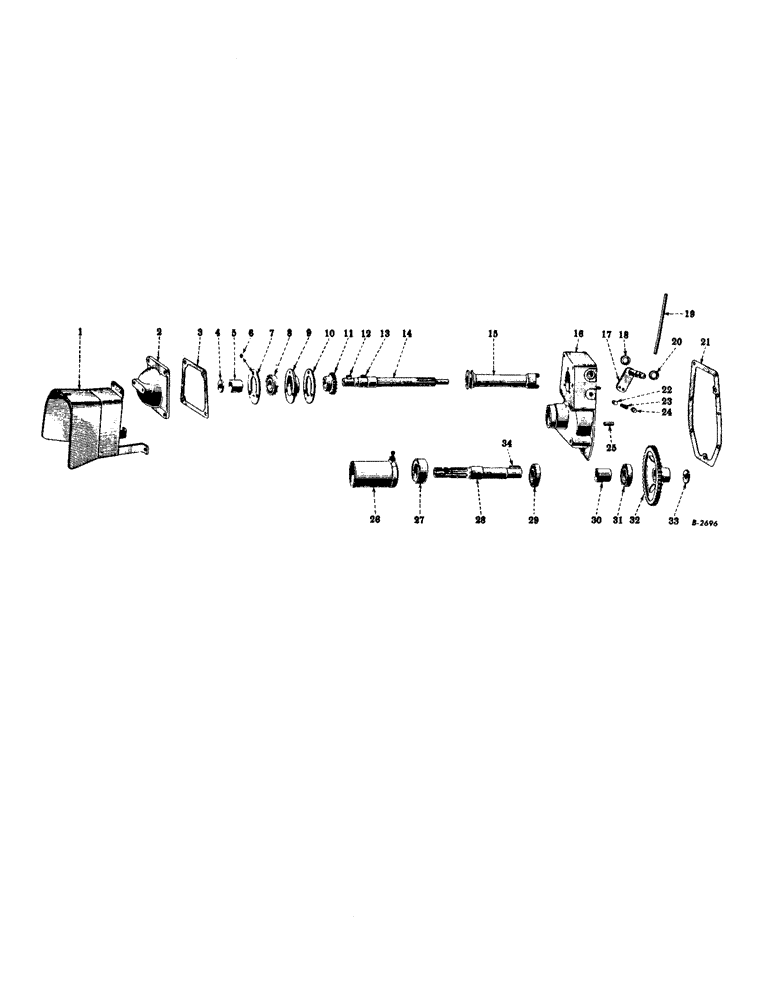

Схема запчастей Case IH FARMALL A - (170) - ATTACHMENTS, POWER TAKE-OFF, SPECIAL Attachments
23
30
15
22
34
8
11
18
29
32
25
14
2
5
9
28
17
24
27
7
33
13
3
19
31
1
16
12
10
6
26
21
20
4

Артикул

Название

Примечание

Количество

60601D

POWER TAKE-OFF ATTACHMENT (order 66189D)

1шт.

66189D

POWER TAKE-OFF ATTACHMENT (will work for 60601D) 66671 up

1шт.

1

55403DA

POWER TAKE-OFF SAFETY SHIELD

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8 x 7/8" N.C. hex hd

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

2

9092D

COVER

POWER TAKE-OFF COVER

1шт.

186292

BOLT,Hex, 7/16" - 14 x 4 1/4", Gr 5

CAP SCREW, 7/16 x 4-1/4" N.C. hex head

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

3

60581D

GASKET

POWER TAKE-OFF COVER GASKET

1шт.

4

43262DA

WASHER

POWER TAKE-OFF DRIVE SHAFT WASHER

1шт.

5

48152D

SPACER

POWER TAKE-OFF DRIVE SHAFT SPACER

1шт.

6

93-41039

LOCK WASHER,Ext Tooth, 3/8"

POWER TAKE-OFF DRIVE SHAFT BEARING RETAINER BOLT LOCKWASHER, 82579 up (shakeproof 1120) (same as 21491H)

3шт.

7

63778D

POWER TAKE-OFF DRIVE SHAFT BEARING RETAINER, 82579 UP

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

8

ST212

BALL BEARING,30mm ID x 62mm OD x 16mm W

POWER, TAKE-OFF DRIVE SHAFT BEARING (IH-L-230)

1шт.

9

60588D

POWER TAKE-OFF DRIVE SHAFT BEARING CAGE

1шт.

10

63779D

GASKET

POWER TAKE-OFF DRIVE SHAFT BEARING CAGE GASKET, 82579 UP

1шт.

11

351975R1

GEAR

POWER TAKE-OFF DRIVE PINION, 17 teeth

1шт.

12

7225T

KEY

BELT PULLEY DRIVE PINION KEY (Woodruff no. 11, 3/16 x 7/8")

1шт.

13

7225T

KEY

POWER, TAKE-OFF DRIVE PINION KEY (Woodruff no. 11, 3/16 x 7/8")

1шт.

14

52666D

POWER TAKE-OFF DRIVE SHAFT

1шт.

181395

BOLT,Hex, 7/16" - 20 x 1", Gr 5

CAP SCREW, 7/16 x 1" N.F. hex head

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

15

52668D

POWER TAKE-OFF SHIFTER

1шт.

16

9091DCX

HOUSING

POWER TAKE-OFF DRIVE HOUSING WITH TWO DOWEL PINS, 357215R1 and plug, 103884

1шт.

179860

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

CAP SCREW, 7/16 x 1-1/4" N.C. hex head

1шт.

179873

BOLT,Hex, 7/16" - 14 x 3 3/4", Gr 5

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

3шт.

17

53517DA

AXLE PIN

POWER TAKE-OFF SHIFTER LEVER SHAFT

1шт.

Q3478

WASHER

25/32" I.D. x 1-1/4" O.D. x no. 14 gauge

1шт.

103397

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

1шт.

18

43645D

WASHER

POWER TAKE-OFF SHIFTER LEVER FELT WASHER

1шт.

19

53515D

ROD

POWER TAKE-OFF SHIFTER LEVER

1шт.

20

Q3478

WASHER

FOLLOWS REFERENCE NO. 17

1шт.

21

46061DA

GASKET

POWER TAKE-OFF DRIVE HOUSING GASKET (optional with 60589D), Serial Range: 501-39021

1шт.

21

60589D

POWER TAKE-OFF DRIVE HOUSING GASKET (will work for 46061DA) 39022 up

1шт.

22

48102D

PIN

POWER TAKE-OFF SHIFTER POPPET

1шт.

23

48103D

VALVE SPRING

POWER TAKE-OFF SHIFTER POPPET SPRING

1шт.

24

103884

PLUG,Slotted, 1/4" NPT

PIPE PLUG, 1/4" slotted head

1шт.

25

357215R1

PIN

POWER TAKE-OFF DRIVE HOUSING DOWEL PIN (will work for 17581D)

2шт.

26

51484DX

POWER TAKE-OFF SHAFT GUARD WITH CLAMP

1шт.

27

48114D

SEAL

POWER TAKE-OFF SHAFT OIL SEAL

1шт.

28

48091D

POWER TAKE-OFF SHAFT (1-1/8" spline) (used with attachment 60601D)

1шт.

28

66184D

SHAFT

POWER TAKE-OFF SHAFT (1-3/8" spline) (used with attachment 66189D)

1шт.

181395

BOLT,Hex, 7/16" - 20 x 1", Gr 5

CAP SCREW, 7/16 x 1" N.F. hex head

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

29

ST213

BALL BEARING,30 mm ID x 62 mm OD x 16 mm

POWER TAKE-OFF SHAFT BEARING (IH-C-230)

1шт.

30

48092D

BUSHING

POWER TAKE-OFF SHAFT BEARING SPACER

1шт.

31

ST213

BALL BEARING,30 mm ID x 62 mm OD x 16 mm

POWER TAKE-OFF SHAFT BEARING (IH-C-230)

1шт.

32

351822R1

GEAR

POWER TAKE-OFF GEAR, 44 teeth

1шт.

33

43262DA

WASHER

POWER TAKE-OFF SHAFT WASHER

1шт.

34

66984D

WOODRUFF KEY,#126, 3/16" x 2 1/8", HT

POWER TAKE-OFF GEAR KEY (Woodruff no. 126, 3/16 x 2-1/8") (will work for 13552D)

1шт.

66191D

POWER TAKE-OFF STANDARDIZATION FIELD CHANGE PACKAGE (to convert tractors with 1-1/8" power take-off spline shaft to 1-3/8" spline shaft), Serial Range: 501-96389

1шт.

Выбрано товаров: 53
