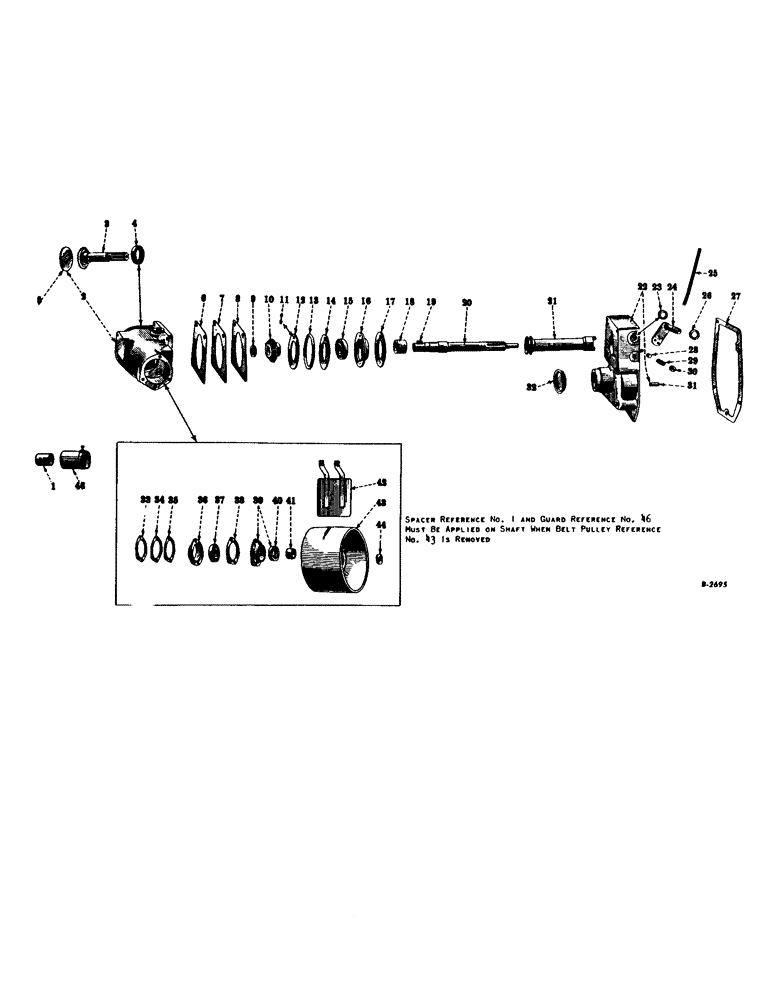

Запчасти Case IH FARMALL A (166) - ATTACHMENTS, BELT PULLEY, SPECIAL Attachments

60602D

BELT PULLEY ATTACHMENT, 66671 UP

1шт.

1

48087D

BELT PULLEY SPACER

1шт.

2

9090DX

BELT PULLEY DRIVE HOUSING WITH PLUGS, 43670D, 103865 and 144000 or 103876

1шт.

186292

BOLT,Hex, 7/16" - 14 x 4 1/4", Gr 5

CAP SCREW, 7/16 x 4-1/4" N.C. hex head

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

3

52632D

BELT PULLEY SHAFT, 23 teeth (order 353329R91), Start Serial: 501

1шт.

181395

BOLT,Hex, 7/16" - 20 x 1", Gr 5

CAP SCREW, 7/16 x 1" N.F. hex head

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

3

351627R1

SHAFT

BELT PULLEY SHAFT, 23 teeth, up

1шт.

181395

BOLT,Hex, 7/16" - 20 x 1", Gr 5

CAP SCREW, 7/16 x 1" N.F. hex head

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

4

63441H

BEARING, ROLLER, CYL,44.01mm ID x 72mm OD x 17mm W

BELT PULLEY SHAFT BEARING, inner (Hyatt 1207-TS) (optional with 350500R91)

1шт.

4

350500R91

ROLLER BEARING,44.026 mm ID x 71.971 mm OD x 0.6693"

BELT PULLEY SHAFT BEARING, inner (Bower M-1207-EL) (optional with 63441H)

1шт.

5

43670D

PLUG

BELT PULLEY DRIVE HOUSING END PLUG

1шт.

6

355143R1

SHIM

BELT PULLEY DRIVE HOUSING SHIM, extra light

1шт.

6

60582D

SHIM

BELT PULLEY DRIVE HOUSING SHIM, light

1шт.

7

60583D

SHIM

BELT PULLEY DRIVE HOUSING SHIM, medium

1шт.

8

60584D

SHIM

BELT PULLEY DRIVE HOUSING SHIM, heavy

1шт.

9

43262DA

WASHER

POWER TAKE-OFF DRIVE SHAFT WASHER

1шт.

10

43631D

PINION

BELT PULLEY DRIVE BEVEL PINION, 19 teeth (order 353329R91), Start Serial: 501

1шт.

10

351626R1

PINION

BELT PULLEY DRIVE BEVEL PINION, 19 teeth, up

1шт.

11

21491H

WASHER

POWER TAKE-OFF DRIVE SHAFT BEARING RETAINER BOLT WASHER (shakeproof 1120) 82579 UP

3шт.

12

63780D

RETAINER

BELT PULLEY DRIVE HOUSING SEALING RING RETAINER

1шт.

13

358208R1

SEALING RING

BELT PULLEY DRIVE HOUSING SEALING RING (will work for 58419D) 82579 up

1шт.

14

63778D

POWER TAKE-OFF DRIVE SHAFT BEARING RETAINER, 82579 UP

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

15

ST212

BALL BEARING,30mm ID x 62mm OD x 16mm W

POWER TAKE-OFF DRIVE SHAFT BEARING (IH-L-230)

1шт.

16

60588D

POWER TAKE-OFF DRIVE SHAFT BEARING CAGE

1шт.

17

63779D

GASKET

POWER TAKE-OFF DRIVE SHAFT BEARING CAGE GASKET, 82579 UP

1шт.

18

60587D

POWER TAKE-OFF DRIVE PINION SPACER

1шт.

19

7225T

KEY

BELT PULLEY DRIVE PINION KEY (Woodruff no. 11, 3/16 x 7/8")

1шт.

20

52666D

POWER TAKE-OFF DRIVE SHAFT

1шт.

181395

BOLT,Hex, 7/16" - 20 x 1", Gr 5

CAP SCREW, 7/16 x 1" N.F. hex head

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

21

52668D

POWER TAKE-OFF SHIFTER

1шт.

22

9091DCX

HOUSING

POWER TAKE-OFF DRIVE HOUSING WITH TWO DOWELS, 357215R1 and plug, 103884

1шт.

179860

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

CAP SCREW, 7/16 x 1-1/4" N.C. hex head

1шт.

179872

BOLT,Hex, 7/16" - 14 x 3 1/2", Gr 5

CAP SCREW, 7/16 x 3-1/2" N.C. hex head

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

3шт.

23

43645D

WASHER

POWER TAKE-OFF SHIFTER LEVER FELT WASHER

1шт.

24

53517DA

AXLE PIN

POWER TAKE-OFF SHIFTER LEVER SHAFT

1шт.

25

53515D

ROD

POWER TAKE-OFF SHIFTER LEVER

1шт.

26

Q3478

WASHER

25/32" I.D. x 1-1/4" O.D. x no. 14 gauge

1шт.

103397

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

1шт.

27

46061DA

GASKET

POWER TAKE-OFF DRIVE HOUSING GASKET (optional with 60589D), Serial Range: 501-39021

1шт.

27

60589D

POWER TAKE-OFF DRIVE HOUSING GASKET (will work for 46061DA) 39022 up

1шт.

28

48102D

PIN

POWER TAKE-OFF SHIFTER POPPET

1шт.

29

48103D

VALVE SPRING

POWER TAKE-OFF SHIFTER POPPET SPRING

1шт.

30

103884

PLUG,Slotted, 1/4" NPT

PIPE PLUG, 1/4" slotted head

1шт.

31

357215R1

PIN

POWER TAKE-OFF DRIVE HOUSING DOWEL PIN (will work for 17581D)

2шт.

32

60586D

POWER TAKE-OFF DRIVE HOUSING PLUG

1шт.

33

47284D

SHIM

BELT PULLEY SHAFT BEARING CAGE SHIM, light

1шт.

34

47285D

SHIM

BELT PULLEY SHAFT BEARING CAGE SHIM, medium

1шт.

35

47286D

SHIM

BELT PULLEY SHAFT BEARING CAGE SHIM, heavy

1шт.

36

47281D

CAGE

BELT PULLEY SHAFT BEARING CAGE

1шт.

37

ST213

BALL BEARING,30 mm ID x 62 mm OD x 16 mm

BELT PULLEY SHAFT BEARING, outer (IH-C-230) (will work for ST212)

1шт.

38

47283D

BELT PULLEY SHAFT BEARING CAGE GASKET

1шт.

39

48085DBX

FLANGE

BELT PULLEY SHAFT BEARING RETAINER WITH OIL SEAL, 48954D (optional with 365003R11)

1шт.

39

365003R11

BELT PULLEY SHAFT BEARING RETAINER WITH OIL SEAL, 48954D (optional with 48085DBX)

1шт.

40

48954D

SEAL

BELT PULLEY SHAFT OIL SEAL

1шт.

41

43630D

SPACER

BELT PULLEY SHAFT SPACER

1шт.

42

61265D

BELT PULLEY GUARD WITH BRACKET

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

43

8257D

BELT PULLEY (8-1/2" dia. - 6" face)

1шт.

43

58517D

BELT PULLEY (10-1/2" dia. - 6-1/2" face) (optional with 358392R91)

1шт.

43

358392R91

BELT PULLEY (10-1/2" dia. - 6-1/2" face) (optional with 58517D)

1шт.

44

43262DA

WASHER

BELT PULLEY SHAFT WASHER

1шт.

46

54001DX

GUARD

BELT PULLEY SHAFT GUARD WITH CLAMP

1шт.

63755D

BELT PULLEY DRAIVE HOUSING GASKET (order 63781D), Serial Range: 70206-82578

1шт.

63781D

BELT PULLEY HOUSING OIL SEALING FIELD CHANGE PACKAGE - special, Serial Range: 66671-82578

1шт.

353329R91

BELT PULLEY SHAFT AND DRIVE BEVEL PINION SERVICE PACKAGE, consists of pinion 351626R1 and shaft 351627R1 (will work for 43631D and 52632D)

1шт.

103865

PIPE PLUG, 1/8" (in belt pulley drive housing)

1шт.

103876

PIPE PLUG, 1" countersunk head (cast iron) (optional with 144000) (in belt pulley drive housing)

1шт.

144000

PLUG

PIPE PLUG, 1" countersunk head (steel) (optional with 103870) (in belt pulley drive housing)

1шт.
