Запчасти Case IH FARMALL A (146) - ATTACHMENTS, PNEUMATIC "LIFT-ALL" PRESSURE VALVE ROD, PRESSURE VALVE, & MANIFOLD SEALS Attachments

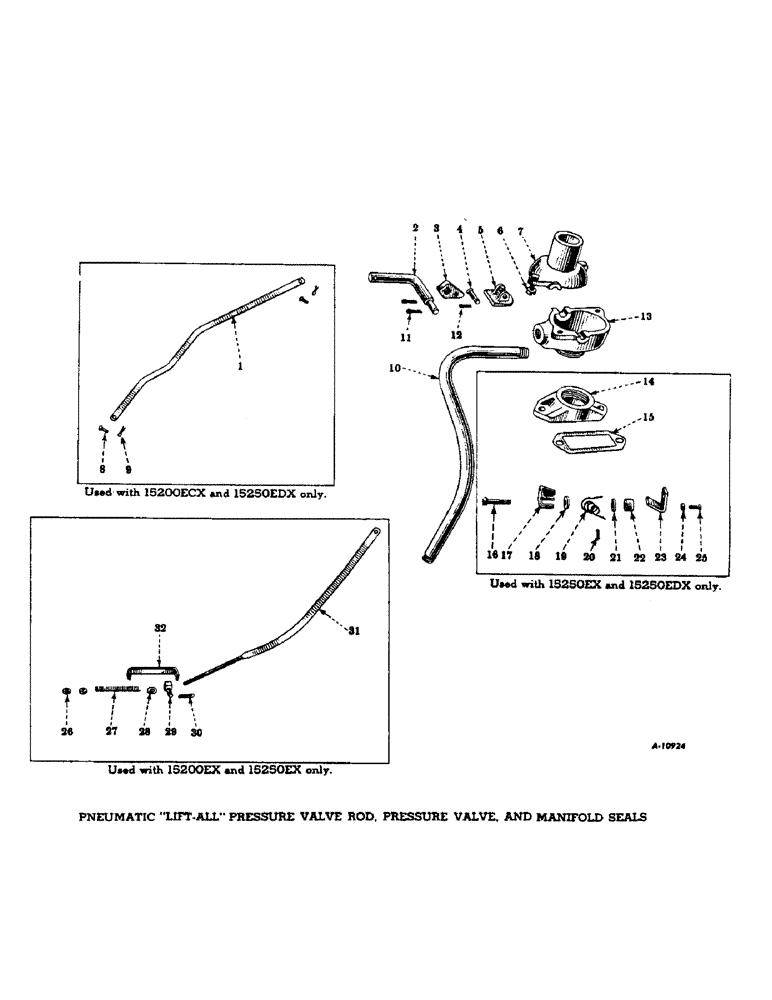

Схема запчастей Case IH FARMALL A - (146) - ATTACHMENTS, PNEUMATIC "LIFT-ALL" PRESSURE VALVE ROD, PRESSURE VALVE, & MANIFOLD SEALS Attachments
1
14
24
29
28
6
19
31
17
32
22
11
25
9
5
4
10
30
13
27
8
7
2
18
23
20
3
21
15
16
26
12

Артикул

Название

Примечание

Количество

1

15271E

VALVE ROD (will work for 15235EAX) (B and D only)

1шт.

2

15243E

VALVE SHAFT

1шт.

3

5063E

LINK

VALVE LINK

1шт.

4

U5349

PIN

5/16 X 1-5/16", drilled

1шт.

5

5064E

VALVE

1шт.

6

13254R1

MACHINE BOLT, 5/16 x 1"

2шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

7

5062EA

VALVE HOUSING COVER

1шт.

8

Q5013

PIN

1/4 x 15/16", drilled

2шт.

9

103383

COTTER PIN,1/8" x 1/2"

Pin, Split (Cotter), 1/8" x 1/2"

2шт.

10

15210E

PIPE

VALVE PIPE

1шт.

11

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

12

103383

COTTER PIN,1/8" x 1/2"

Pin, Split (Cotter), 1/8" x 1/2"

1шт.

13

5061EA

PRESSURE VALVE HOUSING

1шт.

14

5060E

VALVE ADAPTER (C and D only)

1шт.

15

15234E

ADAPTER GASKET (C and D only)

1шт.

16

71913H

REGULATOR SCREW, 3/8 x 1-3/4" (C and D only)

1шт.

17

15351E

PACKING CLAMP (C and D only)

1шт.

18

15354E

PACKING WASHER (C and D only)

1шт.

19

353076R1

BRAIDED ASBESTOS YARN, 1/16 x 21" long (Garlock 1700) (C and D only)

1шт.

20

15241E

PIN, no. 2 (.193) x 3/4", tapered

1шт.

21

15355E

HEAT SHAFT GASKET (C and D only)

1шт.

22

15353E

HEAT SHAFT GASKET CAPS (C and D only)

1шт.

23

15352E

HEAT SHAFT GASKET CLAMP (C and D only)

1шт.

24

13000R1

HEX NUT, 1/4" N.C. (on set screw) (C and D only)

1шт.

25

102874

SET SCREW, 1/4 x 1" N.C. (cup point) (C and D only)

1шт.

26

13000R1

HEX NUT, 1/4" N.C. (A and C only)

2шт.

27

15205E

PRESSURE VALVE ROD SPRING (A and C only)

1шт.

28

Q103

WASHER

17/64" I.D. x 5/8" O.D. x no. 18 ga. (A and C only)

1шт.

29

15211E

ROCK SHAFT SWIVEL (A and C only)

1шт.

30

432-68

COTTER PIN,3/32" x 1/2"

Pin, Split (Cotter), (A and C only) 3/32" x 1/2"

1шт.

31

15206EA

PRESSURE VALVE ROD (A and C only)

1шт.

32

15231E

PRESSURE VALVE ROD CLIP ADJUSTMENT (A and C only)

1шт.

15236EAX

PRESSURE VALVE, complete

1шт.

15266EX

VALVE ADAPTER AND GASKET, complete (C and D only)

1шт.

15350EX

MANIFOLD SEALS IMPROVEMENT PACKAGE (C and D only)

1шт.

Выбрано товаров: 36
