Запчасти Case IH FARMALL A (145) - ATTACHMENTS, PNEUMATIC "LIFT-ALL" CYLINDER, 7 X 13-1/4 INCH Attachments

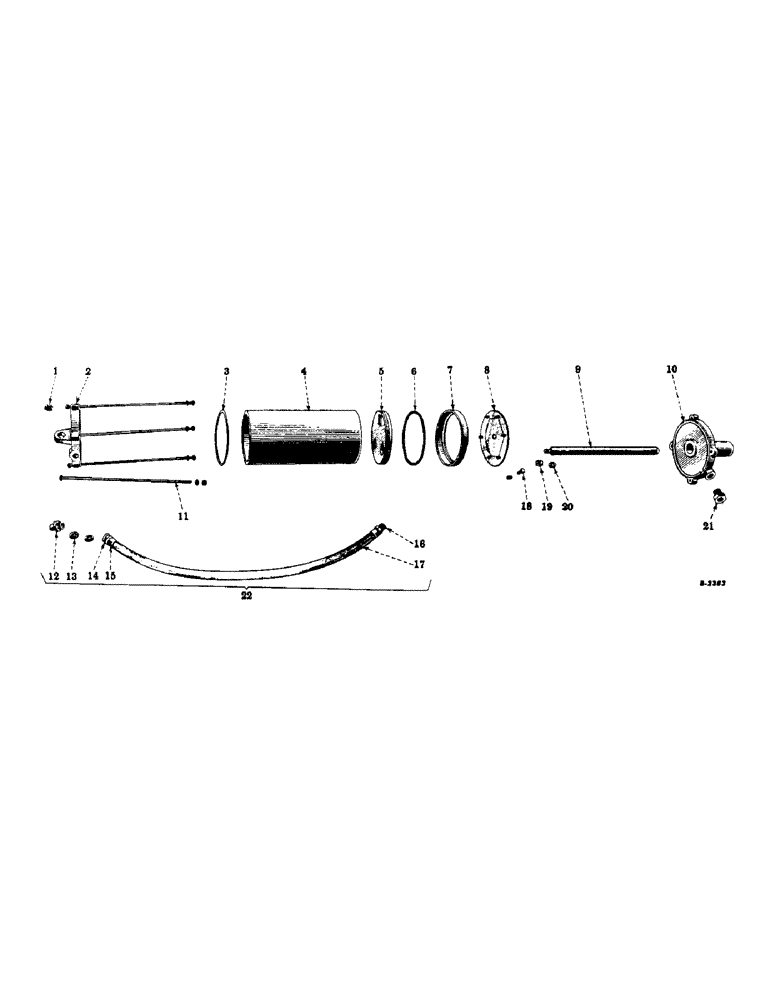

Схема запчастей Case IH FARMALL A - (145) - ATTACHMENTS, PNEUMATIC "LIFT-ALL" CYLINDER, 7 X 13-1/4 INCH Attachments
19
6
1
9
7
8
21
22
11
18
3
20
17
2
10
5
15
16
4
14
12
13

Артикул

Название

Примечание

Количество

15180EAX

CYLINDER, complete, 7 x 13-1/4"

1шт.

1

217-519

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, , Pipe Sq Hd, 1/2"-14 NPTF

2шт.

2

5050E

CYLINDER HEAD, rear

1шт.

3

15186E

CYLINDER HEAD GASKET

CYLINDER HEAD GASKET

1шт.

4

15181E

CYLINDER TUBE

1шт.

5

5051E

PISTON HEAD

1шт.

6

15185E

SPRING

PISTON CUP EXPANSION SPRING

1шт.

7

15184E

CUP

PISTON CUP

1шт.

8

15183E

PISTON DISK

1шт.

9

15182E

PISTON ROD

1шт.

10

5049E

CYLINDER HEAD, FRONT

1шт.

11

12876R

MACHINE BOLT, 5/16 x 16-7/8" (same as 494025R1)

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

9635082

NUT,5/16" - 18, Gr 5

4шт.

12

15193E

HOSE NIPPLE

1шт.

13

15192E

HOSE COUPLING WASHER

2шт.

14

15191E

HOSE HALF COUPLING

1шт.

15

15188E

HOSE CLAMP

2шт.

16

15189E

HOSE COUPLING INSERT

1шт.

17

15187E

CYLINDER HOSE

1шт.

18

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

6шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

19

25-118

NUT,1/2"-20, G5

HEXAGON NUT, 1/2"

1шт.

20

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

21

15245E

CYLINDER BRACE BUSHING

1шт.

22

15190EX

CYLINDER HOSE, complete with end fittings

1шт.

Выбрано товаров: 26
