Запчасти Case IH FARMALL A (144) - ATTACHMENTS, PNEUMATIC "LIFT-ALL" CONTROL VALVE HOUSING Attachments

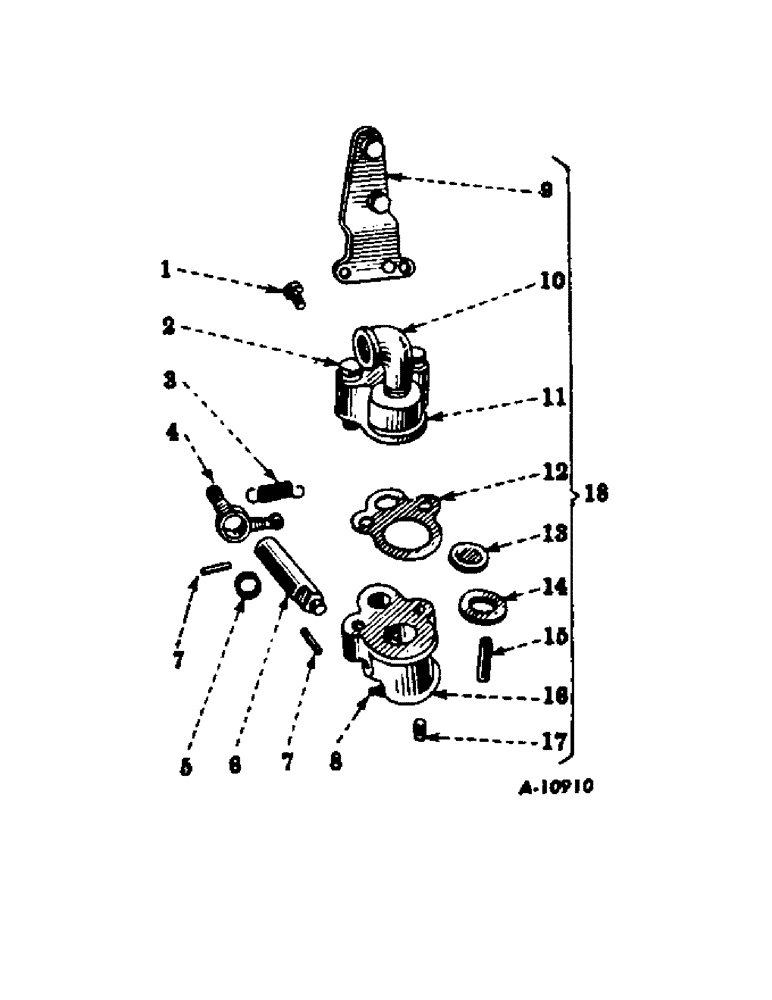

Схема запчастей Case IH FARMALL A - (144) - ATTACHMENTS, PNEUMATIC "LIFT-ALL" CONTROL VALVE HOUSING Attachments
3
7
15
17
8
14
5
1
9
4
18
12
16
13
2
10
6
11
7

Артикул

Название

Примечание

Количество

1

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

2

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

3

15219E

SPRING

CONTROL VALVE SPRING

1шт.

4

5055E

CONTROL VALVE LEVER

1шт.

5

15230E

CONTROL VALVE SHAFT SEAL

1шт.

6

15212E

CONTROL VALVE SHAFT

1шт.

7

27485H

GROOV PIN, 3/16 x 1"

2шт.

8

15239E

FITTING

LUBRICATING FITTING

2шт.

9

15216E

CONTROL, valve bracket

1шт.

10

108686

ELBOW,90 Degree, 1/2" NPT Street

STREET ELBOW, 1/2", 90 degrees

1шт.

11

5054E

CONTROL VALVE HOUSING COVER

1шт.

12

15217R

CONTROL VALVE HOUSING GASKET

1шт.

13

15213E

CONTROL VALVE DISC

1шт.

14

15214E

WASHER

CONTROL VALVE SEAT

1шт.

15

15215E

CONTROL VALVE PIN, 5/16 X 1-7/16"

1шт.

16

5053EA

CONTROL VALVE HOUSING

1шт.

17

103865

PIPE PLUG, 1/8"

2шт.

18

15238EX

CONTROL VALVE HOUSING, COMPLETE

1шт.

Выбрано товаров: 18
