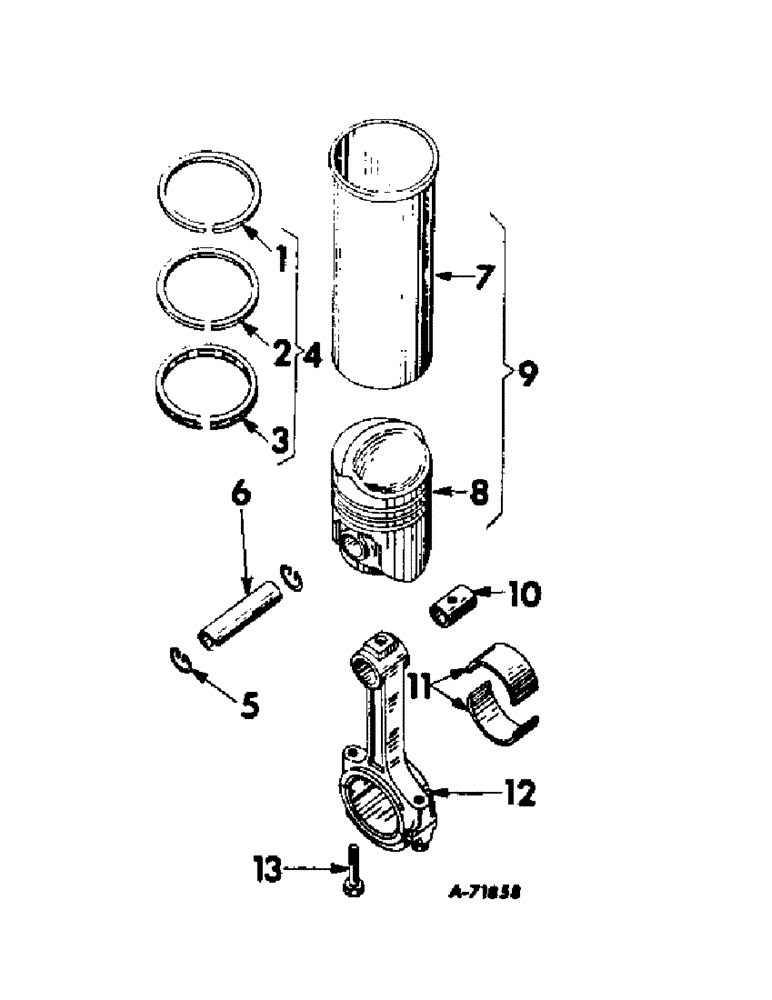

Запчасти Case IH 706 (C-07) - CARBURETED ENGINES, CONNECTING RODS ANS SLEEVE SETS, C-291 ENGINE (01) - ENGINE

1

395385R1

RING

compression piston, top or first groove

6шт.

2

395389R1

RING

compression piston, second groove

6шт.

3

395393R91

RING

oil piston, third or bottom groove

6шт.

4

395397R91

KIT

RING SET, piston, consists of twelve compression and six oil rings

1шт.

5

19517D

SPECIAL RING

RING, piston pin retainer

12шт.

6

278271R1

PISTON PIN

PIN, piston

6шт.

6

278326R1

PIN

piston, .005 oversize

6шт.

7

NSS

NOT SOLD SEPARAT

SLEEVE, cylinder, order sleeve, piston & rings assy, for proper fuel & altitude

6шт.

8

NSS

NOT SOLD SEPARAT

PISTON, order sleeve, piston & rings assy, for proper fuel and altitude

6шт.

9

395354R92

SET

SLEEVE ASSY, cylinder, for bore classification marking 1, See note, composed of (1) pin 278271R1, (1) piston 395365R1 (NSS), (2) ring 19517D, (1) ring 395385R1, (1) ring 395389R1, (1) ring 395393R91, (1) sleeve 395407R2 (NSS)

6шт.

9

395356R92

PISTON ASSY.

SLEEVE ASSY, cylinder, for bore classification markings 2 or 3, See note, composed of (1) pin 278271R1, (1) piston 395365R1, (NSS), (2) ring 19517D, (1) ring 395385R1, (1) ring 395389R1, (1) ring 395393R91, (1) sleeve 395408R2 (NSS)

6шт.

9

395363R92

SLEEVE CYLINDER

SLEEVE ASSY, cylinder, high altitude, for bore classification marking 1, See note, composed of (1) pin 278271R1, (1) piston 395370R1 (NSS), (2) ring 19517D, (1) ring 395385R1, (1) ring 395389R1, (1) ring 395393R91, (1) sleeve 395407R2 (NSS)

6шт.

9

395364R92

SLEEVE CYLINDER

SLEEVE ASSY, cylinder, high altitude, for bore classification markings 2 or 3, See note, composed of (1) pin 278271R1, (1) piston 395370R1 (NSS), (2) ring 19517D, (1) ring 395385R1, (1) ring 395389R1, (1) ring 395393R91, (1) sleeve 395408R2 (NSS)

6шт.

10

364913R1

BUSHING,21.84mm ID x 23.66mm OD x 33.2mm L

piston pin

6шт.

11

367408R11

BEARING ASSY,60.84mm ID x 64.01mm OD x 25.48mm W

BEARING ASSY, connecting rod, 2 halves, std

6шт.

11

367632R11

BEARING ASSY

BEARING ASSY, connecting rod, 2 halves, .002 U/S

6шт.

11

376666R11

BEARING ASSY

ASSY, connecting rod, 2 halves, .010 U/S

6шт.

11

376668R11

CONN. ROD SHELL

BEARING ASSY, connecting rod, 2 halves, .020 U/S

6шт.

11

367631R11

BEARING ASSY

ASSY, connecting rod, 2 halves, .030 U/S

6шт.

11

367630R91

BEARING SET, connecting rod, std, consists of six bearings, 367408R11

1шт.

11

377285R91

KIT

BEARING SET, connecting rod, .002 U/S, consists of six bearings, 367632R11

1шт.

11

376665R91

BEARING

SET, connecting rod, .010 U/S, consists of six bearings, 376666R11

1шт.

11

376667R91

KIT

BEARING SET, connecting rod, .020 U/S, consists of six bearings, 376668R11

1шт.

11

372443R91

KIT

BEARING SET, connecting rod, .030 U/S, consists of six bearings, 367631R11

1шт.

12

367406R21

ROD

W/TWO BOLTS, 316366R1 and rushing, 361913R1, connecting

6шт.

13

316366R1

BOLT,3/8" - 24 x 2"

connecting rod

12шт.
