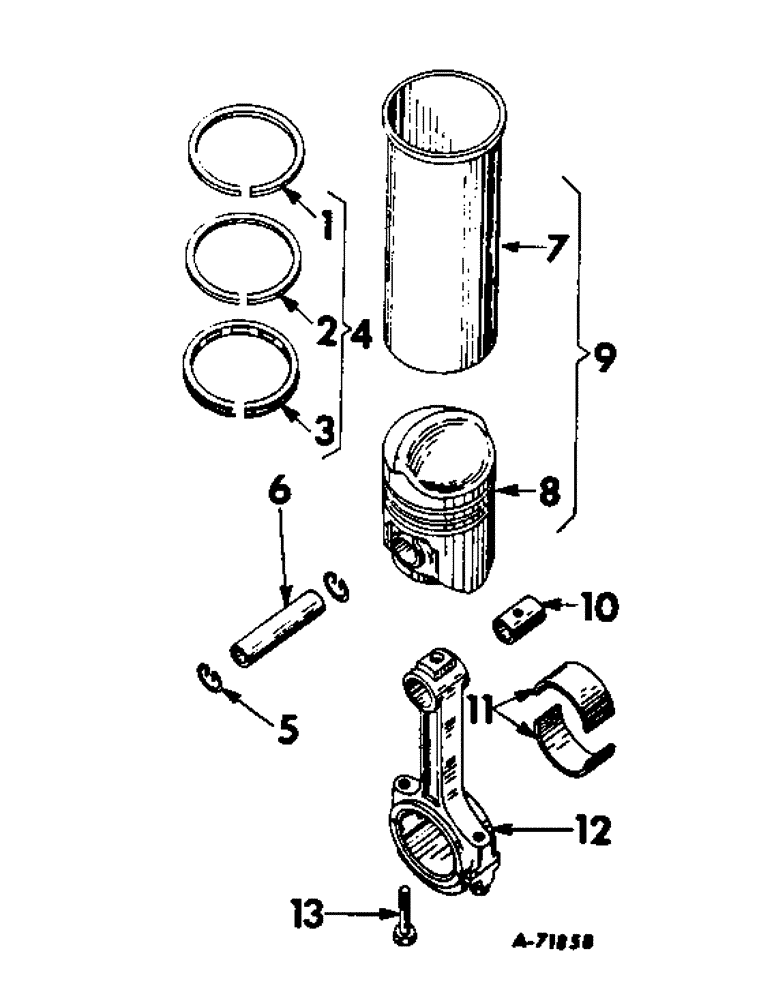

Запчасти Case IH 706 (C-06) - CARBURETED ENGINES, CONNECTING RODS AND SLEEVE SETS, C-263 ENGINE (01) - ENGINE

1

389747R1

RING

compression piston, top or first groove

6шт.

2

389751R1

RING

compression piston, second groove

6шт.

3

388355R91

RING, oil piston, third or bottom groove

6шт.

4

367649R92

RING SET, piston, consists of twelve compression and six oil rings

1шт.

5

19517D

SPECIAL RING

RING, piston pin retainer

12шт.

6

278271R1

PISTON PIN

PIN, piston

6шт.

6

278326R1

PIN

piston, .005 oversize

6шт.

7

NSS

NOT SOLD SEPARAT

SLEEVE, cylinder, order sleeve, piston & rings assy, for proper fuel & altitude

6шт.

8

NSS

NOT SOLD SEPARAT

PISTON, order sleeve, piston & rings assy, for proper fuel and altitude

6шт.

9

378603R95

PISTON ASSY.

SLEEVE SET, crankcase, consists of six sleeves, 378604R95, gasoline std altitude

1шт.

9

380648R95

PISTON ASSY.

SLEEVE SET, crankcase, consists of six sleeves, 380649R95, gasoline high altitude, or LP gas

1шт.

9

378604R95

PISTON ASSY.

SLEEVE ASSY, cylinder, gasoline std altitude, composed of (1) pin 278271R1, (1) piston 378605R5 (NSS), (2) ring 19517D, (1) ring 389747R1, (1) ring 389751R1, (1) ring 388355R91, (1) sleeve 367645R1 (NSS)

6шт.

9

380649R95

SLEEVE

ASSY, cylinder, gasoline high altitude or LP gas, composed of (1) pin 278271R1, (1) piston 379846R5 (NSS), (2) ring 19517D, (1) ring 389747R1, (1) ring 389751R1, (1) ring 388355R91, (1) sleeve 367645R1 (NSS)

6шт.

10

364913R1

BUSHING,21.84mm ID x 23.66mm OD x 33.2mm L

piston pin

6шт.

11

367408R11

BEARING ASSY,60.84mm ID x 64.01mm OD x 25.48mm W

BEARING ASSY, connecting rod, 2 halves, std.

6шт.

11

367632R11

BEARING ASSY

BEARING ASSY, connecting rod, 2 halves, .002 U/S

6шт.

11

376666R11

BEARING ASSY

ASSY, connecting rod, 2 halves, .010 U/S

6шт.

11

376668R11

CONN. ROD SHELL

BEARING ASSY, connecting rod, 2 halves, .020 U/S

6шт.

11

367631R11

BEARING ASSY

ASSY, connecting rod, 2 halves, .030 U/S

6шт.

11

367630R91

BEARING SET, connecting rod, std, consists of six bearings, 367408R11

1шт.

11

377285R91

KIT

BEARING SET, connecting rod, .002 U/S, consists of six bearings, 367632R11

1шт.

11

376665R91

BEARING

SET, connecting rod, .010 U/S, consists of six bearings, 376666R11

1шт.

11

376667R91

KIT

BEARING SET, connecting rod, .020 U/S, consists of six bearings, 376668R11

1шт.

11

372443R91

KIT

BEARING SET, connecting rod, .030 U/S, consists of six bearings, 367631R11

1шт.

12

367406R21

ROD

W/TWO BOLTS, 316366R1 and bushing, 364913R1, connecting

6шт.

13

316366R1

BOLT,3/8" - 24 x 2"

connecting rod

12шт.
