(L-12) - WHEELS AND WHEEL WEIGHTS, FRONT WHEEL WEIGHTS, FARMALL TRACTORS

Запчасти Case IH 706 (L-12) - WHEELS AND WHEEL WEIGHTS, FRONT WHEEL WEIGHTS, FARMALL TRACTORS Wheels & Wheel Weights

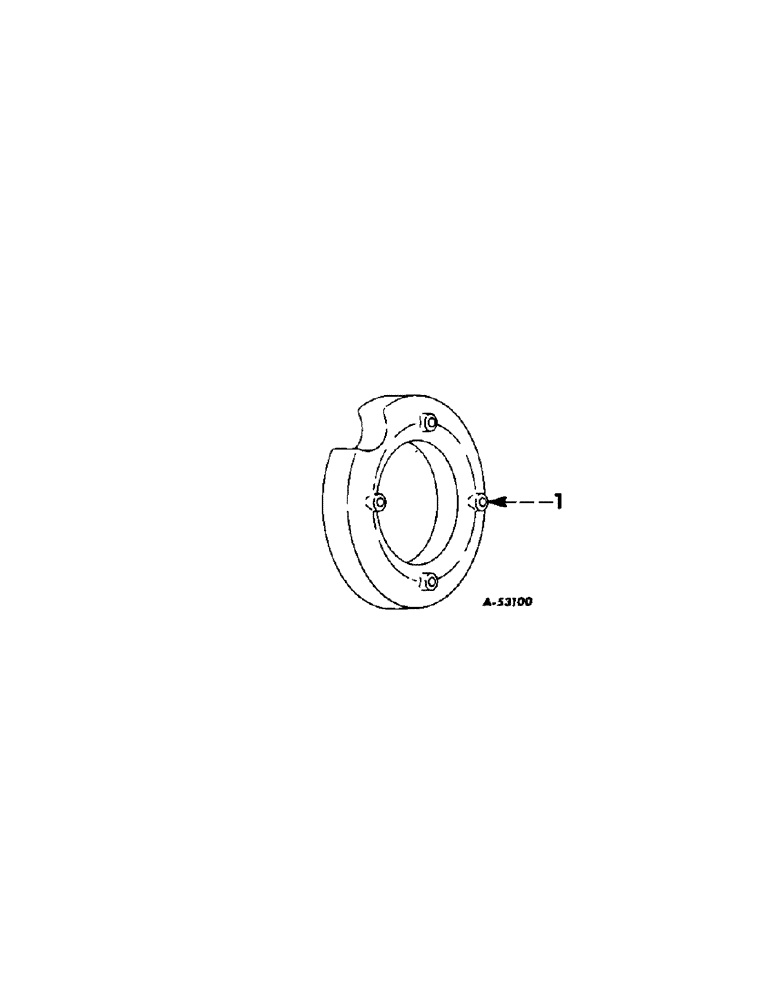

Схема запчастей Case IH 706 - (L-12) - WHEELS AND WHEEL WEIGHTS, FRONT WHEEL WEIGHTS, FARMALL TRACTORS Wheels & Wheel Weights
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

370685R1

WEIGHT

front wheel, approx 50 lbs., 2 for first set

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

180181

BOLT,Hex, 1/2" - 13 x 2", Gr 5

SCREW, 1/2-13 x 2 C-Z cap

4шт.

1

370685R1

WEIGHT

front wheel, approx 50 lbs., 2 for second set

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

180194

BOLT,Hex, 1/2" - 13 x 4", Gr 5

SCREW, 1/2-13 x 4 C-Z cap

4шт.
