Запчасти Case IH 706 (L-11[A]) - WHEELS AND WHEEL WEIGHTS, STEEL REAR WHEELS, EXTENSION TIRES & LUGS 54 INCH X 12 INCH Wheels & Wheel Weights

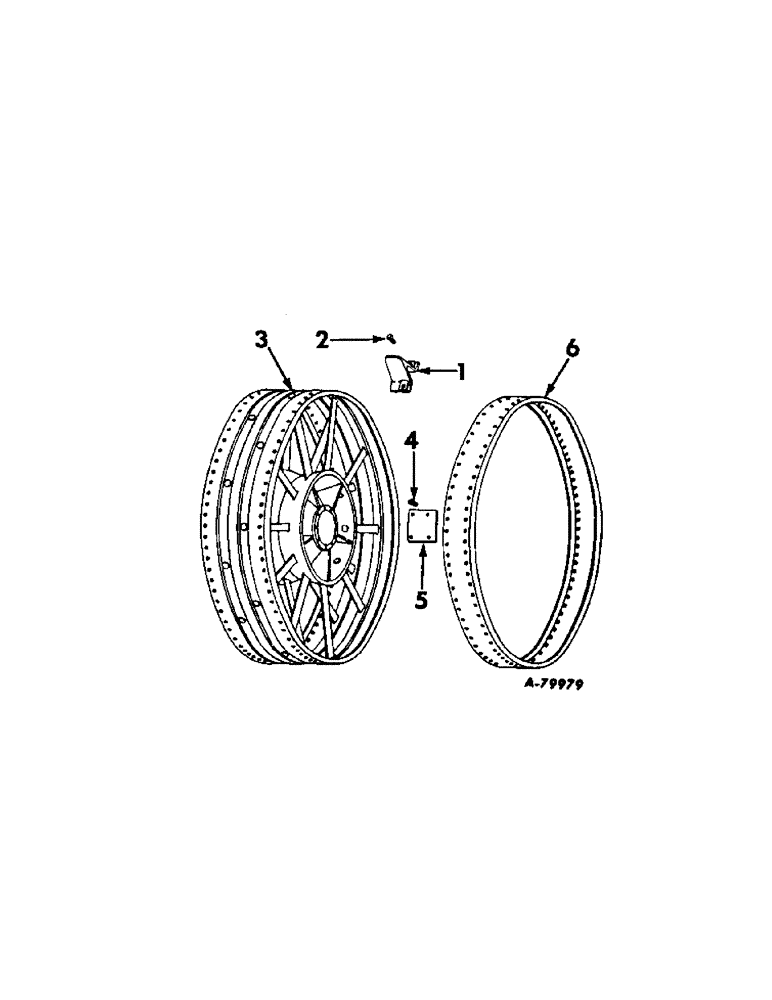

Схема запчастей Case IH 706 - (L-11[A]) - WHEELS AND WHEEL WEIGHTS, STEEL REAR WHEELS, EXTENSION TIRES & LUGS 54 INCH X 12 INCH Wheels & Wheel Weights
6
1
2
5
3
4

Артикул

Название

Примечание

Количество

NSS

NOT SOLD SEPARAT

SEVICE PARTS FOR STEEL WHEELS, consists of all parts marked unit A

1шт.

374376R91

PARTS ACCESSORY, extension, consists of all parts marked unit B, steel rear wheels

1шт.

374378R91

PARTS ACCESSORY, spade lug, consists of all parts marked unit C, steel rear wheels

1шт.

1

374380R1

LUG, spade, 6 in. high x 4 in. wide, 48 for unit C, steel rear wheels

1шт.

2

375092R1

BOLT, spade lug, 96 for unit C, steel rear wheels

1шт.

220081

NUT

3/4-10 hex, steel rear wheels

96шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, , Steel rear wheels 3/4"

96шт.

3

374385R91

WHEEL ASSY, rear, 2 for unit A, steel rear

1шт.

413-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

SCREW, 3/4-10 x 2-3/4 hex-hd. cap, steel rear wheels

20шт.

4

374377R1

BOLT, extension tire fasting plate, 32 for unit B, steel rear wheels

1шт.

413-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

3/4 x 2-3/4, NC, gr 5

20шт.

425-1012

NUT,3/4"-10, G5

3/4-10 hex, steel rear wheels

32шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, , Steel rear wheels 3/4"

32шт.

5

70046D

PLATE, rear wheel extension tire fastening, 16 for unit B, steel

1шт.

13332R1

BOLT, 3/4-10 x 1-3/4 hex-hd. mach, steel rear wheels

16шт.

220081

NUT

3/4-10 hex, steel rear wheels

16шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, , Steel rear wheels 3/4"

16шт.

6

70045DA

TIRE, rear wheel extension, 2 for unit B, steel

1шт.

Выбрано товаров: 18
