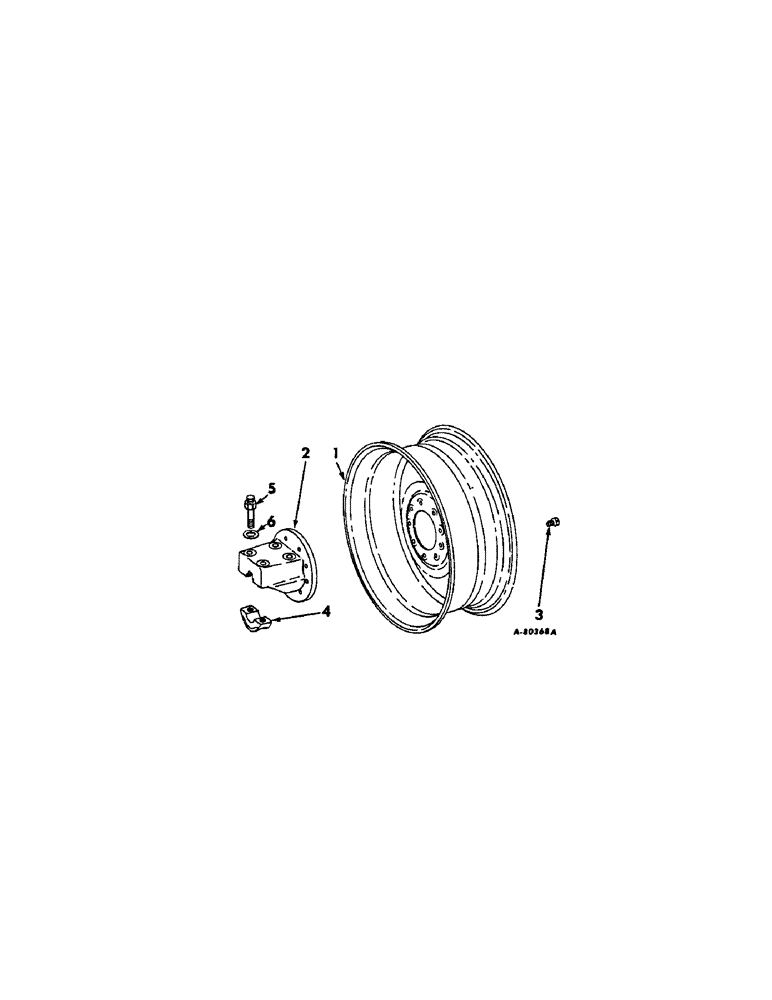

Запчасти Case IH 706 (L-09[A]) - WHEELS AND WHEELS WEIGHTS, OUTER DUAL REAR WHEELS, DISC TYPE Wheels & Wheel Weights

1

387923R92

RIM

WHEEL ASSY, disc type rear, W14L-38 rim for 15.5-38 tires

2шт.

1

387924R92

WHEEL

ASSY, disc type rear, W12-38 rim for 13.6-38 or 14.9-38 tires

2шт.

1

391057R93

WHEEL

ASSY, disc type rear, W15L-34 rim for 16.9-34 or 18.4-34 tire, offset to provide 110 in. tread

2шт.

1

392917R91

WHEEL

ASSY, disc type rear, W15L-34 rim for 16.9-34 or 18.4-34 tire, offset to provide 114 in. tread

2шт.

1

391006R91

WHEEL W/PLUG, 383697R1, disc type rear, W16L-30 rim for 18.4-30 tire, International tractors

2шт.

2

387925R1

HUB

outer dual rear wheel

2шт.

3

375110R1

BOLT,5/8" - 18 x 1 3/8"

rear wheel mounting

18шт.

3

391004R1

BOLT,Hex, 5/8"

BOLT, rear wheel mounting, used only with 30 inch wheel, 391006R91

18шт.

4

380863R2

COLLAR

CLAMP, rear wheel hub

4шт.

5

385784R11

STUD

STUD ASSY, rear wheel hub clamp

8шт.

6

384697R1

WASHER

rear wheel hub clamp stud

8шт.

373941R2

SOCKET WRENCH

WRENCH, 1-5/16 box

1шт.

389900R91

PARTS ACCESSORY, W12-38 outer dual rear wheel, see note, Farmall tractors, consists of (9) bolt 375110R1, (2) clamp 380863R2, (1) hub 387925R1, (4) stud assy 385784R11, (4) washer 384697R1, (1) wheel 387924R92

1шт.

389901R91

PARTS ACCESSORY, W14L-38 outer dual rear wheel, see note, Farmall tractors, consists of (9) bolt 375110R1, (2) clamp 380863R2, (1) hub 387925R1, (4) stud assy 385784R11, (4) washer 384697R1, (1) wheel 387923R92

1шт.

391058R91

PARTS ACCESSORY, W15L-34 outer dual rear wheel, offset to provide 110 in. tread, see note, consists of (9) bolt 375110R1, (2) clamp 380863R2, (1) hub 387925R1, (4) stud assy 385784R11, (4) washer 384697R1, (1) wheel 391057R93

2шт.

393182R91

PARTS ACCESSORY, W15L-34 outer dual rear wheel, offset to provide 114 in. tread, see note, consists of (9) bolt 375110R1, (2) clamp 380863R2, (1) hub 387925R1, (4) stud assy 385784R11, (4) washer 384697R1, (1) wheel 392917R91

2шт.

392706R91

PARTS ACCESSORY, DW16-30 outer dual rear wheel, see note, International tractors, consists of (9) bolt 391004R1, (2) clamp 380863R2, (1) hub 387925R1, (4) stud assy 385784R11, (4) washer 384697R1, (1) wheel 391006R91

1шт.
