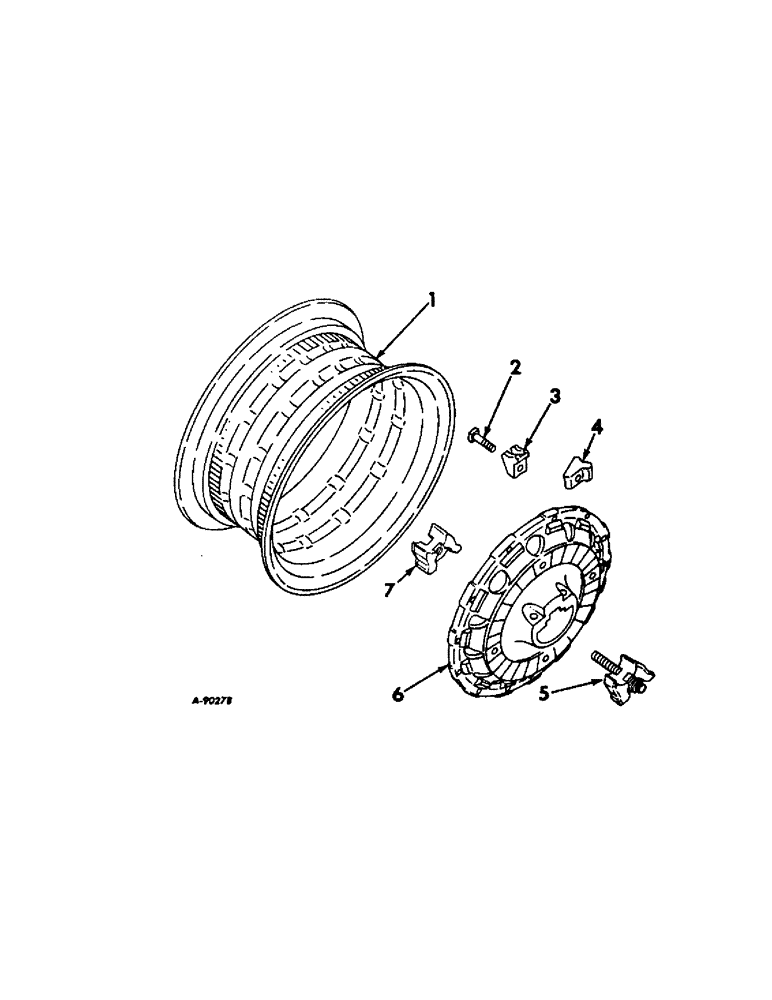

Запчасти Case IH 706 (L-07) - WHEELS AND WHEEL WEIGHTS, REAR WHEELS, WEDGE TYPE Wheels & Wheel Weights

1

380867R1

RIM

rear wheel W15L-34 rim for 16.9-34 tire

2шт.

1

380868R1

RIM

rear wheel W16L-34 rim for 18.4-34 tire

2шт.

1

392647R1

RIM

rear wheel WH14L-38 rim for 15.5-38 tire, Farmall tractors

2шт.

1

392032R1

RIM

rear wheel W15L-38 rim for 16.9-38 tire, Farmall tractors

2шт.

1

380865R1

RIM, rear wheel, W15L-30 rim for 16.9-30 tire, International tractors

2шт.

1

380866R1

RIM, rear wheel, W16L-30 rim for 18.4-30 tire, International tractors

2шт.

1

384069R91

RIM, rear wheel, DW20-34 rim for 23.1-34 tire w/clamps, except hi-clear tractors

2шт.

2

380877R1

BOLT,3/4" - 16 x 4 3/4"

rear wheel rim clamp, 24 for 34 in. wheels 20 for 30 in. wheels, except hi-clear tractors

1шт.

352536R1

NUT

rear wheel rim clamp bolt

1шт.

352536R1

NUT

WASHER, 3/4 med. lock

1шт.

2

403398R1

BOLT (SPREADER),Sq Hd, 3/4" - 16 x 3 1/4", Gr 5

BOLT, rear rear wheel rim clamp, 20 for 30 in. wheels

24шт.

352536R1

NUT

rear wheel rim clamp bolt

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

3

380870R1

CLAMP

rear wheel rim, 16 for 30 in. wheels

20шт.

4

397251R1

CLAMP

rear wheel rim, fixed

4шт.

5

397189R1

WEDGE

ASSY, wheel

2шт.

6

398545R1

WHEEL

34 in. rear

2шт.

6

397188R1

WHEEL

38 in. rear

8шт.

6

398544R1

WHEEL

30 in. rear, except hi-clear tractors

2шт.

7

397193R1

SPARE PART

WEDGE, wheel

2шт.

399649R2

TOOL, wheel remover

2шт.

401119R1

TOOL

WRENCH, wedge wheel socket

1шт.

401118R1

TOOL

SOCKET, 7/8

1шт.
