Запчасти Case IH 706 (L-07[A]) - WHEELS AND WHEEL WEIGHTS, REAR WHEELS, WEDGE TYPE Wheels & Wheel Weights

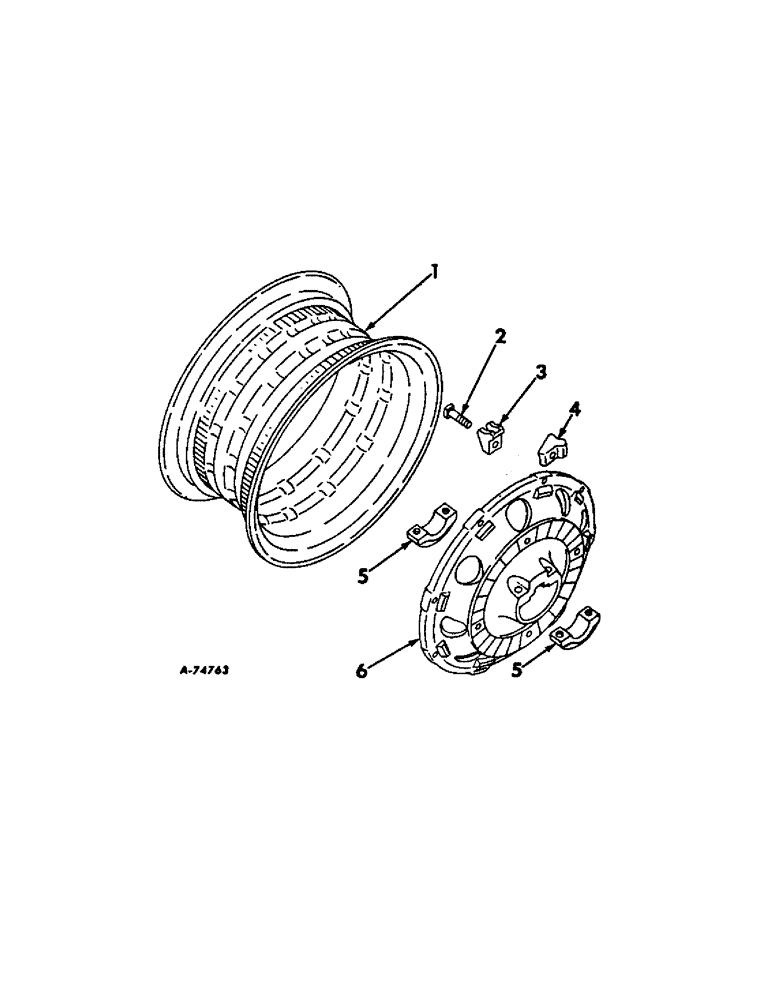

Схема запчастей Case IH 706 - (L-07[A]) - WHEELS AND WHEEL WEIGHTS, REAR WHEELS, WEDGE TYPE Wheels & Wheel Weights
2
4
3
6
1
5
5

Артикул

Название

Примечание

Количество

1

383691R1

RIM

rear wheel, WH12-38 rim for 14.9-38 tires

2шт.

1

380869R1

RIM

rear wheel, WH14L-38 for 15/5-38 tires

2шт.

2

380878R1

BOLT (SPREADER),Sq Hd, 3/4" - 16 x 2 3/4"

BOLT, rear wheel rim clamp

16шт.

352536R1

NUT

rear wheel rim clamp

16шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

16шт.

3

380870R1

CLAMP

rear wheel rim

12шт.

4

380871R1

CLAMP

rear wheel rim, fixed

4шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

5

380863R2

COLLAR

CLAMP, rear wheel hub

4шт.

385784R11

STUD

STUD W/NUT ASSY, rear wheel hub clamp

8шт.

384697R1

WASHER

hub clamp stud

8шт.

6

382967R1

WEIGHT

WHEEL, 38 in. rear

2шт.

Выбрано товаров: 12
