Запчасти Case IH 706 (L-03) - WHEELS AND WHEEL WEIGHTS, SINGLE FRONT WHEEL, FARMALL TRACTORS EXCEPT HI-CLEAR Wheels & Wheel Weights

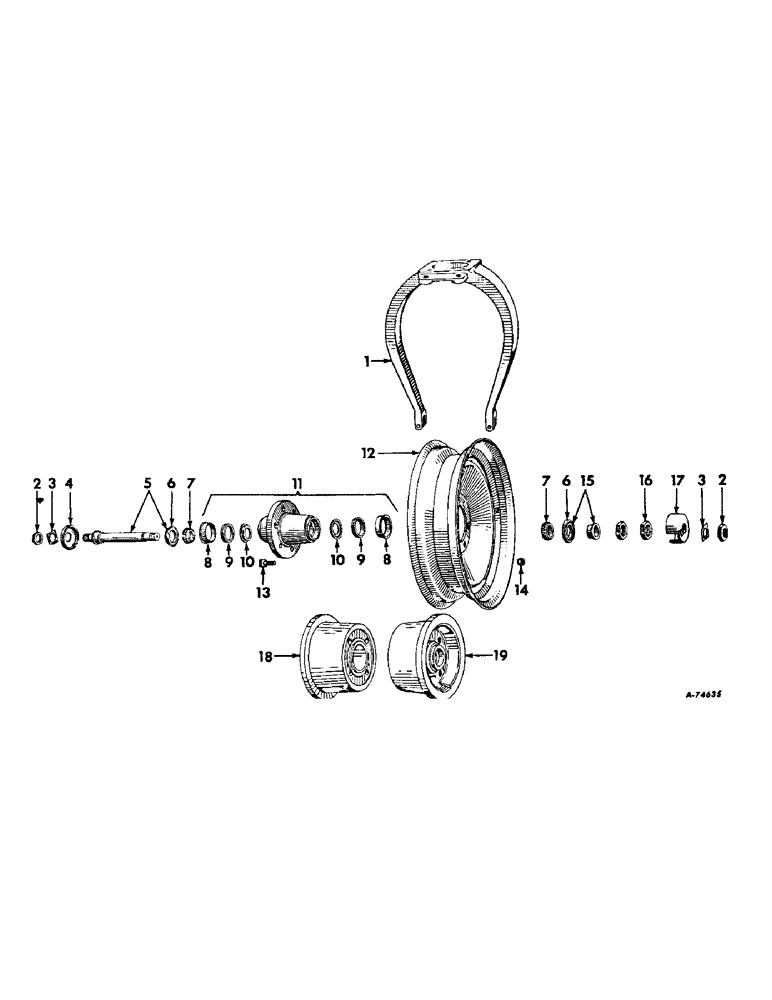

Схема запчастей Case IH 706 - (L-03) - WHEELS AND WHEEL WEIGHTS, SINGLE FRONT WHEEL, FARMALL TRACTORS EXCEPT HI-CLEAR Wheels & Wheel Weights
2
8
10
3
18
7
4
9
2
17
11
16
14
7
6
5
12
13
10
15
3
12
9
19
6
8

Артикул

Название

Примечание

Количество

370648R91

PARTS ACCESSORY, single front wheel, for 7.50 x 16 tire, consists of all unmarked parts and those marked unit A

1шт.

370649R92

WHEEL

PARTS ACCESSORY, single front wheel, for 9.00 x 10 tire, consists of all unmarked parts and those marked unit B

1шт.

NSS

NOT SOLD SEPARAT

SERVICE PARTS FOR SINGLE FRONT WHEEL, for 7.50 x 15 tire, consists of all unmarked parts and those marked unit C

1шт.

NSS

NOT SOLD SEPARAT

SERVICE PARTS FOR SINGLE FRONT WHEEL, for 7.50 x 16 tire, consists of all unmarked parts and those marked unit D

1шт.

1

8298DD

FORK, front bolster

1шт.

102637

NUT,1/2"-13, G5

2шт.

179895

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5

SCREW, 1/2-13 x 3-1/2 hex-hd. cap

2шт.

NLS

NO LONGER SERVICED

SCREW, 3/4-10 x 1-1/2 hex-hd. cap

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

2

425-1520

JAM NUT,Jam, 1 1/4"-12, G5

1-1/4-12 hex, jam

2шт.

3

38916D

LOCK WASHER

front axle nut lock

2шт.

4

351419R11

PROTECTOR

SHIELD ASSY, front wheel hub short

1шт.

5

351417R11

AXLE ASSY, front wheel

1шт.

6

48539DA

PACKING RING

SEAL, front wheel oil

2шт.

7

ST2049

TAPERED BEARING,1.3755" ID x 2.718" OD x 0.7953"

BEARING ASSY, front wheel cone

2шт.

8

48548D

WASHER

front wheel oil seal

2шт.

9

ST974

TAPERED BEARING,1.313" ID x 2.718" OD x 0.7953"

BEARING, front wheel cup

2шт.

10

60288DA

BEARING CAP,1.4375" ID x 2.7125" OD x 0.40625"

front wheel bearing grease, units A, B and C

1шт.

11

351398R21

HUB ASSY, front wheel, units A, C & D

1шт.

12

354195R92

WHEEL

ASSY, front, 5.50F x 16 DC rim for 7.50-16 tire, units A and D

1шт.

12

395924R91

WHEEL ASSY, front, 5.50F x 15 DC rim for 7.50-15 tire, Unit C

1шт.

13

358134R1

BOLT (MACHINE),9/16" - 18 x 1 3/4"

BOLT, front wheel mounting, units A, B and C

6шт.

14

351793R1

WHEEL NUT

NUT, front wheel mounting, units A, B and C

6шт.

15

351416R11

SPACER ASSY, front wheel bearing

1шт.

16

351418R1

BEARING LOCK NUT

front wheel bearing adjusting

2шт.

17

351420R11

PROTECTOR

SHIELD ASSY, front wheel hub long

1шт.

18

383790R11

WHEEL W/CUP, st 974 and retainer, 48548D, front, male half, unit B

1шт.

102639

NUT,5/8"-11, G5

4шт.

17184R1

SCREW,Hex, 5/8" - 11 x 7"

5/8-11 x 7 hex-hd. cap

4шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

19

383791R11

WHEEL W/CUP, st 974 and retainer, 48548D, front, female half, unit B

1шт.

Выбрано товаров: 32
