Запчасти Case IH 706 (L-02) - WHEELS AND WHEEL WEIGHTS, FRONT WHEELS Wheels & Wheel Weights

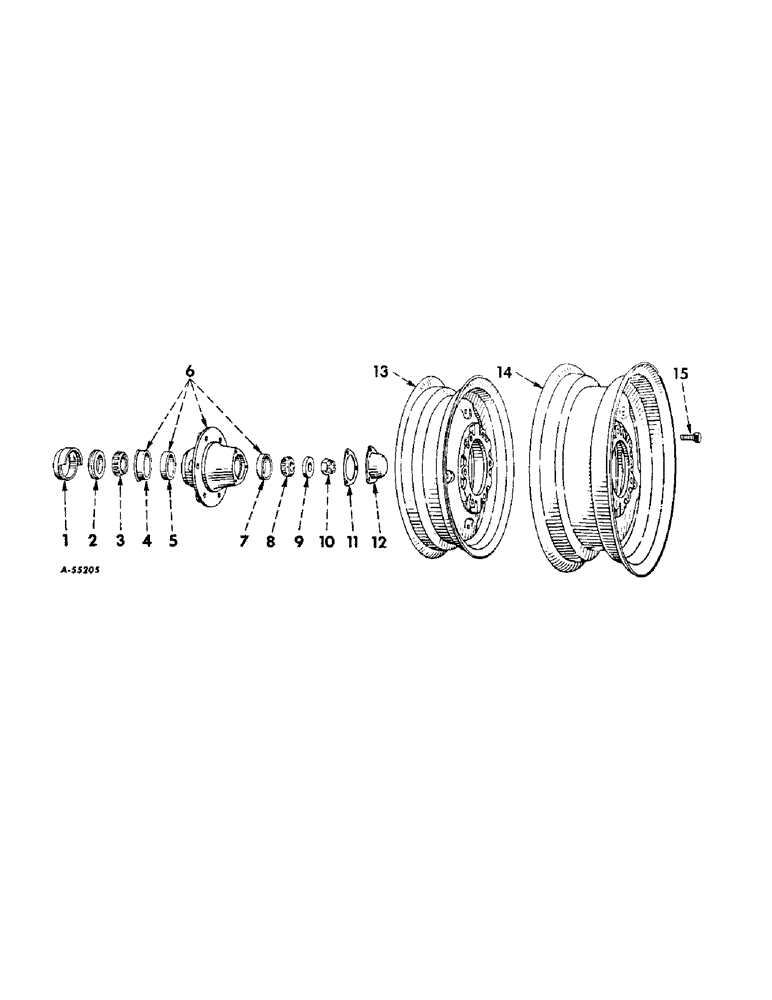

Схема запчастей Case IH 706 - (L-02) - WHEELS AND WHEEL WEIGHTS, FRONT WHEELS Wheels & Wheel Weights
9
6
7
10
4
14
15
5
13
11
3
8
12
1
2

Артикул

Название

Примечание

Количество

1

48701D

SHIELD

front wheel dust

2шт.

2

370254R91

OIL SEAL,57.02mm ID x 82.55mm OD x 6.86mm Thk

front wheel oil

2шт.

3

G15215

ROLLER BEARING

BEARING ASSY, front wheel inner cone

2шт.

4

48703D

RETAINER

front wheel oil seal

2шт.

5

619387R1

BEARING CUP

BEARING, front wheel inner cup

2шт.

6

391823R11

HUB

ASSY, front wheel, also order fitting, 443566, Farmall tractors except those equipped w/adjustable wide front axle having 50 to 74 inch tread

2шт.

6

391823R11GV

HUB

Value, Hub Assy.

1шт.

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16 str. drive type lub.

2шт.

6

391824R11

HUB ASSY.

HUB ASSY, front wheel, also order fitting, 19700R91, all international tractors and Farmall tractors w/adjustable wide front axle having 50 to 74 inch tread

2шт.

19700R91

FITTING

3/16 45 deg. angle drive type lub.

2шт.

7

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Front wheel outer

2шт.

8

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

BEARING ASSY, front wheel outer cone

2шт.

9

370255R2

WASHER,22.63mm ID x 47.75mm OD x 4.18mm Thk

front wheel outer bearing retainer

2шт.

10

427645

SLOTTED NUT,7/8"-14, G5

NUT, front wheel

2шт.

108643

COTTER PIN,5/32" x 1 3/8"

Pin, Split (Cotter), 5/32" x 1 3/8"

2шт.

11

369860R1

GASKET,0.79mm Thk

front wheel hub cap

2шт.

12

369859R1

CAP

front wheel hub

2шт.

21533R1

BOLT

SCREW, 5/16-18 x 5/8 CDP hex-hd. cap

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

13

370777R92

RIM

WHEEL ASSY, front, disc type 4.25KA-16DC rim for 6.00-16 or 6.50-16 tire, all Farmall tractors except hi-clear

2шт.

13

371735R3

WHEEL

ASSY, front, disc type 6LB-15DC rim for 7.50 L-15 tire, all Farmall tractors except hi-clear

2шт.

13

389988R91

WHEEL

ASSY, front, disc type WH8L-16 rim for 10.00-16 tire, International tractors & Farmall tractors with adj. wide tread front axle

2шт.

13

383906R91

WHEEL

ASSY, front, disc type WH10L-16, 11.00-16 tire, Farmall tractors w/serial no. 37236 and below, having adj wide tread front axle

1шт.

13

400573R1

WHEEL

ASSY, front, disc type 5.50F x 19 DC int rim for 7.50-18 tire, Farmall tractors

1шт.

13

400519R1

WHEEL ASSY, front, disc type W7L-20 rim for 9.50-20 tire, Farmall tractors w/adjustable wide tread front axle

2шт.

14

370778R91

WHEEL ASSY, front, disc type, 4.50E-20DC rim for 6.00-20 tire, all Farmall hi-clear tractors

2шт.

14

370779R91

WHEEL

ASSY, front, disc type, 5.50F-20DC rim for 7.50-20 tire, all Farmall hi-clear tractors

2шт.

14

383905R91

WHEEL ASSY, front, disc type 5.50F-20DC rim for 7.50-20 tire, all International tractors

2шт.

14

383907R91

WHEEL ASSY, front, disc type 5.50F-18DC rim for 6.50-18 or 7.50-18 tire, all International tractors

2шт.

15

51485D

BOLT,9/16" - 18 x 1 7/32"

front wheel mounting, Farmall tractors except hi-clear

12шт.

15

382966R1

BOLT (SPREADER),Hex Csk, 9/16" - 18 x 1.47"

BOLT, front wheel mounting, Farmall hi-clear tractors

12шт.

15

51485D

BOLT,9/16" - 18 x 1 7/32"

front wheel mounting, International tractors

16шт.

15

393363R1

BOLT,Hex, 9/16" - 18 x 1.22"

front wheel mounting, for Farmall and International tractors with WH8L-16 wheel and 10.00-16 or 11.00-16 tire

16шт.

371418R91

PACKAGE

front wheel bearing overhaul, consists of (1) cone 618023R91, (1) cone 619386R91, (1) cup 618024R1, (1) cup 619387R1, (1) gasket 369860R1, (1) oil seal 370254R91, (1) retainer 48703D

1шт.

364343R92

WHEEL

Rim for the 7.50 x 16" Tire

1шт.

Выбрано товаров: 35
