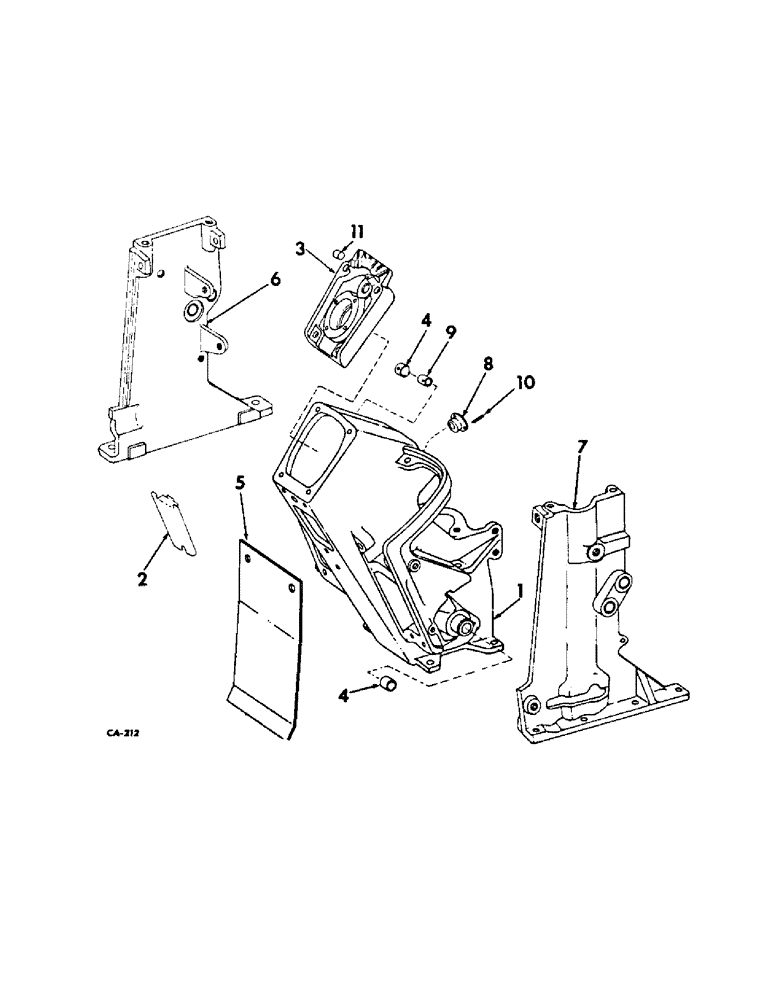

Запчасти Case IH 706 (J-19) - STEERING MECHANISM, STEERING GEAR AND SELECTOR SUPPORT Steering Mechanism

1

402995R91

SUPPORT ASSY, steering & gear selector, will work for 382636R12, consists of Ref. nos. 4 and 8 thru 10

1шт.

2

384429R1

COVER, steering support rear opening, carbureted engine tractors

1шт.

181561

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

SCREW, 1/4-28 x 1/2 C-Z hex-hd. cap

1шт.

354825R1

WASHER

steering support per opening cover

1шт.

3

398276R1

COVER, steering & gear selector support, will work for 382639R1

1шт.

21327R1

SCREW

5/16-18 x 1-1/4 C-Z hex-soc hd. cap

4шт.

4

382638R2

BUSHING,19.07mm ID x 22.24mm OD x 19.05mm L

range transmission selector cross shaft

2шт.

5

382747R1

COVER, gear selector support

1шт.

386858R1

SCREW,Hex Wshr Hd, 3/8" - 16 x 0.75"

3/8-16 x 3/4 C-Z washer-hd.

1шт.

6

382741R1

SUPPORT, gear selector left

1шт.

1017960R1

PLUG,Cap, .848" OD

gear selector support

4шт.

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

4шт.

7

382744R1

SUPPORT, gear selector right

1шт.

1017960R1

PLUG,Cap, .848" OD

gear selector support

4шт.

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

3шт.

186282

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

SCREW, 3/8-16 x 3-1/4 hex-hd. cap

1шт.

8

398283R1

INSERT, governor control rod

1шт.

9

382637R2

BUSHING

SLEEVE, range shift handle

1шт.

10

19955R1

PIN,1/4" x 1/2", Coiled

1шт.

11

385528R1

PIN

3/16 x 1/2 C-Z dowel

1шт.
