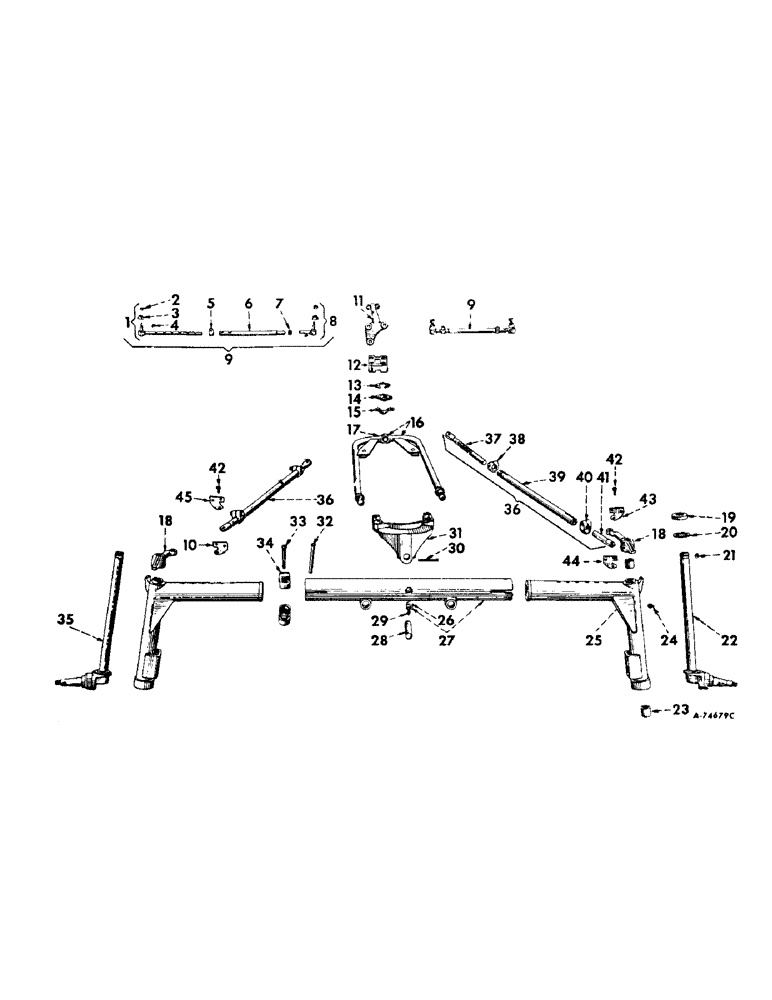

Запчасти Case IH 706 (J-14) - STEERING MECHANISM, ADJUSTABLE FRONT AXLE AND CONNECTIONS, FARMALL HI-CLEAR TRACTORS Steering Mechanism

1

359984R91

ROD

ASSY, tie, LH

2шт.

2

359983R1

NUT

tie rod, optional with 374701R1

1шт.

2

374701R1

NUT

tie rod, optional with 359983R1

1шт.

108643

COTTER PIN,5/32" x 1 3/8"

Pin, Split (Cotter), 5/32" x 1 3/8"

4шт.

3

387280R1

SEAL

COVER, dust

4шт.

4

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

4шт.

5

359986R1

CLAMP

tie rod, adj end

2шт.

25-118

NUT,1/2"-20, G5

1/2-20 hex

2шт.

181435

BOLT,Hex, 1/2" - 20 x 2", Gr 5

SCREW, 1/2-20 x 2 hex-hd. cap

2шт.

6

383917R1

TUBE

tie rod

2шт.

7

374062R1

JAM NUT

NUT, jam

2шт.

8

384006R91

END

ROD ASSY, tie, RH thread

2шт.

9

383915R91

ROD

ASSY, tie

2шт.

10

382384R1

SUPPORT

BRACKET, auxiliary stay rod front lower RH

1шт.

11

358970R1

ARM

steering gear

2шт.

NLS

NO LONGER SERVICED

SCREW, 3/4-10 x 1-1/2 hex-hd. cap

3шт.

12

382375R1

SOCKET

stay rod ball

1шт.

13-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

SCREW, 5/8-11 x 3-1/4 hex-hd. cap

2шт.

271573

BRACKET

SCREW, 5/8-11 x 4-3/4 hex-hd. cap

2шт.

13

379954R1

SHIM

stay rod ball socket cap

1шт.

14

379953R1

CAP

stay rod ball socket

1шт.

15

380008R1

PLATE ASSY.

PLATE, stay rod ball socket cap lock

1шт.

16

382379R91

ROD ASSY, stay, serial no. 37236 and below

1шт.

16

382870R1

ROD ASSY, stay, serial no. 37237 and above

1шт.

427546

JAM NUT,Jam, 1 3/8"-12, G5

1-3/8-12 hex, jam

2шт.

17

10546D

BALL

stay rod

1шт.

18

383914R1

ARM

steering knuckle

2шт.

425-1110

NUT,5/8"-18, G5

2шт.

114-614

BOLT,Hex, 5/8" - 18 x 3", Gr 5

SCREW, 5/8-18 x 3 C-Z hex-hd. cap

2шт.

19

369131R91

THRUST BEARING

steering knuckle pivot thrust

1шт.

20

15943DA

SEALING WASHER,60.33mm ID x 72.23mm OD x 4.76mm Thk

Steering knuckle pivot felt

2шт.

21

40093D

WOODRUFF KEY,#127, 1/4" x 2 1/8", HT

KEY, 1/4 x 2-1/8 woodruff 127, steering knuckle arm

2шт.

22

384258R92

STEERING KNUCKLE

KNUCKLE ASSY, steering RH

1шт.

108643

COTTER PIN,5/32" x 1 3/8"

Pin, Split (Cotter), 5/32" x 1 3/8"

1шт.

23

358958R2

BUSHING,42.57mm ID x 46.08mm OD x 51.05mm L

steering knuckle pivot pin

4шт.

24

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16 drive type str. lub.

2шт.

25

370719R31

EXTENSION

w/two bushings, 48841D, front axle

2шт.

26

48841D

BUSHING,31.03mm ID x 34.62mm OD x 31.75mm L

front axle pivot pin

2шт.

27

358976R31

CENTER AXLE

AXLE ASSY, front

1шт.

28

358978R2

AXLE PIN,31.29mm OD x 217.49mm L

PIN, front axle pivot

1шт.

29

17049R91

LUBE NIPPLE,67.5 Degree, 1/8"-27 NPT x 1.03" lg, Leakproof

FITTING, 1/8-27 PTF 67-1/2 deg. lub.

1шт.

30

Q3537

HEADED PIN,3/8" x 4 1/8"

PIN, 3/8 x 4-1/8 headed, front axle pivot pin locking, used with bolster, 383909R3

1шт.

30

21105R1

HEADED PIN,9.53mm OD x 123.83mm L

PIN, 3/8 x 4-7/8 headed, front axle pivot pin locking, used with bolster, 383909R4

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

31

383909R4

BOLSTER

lower

1шт.

271613

SCREW,Hex, 3/4" - 10 x 2 1/2", Gr 5

3/4-10 x 2-1/2 hex-hd. cap

4шт.

32

350557R1

PIN

front axle clamp

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

33

20673R1

BOLT,Hex, 3/4" - 16 x 4 1/4", Gr 8

front axle clamp

4шт.

218197

NUT,3/4"-16, G5

3/4-16 hex

4шт.

366112R1

WASHER

25/32 x 1-1/4 x 11 ga. C-Z

4шт.

34

350556R1

CLAMP

front axle

4шт.

35

384257R92

STEERING KNUCKLE

KNUCKLE ASSY, steering LH

1шт.

108643

COTTER PIN,5/32" x 1 3/8"

Pin, Split (Cotter), 5/32" x 1 3/8"

1шт.

36

382380R91

ROD ASSY, auxiliary stay, serial no. 37236 and below

2шт.

36

382871R91

ROD ASSY, auxiliary stay, serial no. 37237 and above

2шт.

37

382378R1

END

auxiliary stay rod adjustable

2шт.

218197

NUT,3/4"-16, G5

3/4-16 hex

2шт.

271636

SEAL KIT

SCREW, 3/4-16 x 2-1/2 hex-hd. cap

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

38

359003R1

CLAMP

auxiliary stay rod adj end

2шт.

425-1110

NUT,5/8"-18, G5

2шт.

271591

BOLT,Hex, 5/8" - 18 x 3", Gr 5

SCREW, 5/8-18 x 3 hex-hd. cap

2шт.

114609

LOCK WASHER,Ext Tooth, 5/8"

WASHER, LOCK, Ext Tooth, 5/8"

2шт.

39

382377R1

TUBE, auxiliary stay rod, serial no. 37236 and below 1.25" ID, 1.635" OD, 37.8" Length

2шт.

39

382872R1

TUBE,1.25" ID, 1.635" OD, 40.9" Length

auxiliary stay rod, serial no. 37237 and above

2шт.

40

359004R1

CLAMP

auxiliary stay rod adj end

2шт.

425-1110

NUT,5/8"-18, G5

2шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-18 x 3 hex-hd. cap

2шт.

114609

LOCK WASHER,Ext Tooth, 5/8"

WASHER, LOCK, Ext Tooth, 5/8"

2шт.

41

382376R1

BOLT

END, auxiliary stay rod threaded

2шт.

218197

NUT,3/4"-16, G5

3/4-16 hex

2шт.

271636

SEAL KIT

SCREW, 3/4-16 x 2-1/2 hex-hd. cap

2шт.

42

359006R1

BOLT

BOLT, auxiliary stay rod bracket mounting

8шт.

25-118

NUT,1/2"-20, G5

1/2-20 hex

8шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

43

382381R1

SUPPORT

BRACKET, auxiliary stay rod front upper LH

1шт.

44

382383R1

SUPPORT

BRACKET, auxiliary stay rod front lower LH

1шт.

45

382382R1

BRACKET

auxiliary stay rod front upper RH

1шт.

193-12

LOCK WASHER,Ext Tooth, 0.52" ID x 0.89" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 1/2"

2шт.
