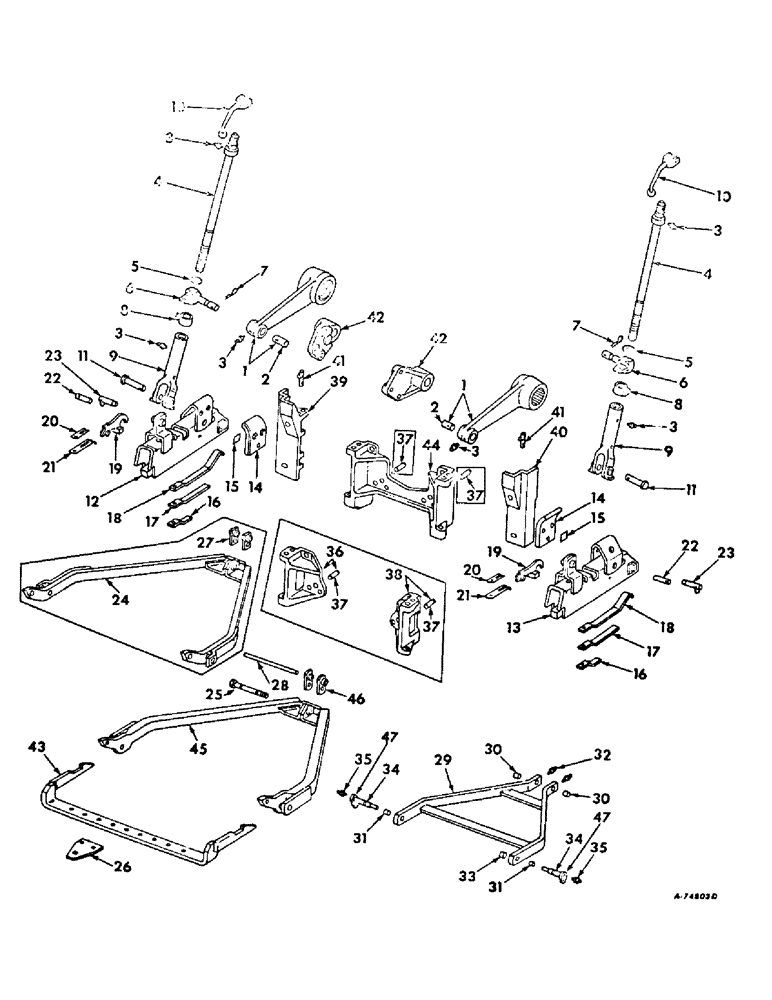

Запчасти Case IH 706 (K-06) - DRAWBARS AND HITCHES Drawbars & Hitches

NSS

NOT SOLD SEPARAT

ATTACHMENT, two point fast hitch, tractors with draft control and draft sensing unit, 389256R92

1шт.

1

382156R11

ARM

ASSY, rockshaft

2шт.

2

383357R1

BUSHING,28.56mm ID x 33.38mm OD x 63.5mm L

rockshaft arm

2шт.

3

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING, 1/4 drive type str. lub.

6шт.

4

383449R11

SCREW

ASSY, leveling, 24.98 in. long, order two screws, 386097R11

2шт.

4

386097R11

ADJUSTMENT SCREW,1" - 5 x 24.48" L, w/ Collar

SCREW ASSY, leveling, 24.48 in. long

2шт.

617057R1

PIN,1/4" x 1", Coiled

2шт.

5

382168R2

WASHER

pivot

2шт.

6

383990R2

PIVOT ASSY.

PIVOT, leveling screw

2шт.

Q3482

WASHER

1-5/32 x 1-3/4 x 11 ga.

2шт.

7

520175R1

CLIP

PIN, quick attachable cotter, leveling screw pivot

2шт.

8

383982R1

COLLAR

COLLAR, vertical float lock

2шт.

113020

SET SCREW,Sq Hd, 5/8"-11 x 1"

SCREW, 5/8 x 1 cone-pt sq-hd. set

2шт.

9

395142R1

YOKE

leveling screw, will work for 383988R2

2шт.

10

523861R2

HANDLE

HANDLE, leveling screw

2шт.

617939R1

PIN,5/16" x 1 1/2", Coiled

5/16" x 1-1/2", coiled

2шт.

11

383991R1

PIN,Headed, 7/8" x 3 3/8", Drilled

leveling screw yoke

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

12

383452R91

SOCKET ASSY, LH beam

1шт.

13

383458R91

SOCKET

ASSY, RH beam

1шт.

14

383459R1

PLATE, rub, used only with block, 383490R1 or 383491R1

2шт.

14

385727R1

SHOE, rub

2шт.

181427

BOLT,Hex, 1/2" - 20 x 1", Gr 5

SCREW, 1/2-20 x 1 hex-hd. cap

4шт.

14-1256

BOLT,Hex, 3/4" - 16 x 3-1/2", Gr 5

SCREW, 3/4-16 x 3-1/2 hex-hd. cap

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

15

383460R1

SHIM, rub plate, (or as required)

4шт.

16

522834R1

VALVE SPRING

SPRING, beam socket leaf, short

2шт.

17

522835R1

SPRING

beam socket leaf, med

2шт.

18

522836R1

SPRING

beam socket leaf, long

2шт.

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

SCREW, 1/2-13 x 1-3/4 hex-hd. cap

2шт.

19

393500R1

LATCH ASSY.

LATCH, beam coupling

2шт.

20

522839R1

VALVE SPRING

SPRING, latch

2шт.

21

522840R2

VALVE SPRING

SPRING, latch auxiliary

2шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

2шт.

22

383461R11

PIVOT PIN

PIN ASSY, beam socket pivot

2шт.

616254R1

LOCK PIN,3/8" x 1 5/8", Slotted

PIN, 3/8" x 1 5/8", Slotted

2шт.

23

522841R11

PIN

ASSY, quick attachable

2шт.

24

383463R91

BAIL ASSEMBLY, hitch, Farmall tractors 501 to 19249, International tractors, Serial Range: 501-2999

1шт.

24

386429R91

BAIL ASSEMBLY, hitch, heavy duty, Farmall tractors 501 to 19249, International tractors, Serial Range: 501-2999

1шт.

25

383472R1

BOLT,Hex, 7/8" - 14 x 6.45", Drilled

bail pivot, Farmall tractors 501 to 19249, International tractors, Serial Range: 501-2999

1шт.

427645

SLOTTED NUT,7/8"-14, G5

NUT, 7/8-14 slt hex

1шт.

103388

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

1шт.

25

389059R1

BOLT,Hex, 1" - 14 x 6.53", Drilled

bail pivot, Farmall tractors 19250 up, International tractors 3000 up

1шт.

427651

SLOTTED NUT,1"-14, G5

NUT, 1-14 slt hex

1шт.

103388

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

1шт.

26

383656R1

PLATE, drawbar extension, tractors with independent PTO

1шт.

425-1012

NUT,3/4"-10, G5

3/4-10 hex

2шт.

383065R1

BOLT,Hex, 3/4" - 10 x 3"

SCREW, 3/4-10 x 3 hex-hd. cap

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

27

383473R11

STRAP ASSY, bail pivot, Farmall tractors 501 to 19249, International tractors, Serial Range: 501-2999

1шт.

28

383475R1

SHAFT

bail pivot

1шт.

19479R1

PIN,1/4" x 2", Coiled

1шт.

29

384353R91

LINK W/BUSHINGS, sensing, Farmall tractors 501 to 19249, International tractors, Serial Range: 501-2999

1шт.

29

389061R91

LINK W/BUSHINGS, sensing, Farmall tractors 19250 up, International tractors 3000 up

1шт.

30

383486R1

BUSHING

sensing link, front, Farmall tractors 501 to 19249, International tractors, Serial Range: 501-2999

2шт.

30

389063R1

BUSHING

sensing link, front, Farmall tractors 19250 up, International tractors 3000 up

1шт.

31

383487R1

BUSHING

sensing link-rear

2шт.

32

19700R91

FITTING

3/16 drive lub. 45 deg. angle

2шт.

33

384351R1

SPACER

sensing link

1шт.

34

406685R1

PIN,25.4mm OD x 101.6mm L

lower link, also furnish retainer 406687R1, will work for 382194R2

1шт.

179882

PIN

SCREW, 1/2-13 x 1-1/8 hex-hd. cap

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

17/32 x 1-1/16 x .095

1шт.

35

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , Straight 1/4"-28 NPT x .54" lg

2шт.

36

385728R11

BRACKET ASSY, lateral limiter, LH, also order three screws, 469805R1, Farmall tractors 501 to 19249, International tractors, Serial Range: 501-2999

1шт.

469805R1

BOLT,Hex, 5/8" - 11 x 2", Gr 8

SCREW, 5/8-11 x 2 hex-hd. cap

3шт.

37

19994R1

DOWEL,3/4" x 2"

PIN, 3/4 x 2 dowel, Farmall tractors up to serial no. 27010, International tractors up to serial no. 4345

2шт.

38

385729R11

BRACKET ASSY, lateral limiter, RH, also order three screws, 469805R1, Farmall tractors 501 to 19249, International tractors, Serial Range: 501-2999

1шт.

469805R1

BOLT,Hex, 5/8" - 11 x 2", Gr 8

SCREW, 5/8-11 x 2 hex-hd. cap

3шт.

39

385739R1

SUPPORT ASSY.

SUPPORT, lateral limiter, LH, see note A

1шт.

519417R1

HEADED PIN,3/4" x 3 11/16"

PIN, 3/4 x 3-11/16 headed

2шт.

108639

BRACKET

1/4 x 1-1/8 cotter

2шт.

40

385740R1

BRACKET

SUPPORT, lateral limiter, RH, see note A

1шт.

519417R1

HEADED PIN,3/4" x 3 11/16"

PIN, 3/4 x 3-11/16 headed

2шт.

NLS

NO LONGER SERVICED

1/4 x 1-1/8 cotter

2шт.

41

522841R11

PIN

ASSY, quick attachable

2шт.

42

386172R1

BRACKET

lockout, Farmall tractors w/serial no. 19249 and below, International tractors w/serial no. 2999 and below

1шт.

271564

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 5

SCREW, 5/8-11 x 2-1/2 hex-hd. cap

6шт.

43

383492R11

DRAWBAR ASSY, Farmall tractors w/serial no. 19249 and below, International tractors w/serial no. 2999 and below

1шт.

44

389064R1

BRACKET

limiter and drawbar, Farmall tractors 19250 up, International tractors 3000 up

1шт.

469805R1

BOLT,Hex, 5/8" - 11 x 2", Gr 8

SCREW, 5/8-11 x 2 hex-hd. cap, Farmall tractors up to serial no. 27010, International tractors up to serial no. 4345

6шт.

570879R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

SCREW, 5/8-11 x 2-1/4 hex-hd. type 4, Farmall tractors with serial no. 27011 & above, International tractors with serial no. 4346 & above

8шт.

45

389056R92

FRAME ASSY, hitch, Farmall tractors 19250 up, International tractors 3000 up

1шт.

406982R1

BUSHING, hitch ball

1шт.

46

401637R1

STRAP ASSY, bail pivot, Farmall tractors 19250 up, International tractors 3000 up, will work for 389060R11

2шт.

47

406687R1

RETAINER

lower link pin

2шт.

389071R91

SOCKET

PARTS ACCESSORY, two point hitch cross drawbar, consists of two brackets, 386172R1, drawbar, 383492r11 & six screws, 271564

1шт.

390775R92

PACKAGE, two point hitch beam socket reinforcing

1шт.
