Запчасти Case IH 706 (K-05) - DRAWBARS AND HITCHES, HAMMER STRAP, TRACTORS WITH TWO OR THREE POINT HITCH SWINGING DRAWBAR Drawbars & Hitches

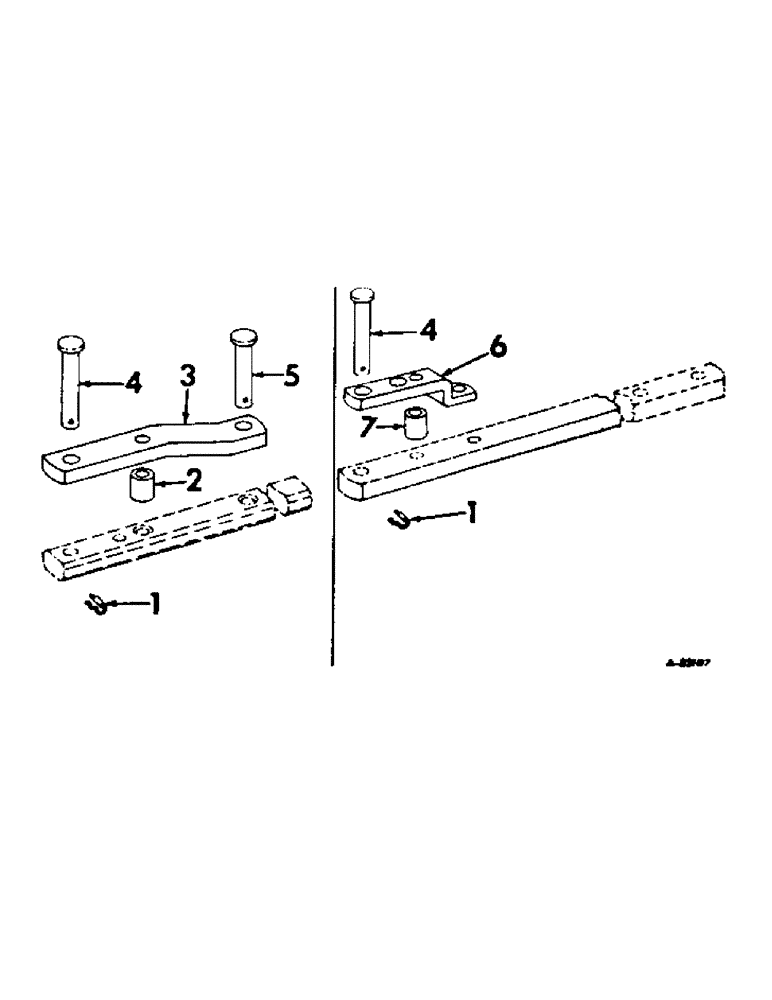

Схема запчастей Case IH 706 - (K-05) - DRAWBARS AND HITCHES, HAMMER STRAP, TRACTORS WITH TWO OR THREE POINT HITCH SWINGING DRAWBAR Drawbars & Hitches
4
1
2
7
5
1
6
3
4

Артикул

Название

Примечание

Количество

389070R92

PARTS ACCESSORY, hammer strap, for tractors w/two or three point hitch w/telescoping drawbar, consists of all parts marked unit A

1шт.

385866R91

PARTS ACCESSORY, hammer strap, for tractors with three point hitch swinging drawbar, consists of all parts marked unit B

1шт.

1

520175R11

AXLE PIN

PIN ASSY, quick attachable cot., units A & B

1шт.

2

389426R1

SPACER

drawbar strap, unit A

1шт.

3

389425R1

STRAP

swinging drawbar, unit A

1шт.

18757R1

BOLT, 1-8 x 5-3/4 hex-hd.

1шт.

220083

NUT,1"-8, G5

1-8 hex

1шт.

280232

BOLT,Hex, 5/8" - 11 x 5 1/2", Gr 5

1шт.

102639

NUT,5/8"-11, G5

1шт.

527427R1

SPACER, hammer strap

1шт.

575810R1

WASHER

21/32 x 1-1/2 x .120

2шт.

4

383140R1

PIN

swinging drawbar clevis, units A & B

1шт.

5

389523R1

PIN

drawbar, unit A

1шт.

520175R1

CLIP

PIN, quick attachable cot.

1шт.

6

58744DA

STRAP, swinging drawbar, unit B

1шт.

102639

NUT,5/8"-11, G5

2шт.

271567

BRACKET,Hex, 5/8" - 11 x 3 1/4", Gr 5

SCREW, 5/8-11 x 3-1/4 hex-hd. cap

1шт.

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

SCREW, 5/8-11 x 4-3/4 hex-hd. cap

1шт.

7

58745D

SPACER

swinging drawbar strap, units A and B

1шт.

Выбрано товаров: 19
