Запчасти Case IH 706 (A-10) - CHASSIS, RADIATOR AND SHEET METAL, PLATFORM EXTENSION, INTERNATIONAL TRACTORS Chassis, Radiator & Sheet Metal

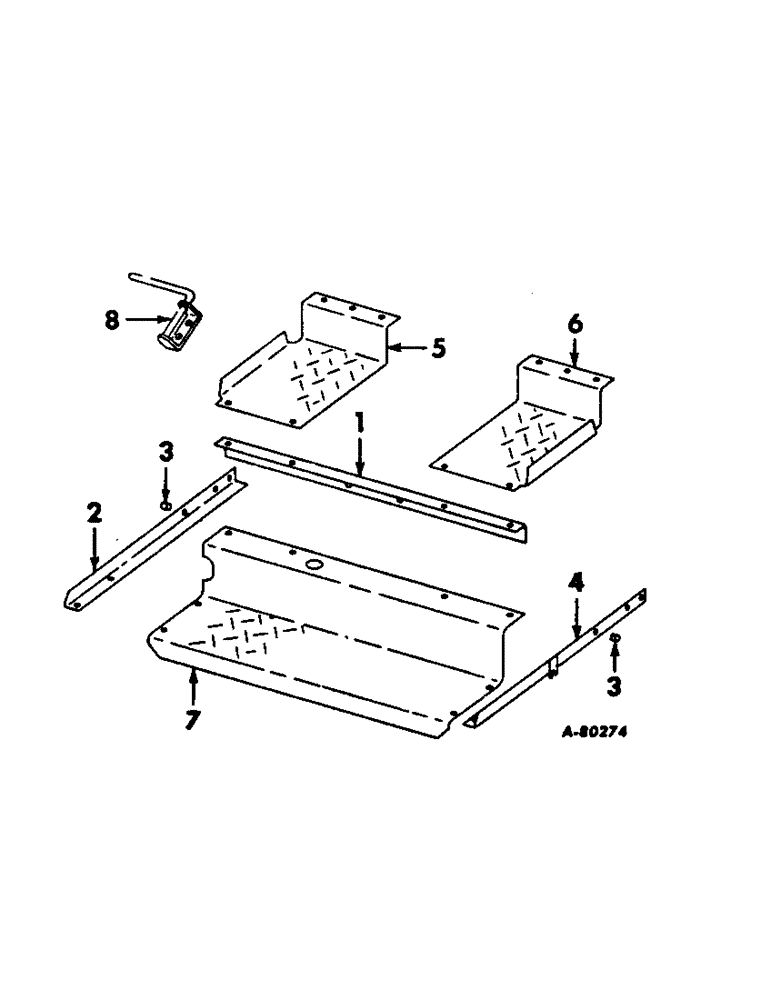

Схема запчастей Case IH 706 - (A-10) - CHASSIS, RADIATOR AND SHEET METAL, PLATFORM EXTENSION, INTERNATIONAL TRACTORS Chassis, Radiator & Sheet Metal
5
7
3
8
6
3
1
2
4

Артикул

Название

Примечание

Количество

387914R91

PARTS ACCESSORY, platform extension, tractors without hitches or over-center clutch

1шт.

1

387903R1

ANGLE, platform extension support

1шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

SCREW, 5/8-11 x 1-1/2 hex-hd cap

2шт.

2

387904R11

ANGLE ASSY, platform support LH

1шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

180129

BOLT,Hex, 3/8" - 16 x 1 7/8"

SCREW, 3/8-16 x 1-7/8 znd hex-hd cap

1шт.

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

SCREW, 3/8-16 x 2 znd hex-hd cap

3шт.

20803R1

WASHER

13/32 x 1 x 11 ga. C-Z

4шт.

5

387908R1

EXTENSION, platform front LH

1шт.

6

687909R1

EXTENSION, platform front RH

1шт.

7

387910R2

EXTENSION, platform rear

1шт.

102635

NUT,3/8"-16, G5

8шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

4шт.

8

387911R11

BRACKET ASSY, handle & light support

1шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

SCREW, 3/8-16 x 7/8 znd hex-hd. cap

1шт.

180125

SCREW,Hex, 3/8" - 16 x 1 3/8", Gr 5

3/8-16 x 1-3/8 znd hex-hd. cap

1шт.

180127

SCREW,Hex, 3/8" - 16 x 1 5/8", Gr 5

3/8-16 x 1-5/8 znd hex-hd. cap

1шт.

20803R1

WASHER

13/32 x 1 x 11 ga. C-Z

2шт.

Выбрано товаров: 20
